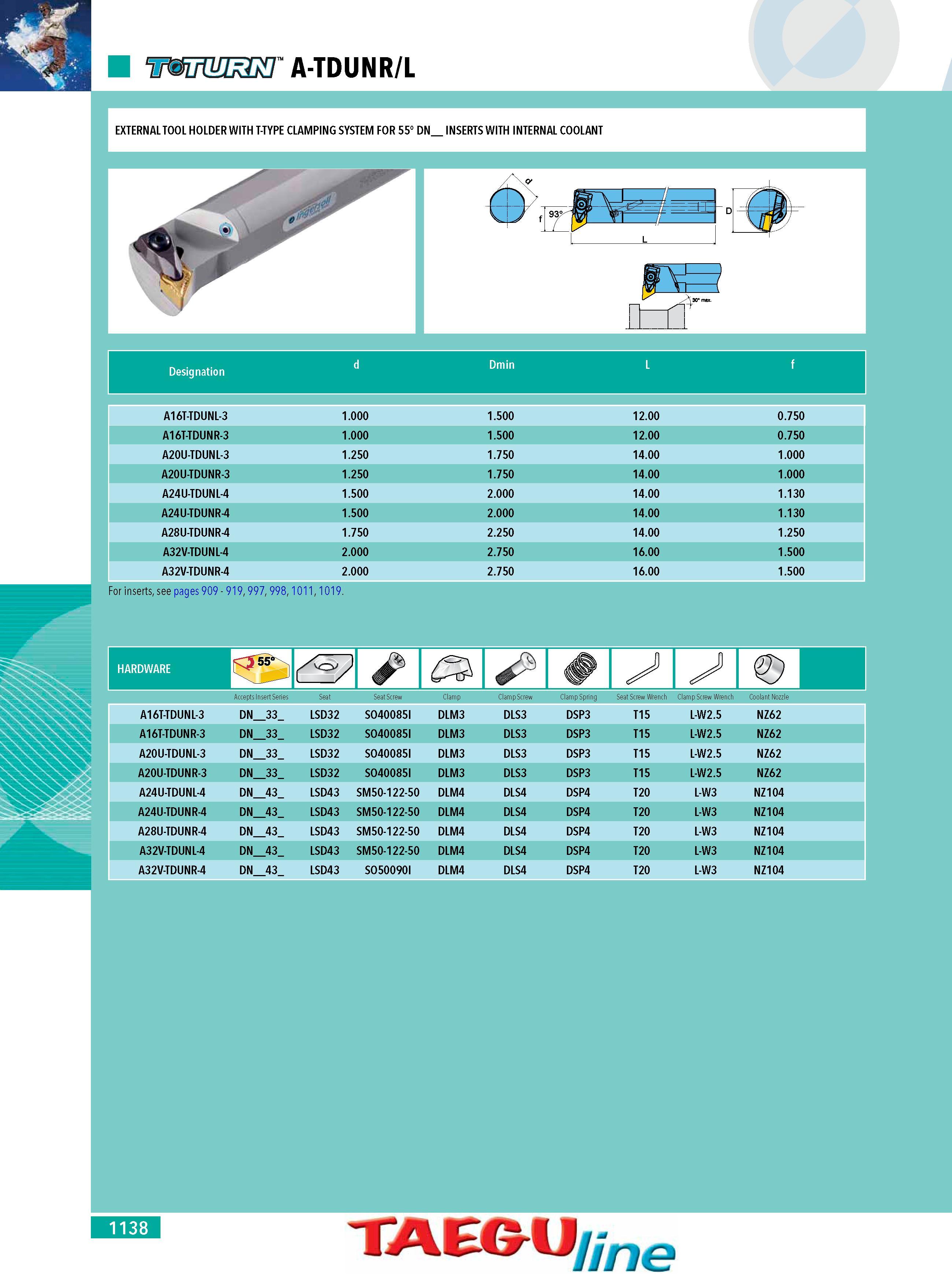

a-tdunr l EXTERNARTOOL HOLDER WITH T-TYNE CLAMNING SYSTEM FOR 55 DN INSERTS WITH INTERNAL COOLANT . d Dmin Designation A16T-TDUNL-3 1.000 1.500 12.00 0.750 A16T-TDUNR-3 1.000 1.500 12.00 0.750 A20U-TDUNL-3 1.250 1.750 14.00 1.000 A20U-TDUNR-3 1.250 1.750 14.00 1.000 A24U-TDUNL-4 1.500 2.000 14.00 1.130 A24U-TDUNR-4 1.500 2.000 14.00 1.130 A28U-TDUNR-4 1.750 2.250 14.00 1.250 A32V-TDUNL-4 2.000 2.750 16.00 1.500 A32V-TDUNR-4 2.000 2.750 16.00 1.500 For inserts see pages 909 - 919 997 998 1011 1019. J Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench Coolant Nozzle A16T-TDUNL-3 DN 33 LSD32 SO40085I DLM3 DLS3 DSN3 T15 L-W2.5 NZ62 A16T-TDUNR-3 DN 33 LSD32 SO40085I DLM3 DLS3 DSN3 T15 L-W2.5 NZ62 A20U-TDUNL-3 DN 33 LSD32 SO40085I DLM3 DLS3 DSN3 T15 L-W2.5 NZ62 A20U-TDUNR-3 DN 33 LSD32 SO40085I DLM3 DLS3 DSN3 T15 L-W2.5 NZ62 A24U-TDUNL-4 DN 43 LSD43 SM50-122-50 DLM4 DLS4 DSN4 T20 L-W3 NZ104 A24U-TDUNR-4 DN 43 LSD43 SM50-122-50 DLM4 DLS4 DSN4 T20 L-W3 NZ104 A28U-TDUNR-4 DN 43 LSD43 SM50-122-50 DLM4 DLS4 DSN4 T20 L-W3 NZ104 A32V-TDUNL-4 DN 43 LSD43 SM50-122-50 DLM4 DLS4 DSN4 T20 L-W3 NZ104 A32V-TDUNR-4 DN 43 LSD43 SO50090I DLM4 DLS4 DSN4 T20 L-W3 NZ104 1138
