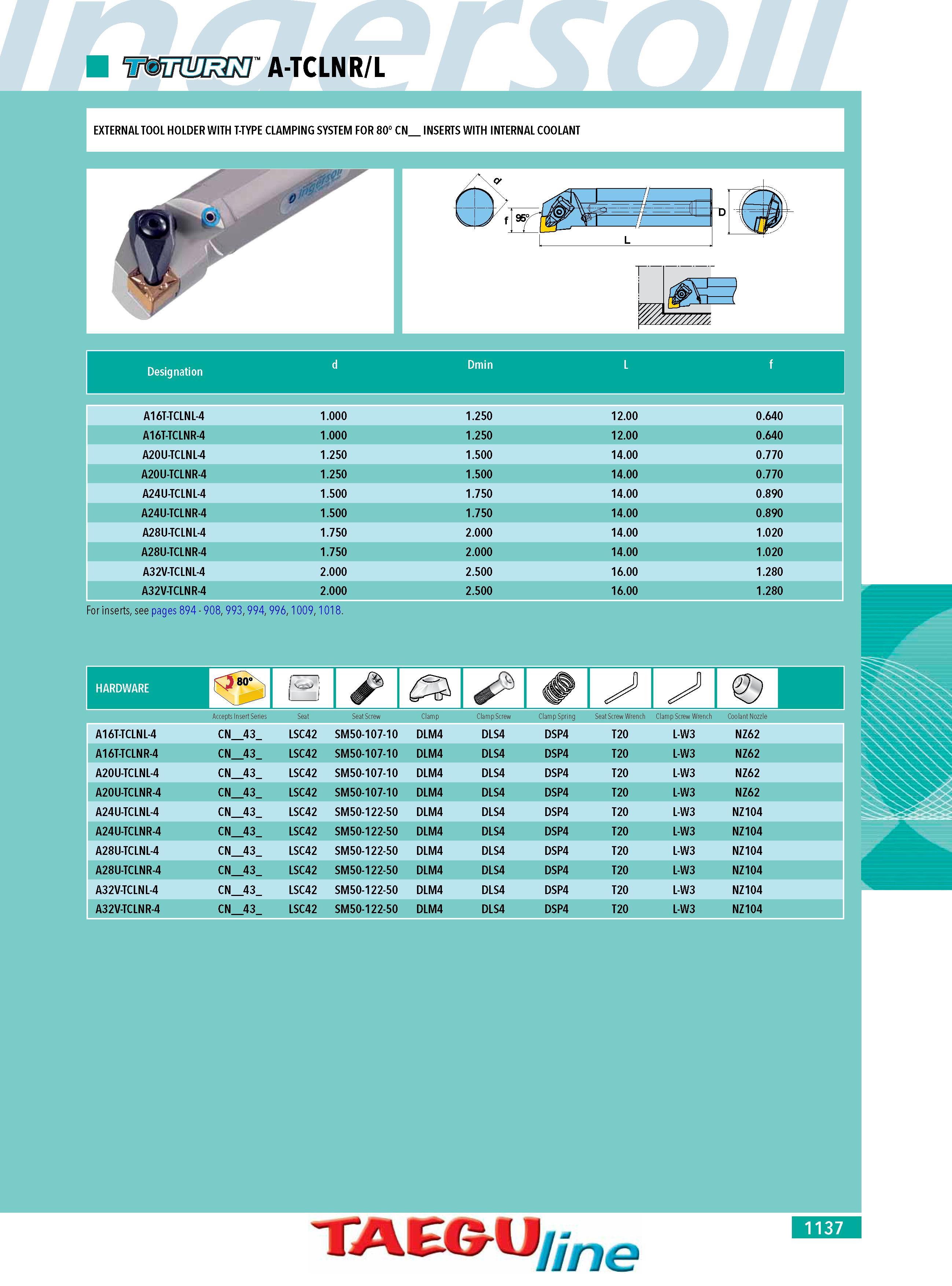

A-TCLNR L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 80 CN INSERTS WITH INTERNAL COOLANT For inserts see pages 894 - 908 993 994 996 1009 1018. Accepts Insert Series Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench Coolant Nozzle A16T-TCLNL-4 1.000 1.250 12.00 0.640 A16T-TCLNR-4 1.000 1.250 12.00 0.640 A20U-TCLNL-4 1.250 1.500 14.00 0.770 A20U-TCLNR-4 1.250 1.500 14.00 0.770 A24U-TCLNL-4 1.500 1.750 14.00 0.890 A24U-TCLNR-4 1.500 1.750 14.00 0.890 A28U-TCLNL-4 1.750 2.000 14.00 1.020 A28U-TCLNR-4 1.750 2.000 14.00 1.020 A32V-TCLNL-4 2.000 2.500 16.00 1.280 A32V-TCLNR-4 2.000 2.500 16.00 1.280 A16T-TCLNL-4 CN 43 LSC42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A16T-TCLNR-4 CN 43 LSC42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A20U-TCLNL-4 CN 43 LSC42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A20U-TCLNR-4 CN 43 LSC42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A24U-TCLNL-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 A24U-TCLNR-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 A28U-TCLNL-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 A28U-TCLNR-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 A32V-TCLNL-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 A32V-TCLNR-4 CN 43 LSC42 SM50-122-50 DLM4 DLS4 DSP4 T20 L-W3 NZ104 TAEGU line 1137
