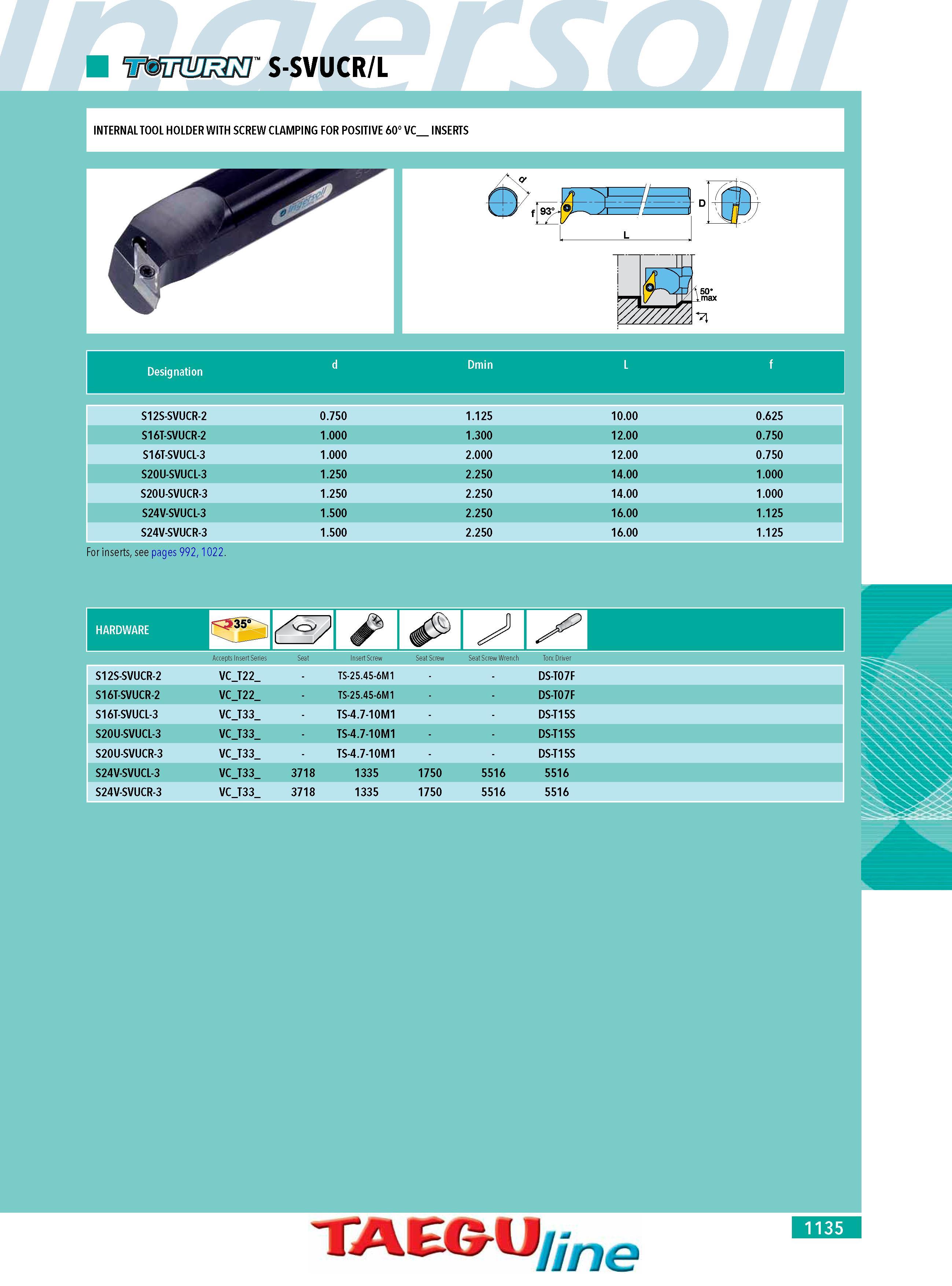

s-svucr INTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 60 VC INSERTS S12S-SVUCR-2 0.750 1.125 10.00 0.625 S16T-SVUCR-2 1.000 1.300 12.00 0.750 S16T-SVUCL-3 1.000 2.000 12.00 0.750 S20U-SVUCL-3 1.250 2.250 14.00 1.000 S20U-SVUCR-3 1.250 2.250 14.00 1.000 S24V-SVUCL-3 1.500 2.250 16.00 1.125 S24V-SVUCR-3 1.500 2.250 16.00 1.125 For inserts see pages 992 1022. X n HARDWARE 535 Accepts Insert Series Seat Screw Wrench S12S-SVUCR-2 VCT22 TS-25.45-6M1 DS-T07F S16T-SVUCR-2 VCT22 TS-25.45-6M1 DS-T07F S16T-SVUCL-3 VCT33 TS-4.7-10M1 DS-T15S S20U-SVUCL-3 VCT33 TS-4.7-10M1 DS-T15S S20U-SVUCR-3 VCT33 TS-4.7-10M1 DS-T15S S24V-SVUCL-3 VCT33 3718 1335 1750 5516 5516 S24V-SVUCR-3 VCT33 3718 1335 1750 5516 5516 lorx Driver SJKf&Uline 1135
