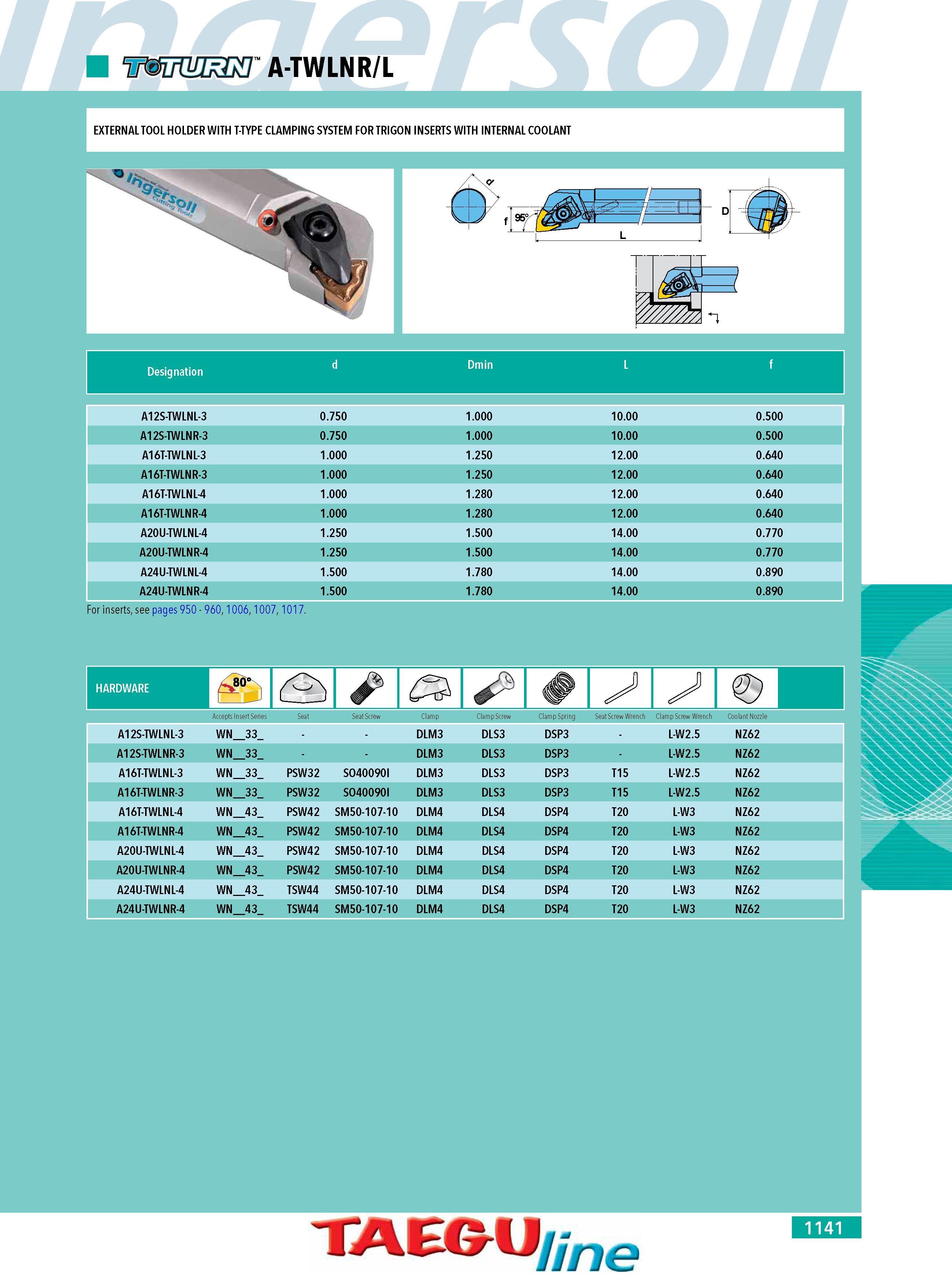

A-TWLNR L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR TRIGON INSERTS WITH INTERNAL COOLANT A12S-TWLNL-3 0.750 1.000 10.00 0.500 A12S-TWLNR-3 0.750 1.000 10.00 0.500 A16T-TWLNL-3 1.000 1.250 12.00 0.640 A16T-TWLNR-3 1.000 1.250 12.00 0.640 A16T-TWLNL-4 1.000 1.280 12.00 0.640 A16T-TWLNR-4 1.000 1.280 12.00 0.640 A20U-TWLNL-4 1.250 1.500 14.00 0.770 A20U-TWLNR-4 1.250 1.500 14.00 0.770 A24U-TWLNL-4 1.500 1.780 14.00 0.890 A24U-TWLNR-4 1.500 1.780 14.00 0.890 For inserts see pages 950 - 960 1006 1007 1017. Accepts Insert Series Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench A12S-TWLNL-3 3 3 1 N W DLM3 DLS3 DSP3 L-W2.5 NZ62 A12S-TWLNR-3 WN 33 DLM3 DLS3 DSP3 L-W2.5 NZ62 A16T-TWLNL-3 WN 33 PSW32 SO40090I DLM3 DLS3 DSP3 T15 L-W2.5 NZ62 A16T-TWLNR-3 WN 33 PSW32 SO40090I DLM3 DLS3 DSP3 T15 L-W2.5 NZ62 A16T-TWLNL-4 WN 43 PSW42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A16T-TWLNR-4 WN 43 PSW42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 H A20U-TWLNL-4 WN 43 PSW42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A20U-TWLNR-4 WN 43 PSW42 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A24U-TWLNL-4 WN 43 TSW44 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 A24U-TWLNR-4 WN 43 TSW44 SM50-107-10 DLM4 DLS4 DSP4 T20 L-W3 NZ62 coolant Nozzle SJKf&Uifne 1141
