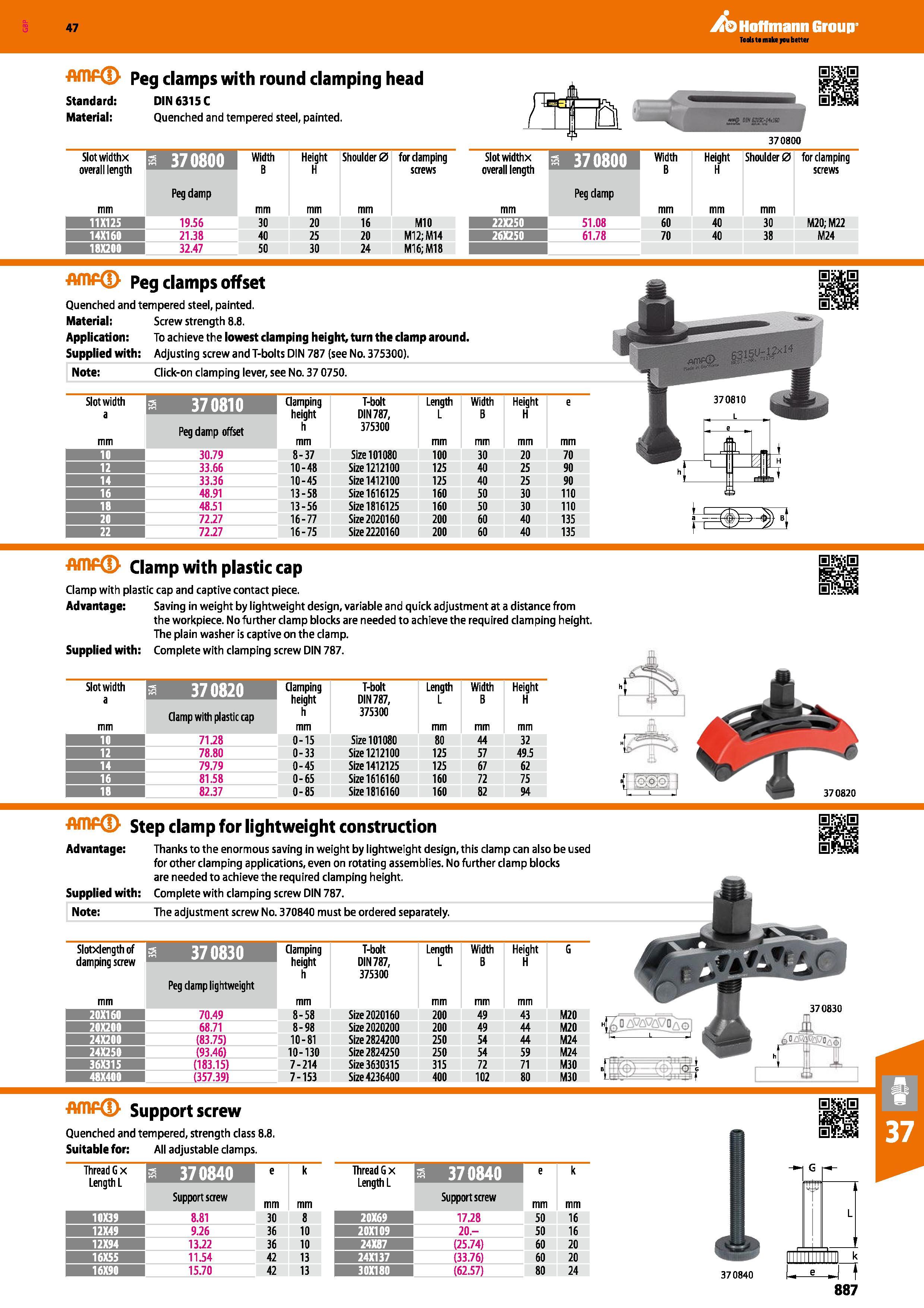

Hoffmann Group Peg clamps with round clamping head Standard: Material: DIN 6315 C Quenched and tempered steel, painted. 370800 Slotwidthx overall length 370800 Width B Height H Shoulder 0 for damping Slotwidthx overall length 3 370800 Width B Height H Shoulder 0 for clamping screws screws mm Peg damp mm Peg damp mm 11X125 19.56 30 20 16 M10 1 22X250 51.08 60 40 30 M20; M22 14X160 21.38 40 25 20 M12;M14 1 26X250 61.78 70 40 38 M24 18X200 32.47 50 30 24 M16; M18 Peg clamps offset Quenched and tempered steel, painted. Material: Screw strength 8.8. Application: To achieve the lowest clamping height, turn the clamp around. Supplied with: Adjusting screw and T-bolts DIN 787 (see No. 375300). Note: Click-on clamping lever, see No. 37 0750. Slot width a mm I 370810 Clamping height h mm T-bolt DIN 787, 375300 Length L mm Width B mm Peg damp offset 10 30.79 8-37 Size 101080 100 30 12 33.66 10-48 Size 1212100 125 40 14 33.36 10-45 Size 1412100 125 40 16 48.91 13-58 Size 1616125 160 50 18 48.51 13-56 Size 1816125 160 50 72.27 16-77 Size 2020160 200 60 1 22 72.27 16-75 Size 2220160 200 60 Height H Clamp with plastic cap Clamp with plastic cap and captive contact piece. Advantage: Saving in weight by lightweight design, variable and quick adjustment at a distance from the workpiece. No further clamp blocks are needed to achieve the required clamping height. The plain washer is captive on the clamp. Supplied with: Complete with clamping screw DIN 787. Slot width a mm I 370820 Clamping height h mm T-bolt DIN 787, 375300 Length L mm Width B mm Height H mm Clamp with plastic cap 10 71.28 0-15 Size 101080 80 44 32 12 78.80 0-33 Size 1212100 125 57 49.5 14 79.79 0-45 Size 1412125 125 67 62 16 81.58 0-65 Size 1616160 160 72 75 18 82.37 0-85 Size 1816160 160 82 94 imp 370820 Step clamp for lightweight construction Advantage: Thanks to the enormous saving in weight by lightweight design, this clamp can also be used for other clamping applications, even on rotating assemblies. No further clamp blocks are needed to achieve the required clamping height. Supplied with: Complete with clamping screw DIN 787. Note: The adjustment screw No. 370840 must be ordered separately. Slotxlengthof damping screw 3 370830 Clamping height h T-bolt DIN 787, 375300 Length L Width B Height H G Peg damp lightweight mm 20X160 70.49 8-58 Size 2020160 200 49 43 M20 20X200 68.71 8-98 Size 2020200 200 49 44 M20 24X200 (83.75) 10-81 Size 2824200 250 54 44 M24 24X250 (93.46) 10-130 Size 2824250 250 54 59 M24 36X315 (183.15) 7-214 Size 3630315 315 72 71 M30 (357.39) 7-153 Size 4236400 400 102 80 M30 Support screw Quenched and tempered, strength class 8.8. Suitable for: All adjustable clamps. Thread G x Length L 3 370840 e k Support screw mm 10X39 8.81 30 8 12X49 9.26 36 10 12X94 13.22 36 10 16X55 11.54 42 13 16X90 15.70 42 13 Thread G x Length L 3 370840 e k Support screw mm 20X69 17.28 50 16 20X109 20.- 50 16 24X87 (25.74) 60 20 24X137 (33.76) 60 20 30X180 (62.57) 80 24 370840 L e -I t 887
