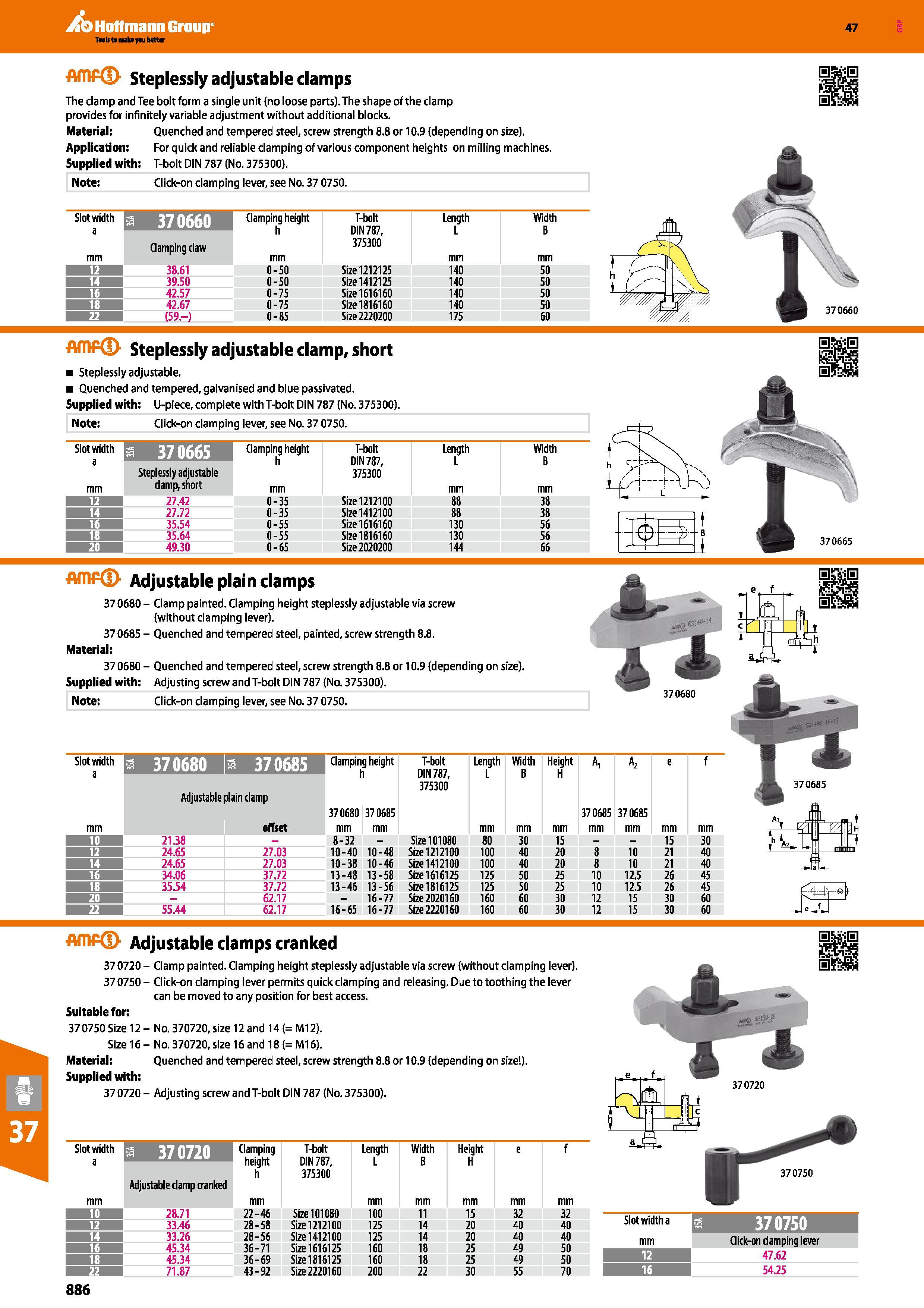

ib Hoffmann Group 47 Steplessly adjustable clamps The clamp and Tee bolt form a single unit (no loose parts). The shape of the clamp provides for infinitely variable adjustment without additional blocks. Material; Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size). Application: For quick and reliable clamping of various component heights on milling machines. Supplied with: T-bolt DIN 787 (No. 375300). Note: Click-on clamping lever, see No. 37 0750. Slot width a mm 3 370660 Clamping claw 12 38.61 14 39.50 16 42.57 18 42.67 22 (59.-) Clamping height h mm 0-50 0-50 0-75 0-75 0-85 T-bolt DIN 787, 375300 Size 1212125 Size 1412125 Size 1616160 Size 1816160 Size 2220200 Length L mm 140 140 140 140 175 Width 50 50 50 50 60 Steplessly adjustable damp, short Steplessly adjustable. Quenched and tempered, galvanised and blue passivated. Supplied with: U-piece, complete with T-bolt DIN 787 (No. 375300). Note: Click-on clamping lever, see No. 37 0750. Slot width a mm Clamping height h mm T-bolt DIN 787, 375300 Length L mm Width B mm Steplessly adjustable damp, short 12 27.42 0-35 Size 1212100 88 38 14 27.72 0-35 Size 1412100 88 38 16 35.54 0-55 Size 1616160 130 56 18 35.64 0-55 Size 1816160 130 56 20 49.30 0-65 Size 2020200 144 66 Adjustable plain clamps 37 0680 - Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever). 37 0685 - Quenched and tempered steel, painted, screw strength 8.8. Material; 37 0680 - Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size). Supplied with: Adjusting screw and T-bolt DIN 787 (No. 375300). Note: Click-on clamping lever, see No. 37 0750. 370680 Slot width a Clamping height h T-bolt DIN 787, 375300 Length L Width B Height H A, a2 e J Adjustable plain clamp 370680 370685 370685 370685 mm offset mm 10 21.38 8-32 - Size 101080 80 30 15 15 30 12 24.65 27.03 10-40 10-48 Size 1212100 100 40 20 8 10 21 40 14 24.65 27.03 10-38 10-46 Size 1412100 100 40 20 8 10 21 40 16 34.06 37.72 13-48 13-58 Size 1616125 125 50 25 10 12.5 26 45 18 35.54 37.72 13-46 13-56 Size 1816125 125 50 25 10 12.5 26 45 20 - 62.17 - 16-77 Size 2020160 160 60 30 12 15 30 60 22 55.44 62.17 16-65 16-77 Size 2220160 160 60 30 12 15 30 60 Adjustable clamps cranked 37 0720 - Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever). 370750- Click-on clamping lever permits quick clamping and releasing. Due to toothing the lever can be moved to any position for best access. Suitable for: 37 0750 Size 12 - No. 370720, Size 12 and 14 (= Ml 2). Size 16 - No. 370720, size 16 and 18 (= M16). Material; Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size ). Supplied with: 37 0720 - Adjusting screw and T-bolt DIN 787 (No. 375300). Clamping T-bolt height DIN 787, Length L Width Height H Adjustable damp cranked 375300 mm 11 15 32 32 14 20 40 40 14 20 40 40 18 25 49 50 18 25 49 50 22 30 55 70 Slot width a mm a 37 0750 Click-on damping lever 12 47.62 16 54.25 370660 370665 mm 22-46 Size 101080 100 28-58 Size 1212100 125 28-56 Size 1412100 125 36-71 Size 1616125 160 36-69 Size 1816125 160 43-92 Size 2220160 200 886
