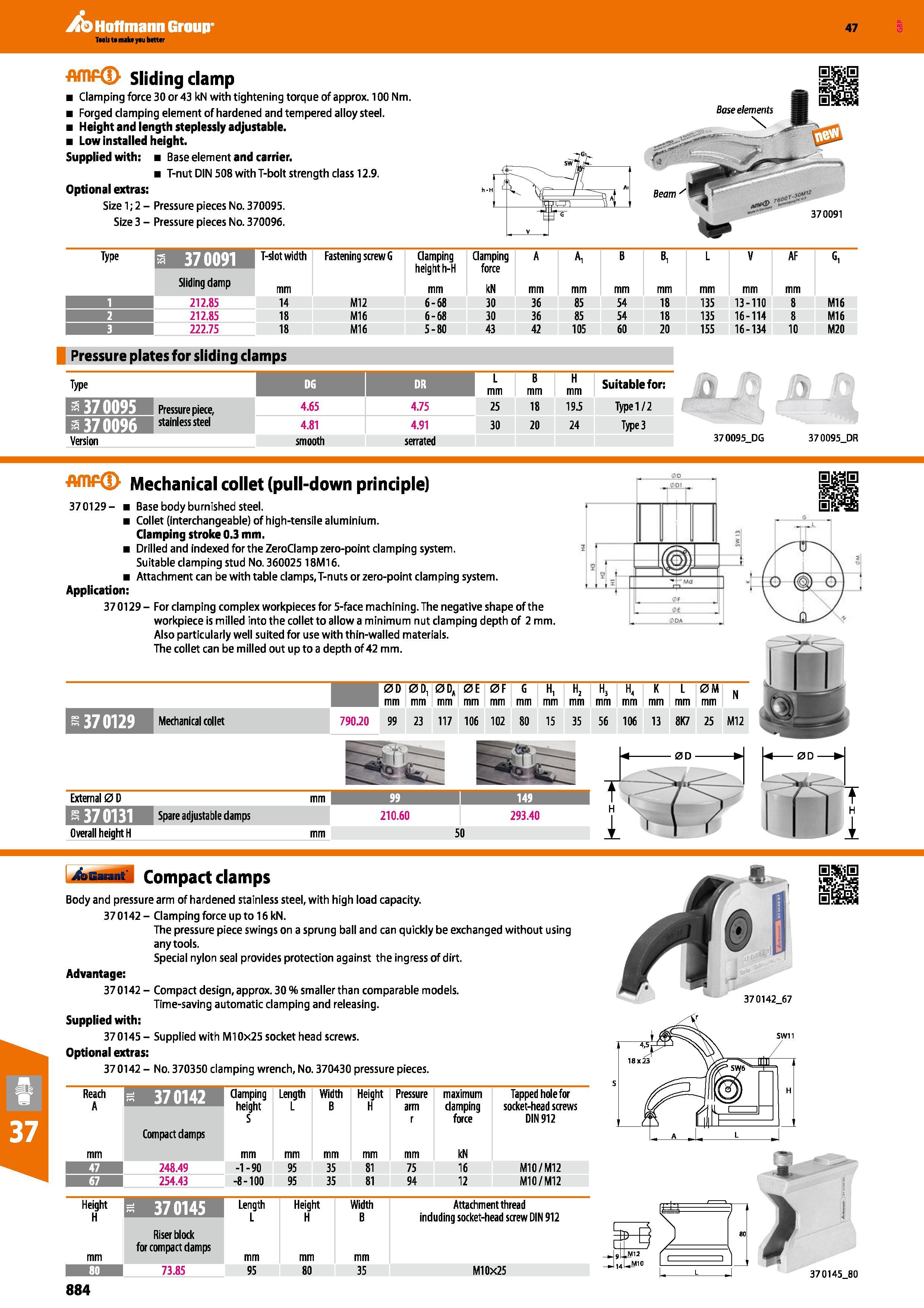

Hoffmann Group 47 Sliding clamp Clamping force 30 or 43 kN with tightening torque of approx. 100 Nm. Forged clamping element of hardened and tempered alloy steel. Height and length steplessly adjustable. Low installed height. Supplied with: Base element and carrier. T-nut DIN 508 with T-bolt strength class 12.9. Optional extras: Size 1; 2 - Pressure pieces No. 370095. Size 3 - Pressure pieces No. 370096. Type a 370091 T-slot width Fastening screw G Clamping height h-H mm Clamping force kN A A, B B, L V AF Sliding damp mm 1 212.85 14 M12 6-68 30 36 85 54 18 135 13-110 8 Ml 6 2 212.85 18 M16 6-68 30 36 85 54 18 135 16-114 8 M16 3 222.75 18 M16 5-80 43 42 105 60 20 155 16-134 10 M20 Pressure plates for sliding clamps Type DG DR mm B mm H mm Suitable for; J J 3 370095 Pressure piece, 4.65 4.75 25 18 19 J Type 1/2 3 370096 stainless steel 4.81 4.91 30 20 24 Type 3 Version smooth serrated 37 0095J 370095 DR Mechanical collet (pull-down principle) 370129- Base body burnished steel. Collet (interchangeable) of high-tensile aluminium. Clamping stroke 0.3 mm. Drilled and indexed for the ZeroClamp zero-point clamping system. Suitable clamping stud No. 360025 18M16. Attachment can be with table clamps,T-nuts or zero-point clamping system. Application: 370129 - For clamping complex workpieces for 5-face machining. The negative shape of the workpiece is milled into the collet to allow a minimum nut clamping depth of 2 mm. Also particularly well suited for use with thin-walled materials. The collet can be milled out up to a depth of 42 mm. „ 0DI 1 3 i j Tf )- m „ . ao i J \ O (g) c V 0D mm 0D, mm 0D, mm 0E mm 0F mm G mm H, mm H, mm H, mm K mm L mm 0M mm N IS 370129 Mechanical collet 790.20 99 23 117 106 102 80 15 35 56 106 13 8K7 25 M12 External 0 D mm 99 I 149 j Spare adjustable damps 210.60 293.40 Overall height H mm 50 4sbm M Compact clamps Body and pressure arm of hardened stainless steel, with high load capacity. 370142- Clamping force up to 16 kN. The pressure piece swings on a sprung ball and can quickly be exchanged without using any tools. Special nylon seal provides protection against the ingress of dirt. Advantage: 37 0142 - Compact design, approx. 30 % smaller than comparable models. Time-saving automatic clamping and releasing. Supplied with: 370145 - Supplied with M10x25 socket head screws. Optional extras: 37 0142 - No. 370350 clamping wrench. No. 370430 pressure pieces. Reach A Clamping height S Length L Width B Height H Pressure maximum clamping force Tapped hole for socket-head screws DIN 912 Compact damps arm r mm kN 47 I 248.49 -1-90 95 35 81 75 16 M10/M12 67 254.43 -8-100 95 35 81 94 12 M10/M12 Height H h 370145 1 Length L Height H Width B Attachment thread induding socket-head screw DIN 912 mm Riser block for compact damps mm 80 I 73.85 95 80 35 M10x25 884 370091 370142_67 370145_80
