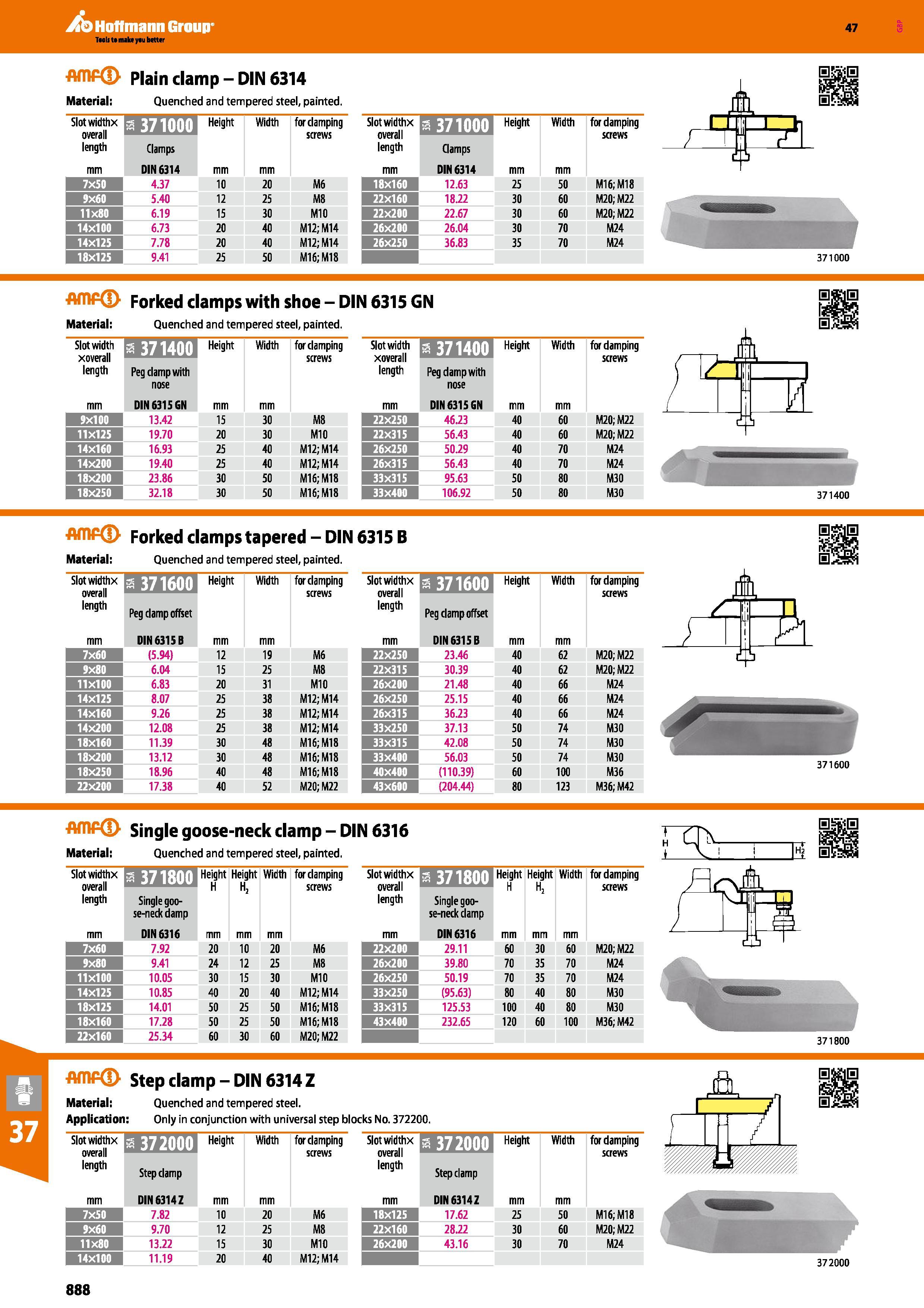

Hoffmann Group 47 AmP(D Plain damp - DIN 6314 Material: Quenched and tempered steel, painted. Slotwidthx overall a&iM'iu Height Width for clamping screws Slotwidthx overall afrii'i'i'i Height Width for damping screws length Clamps length Clamps mm DIN 6314 mm DIN 6314 mm 7x50 4.37 10 20 M6 18x160 12.63 25 50 M16;M18 x60 5.40 12 25 M8 22x160 18.22 30 60 M20; M22 11x80 6.19 15 30 M10 22x200 22.67 30 60 M20; M22 14x100 6.73 20 40 M12; M14 26x200 26.04 30 70 M24 14x125 7.78 20 40 M12; M14 26x250 36.83 35 70 M24 18x125 9.41 25 50 Mlfi; M18 Forked damps with shoe - DIN 6315 GN Material: Quenched and tempered steel, painted. Slot width xoverall length N 371400 Height Width for clamping Slot width xoverall length I a 371400 Height Width for damping Peg clamp with nose screws Pegdampwith nose screws mm DIN 6315 GN mm DIN 6315 GN mm 9x100 13.42 15 30 M8 22X250 46.23 40 60 M20; M22 11x125 19.70 20 30 M10 22X315 56.43 40 60 M20; M22 14x160 16.93 25 40 M12;M14 26x250 50.29 40 70 M24 14x200 19.40 25 40 M12; M14 26x315 56.43 40 70 M24 18x200 23.86 30 50 M16; M18 33x315 95.63 50 80 M30 18x250 32.18 30 50 M16; M18 33x400 106.92 50 80 M30 371000 371400 Forked damps tapered - DIN 6315 B Material: Quenched and tempered steel, painted. Slotwidthx overall length a 371600 Height Width for clamping Slotwidthx overall length a 371600 Height Width for damping Peg damp offset screws Peg damp offset screws mm DIN 6315B mm DIN 6315B mm 7x60 (5.94) 12 19 M6 22x250 23.46 40 62 M20; M22 9x80 6.04 15 25 M8 22x315 30.39 40 62 M20; M22 11x100 6.83 20 31 M10 26x200 21.48 40 66 M24 14x125 8.07 25 38 M12;M14 26x250 25.15 40 66 M24 14x160 9.26 25 38 M12; M14 26x315 36.23 40 66 M24 14x200 12.08 25 38 M12;M14 33x250 37.13 50 74 M30 18x160 11.39 30 48 M16; M18 33x315 42.08 50 74 M30 18x200 13.12 30 48 Mlfi; M18 33x400 56.03 50 74 M30 18x250 18.96 40 48 M16; Ml 8 40x400 (110.39) 60 100 M36 22x200 17.38 40 52 M20; M22 43x600 (204.44) 80 123 M36; M42 371600 Single goose-neck clamp - DIN 6316 Material: Quenched and tempered steel, painted. 371800 Slotwidthx overall length Single goo-se-neckdamp Height Height Width for clamping H H, screws Slotwidthx overall length 371800 Single goo-se-neck clamp Height Height Width for damping H H, screws mm DIN 6316 mm DIN 6316 mm 7X60 7.92 20 10 20 M6 22X200 29.11 60 30 60 M20; M22 9x80 9.41 24 12 25 M8 26x200 39.80 70 35 70 M24 11x100 10.05 30 15 30 M10 26x250 50.19 70 35 70 M24 14x125 10.85 40 20 40 M12; M14 33x250 (95.63) 80 40 80 M30 18x125 14.01 50 25 50 Mlfi; M18 33x315 125.53 100 40 80 M30 18x160 17.28 50 25 50 Mlfi; Ml 8 43x400 232.65 120 60 100 M36; M42 22x160 25.34 60 30 60 M20; M22 371800 Amp step clamp-DIN 6314 Z Material: Application: Quenched and tempered steel. Only in conjunction with universal step blocks No. 372200. Slotwidthx overall length N 372000 Height Width for clamping Slotwidthx overall length la 372000 Height Width for damping Step damp screws Step damp screws mm DIN 6314Z mm DIN6314Z mm 7X50 7.82 10 20 M6 18x125 17.62 25 50 M16;M18 9x60 9.70 12 25 M8 22X160 28.22 30 60 M20; M22 11x80 13.22 15 30 M10 26x200 43.16 30 70 M24 14x100 11.19 20 40 M12;M14 372000 888
