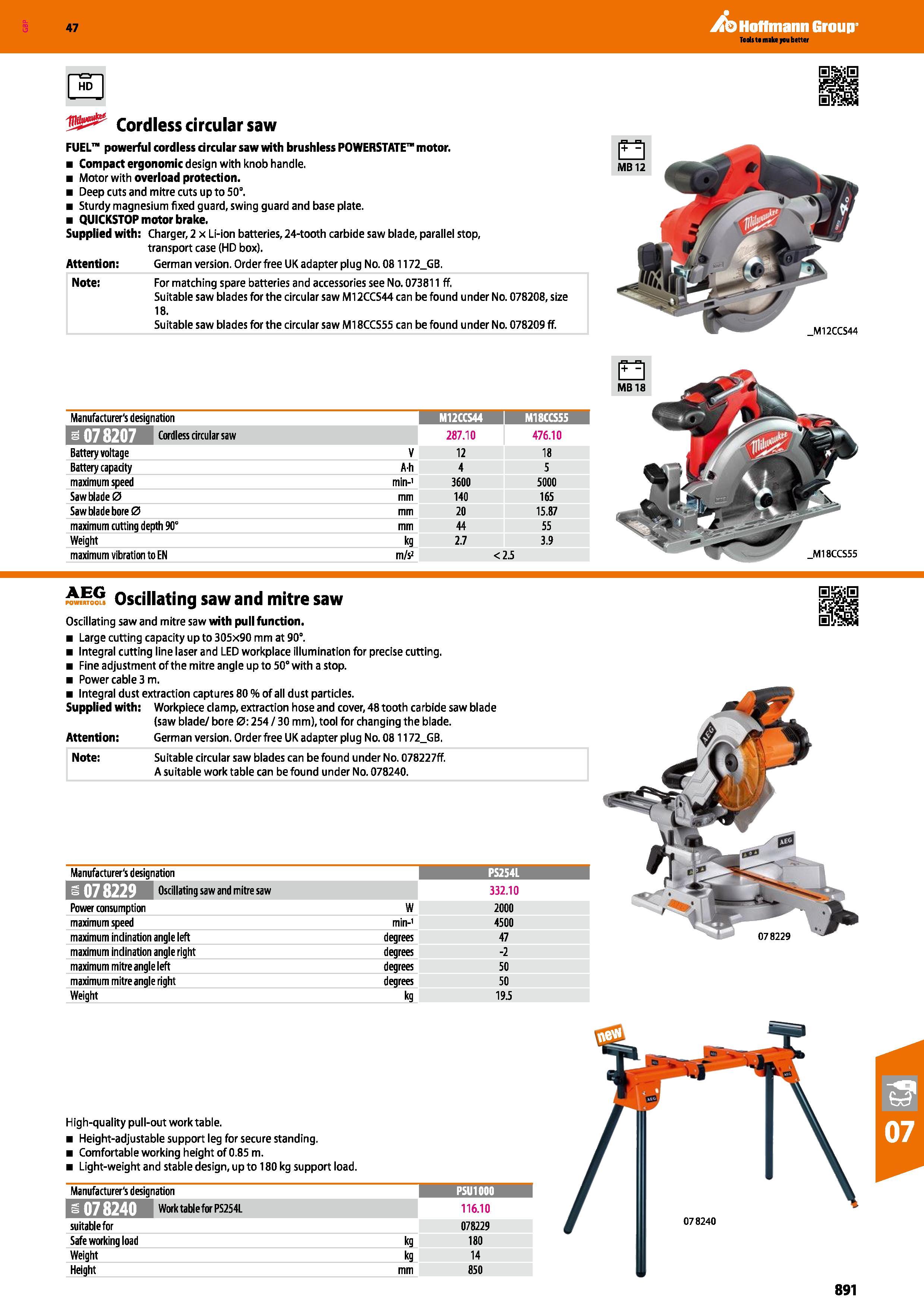

Hoffmann Group 47 128 Cordless circular saw FUEL powerful cordless circular saw with brushless POWERSTATE motor. Compact ergonomic design with knob handle. Motor with overload protection. Deep cuts and mitre cuts up to 50°. Sturdy magnesium fixed guard, swing guard and base plate. QUICKSTOP motor brake. Supplied with: Charger, 2 x Li-ion batteries, 24-tooth carbide saw blade, parallel stop, transport case (HD box). Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For matching spare batteries and accessories see No. 073811 ff. Suitable saw blades for the circular saw Ml 2CCS44 can be found under No. 078208, size 18. Suitable saw blades for the circular saw M18CCS55 can be found under No. 078209 ff. Manufacturer's designation 1 M12CCS44 M18CCS55 I HiTJifTifB Cordless circular saw 287.10 476.10 Battery voltage V 12 18 Battery capacity Ah 4 5 maximum speed min-1 3600 5000 Saw blade 0 mm 140 165 Saw blade bore 0 mm 20 15.87 maximum cutting depth 90° mm 44 55 Weight kg 2.7 3.9 maximum vibration to EN m/s2 <2.5 POWERTOOL9 Oscillating saw and mitre saw Oscillating saw and mitre saw with pull function. Large cutting capacity up to 305x90 mm at 90°. Integral cutting line laser and LED workplace illumination for precise cutting. Fine adjustment of the mitre angle up to 50° with a stop. Power cable 3 m. Integral dust extraction captures 80 % of all dust particles. Supplied with: Workpiece clamp, extraction hose and cover, 48 tooth carbide saw blade (saw blade/ bore 0:254 / 30 mm), tool for changing the blade. Attention: German version. Order free UK adapter plug No. 081172_GB, Note: Suitable circular saw blades can be found under No. 078227ff. A suitable work table can be found under No. 078240. Manufacturer's designation PS254L iiiVi; W1B Oscillatina saw and mitre saw 332.10 Power consumption W 2000 maximum speed min-1 4500 maximum inclination angle left degrees 47 maximum inclination angle right degrees -2 maximum mitre angle left degrees 50 maximum mitre angle right degrees 50 Weight kg 19.5 High-quality pull-out work table. Height-adjustable support leg for secure standing. Comfortable working height of 0.85 m. Light-weight and stable design, up to 180 kg support load. Manufacturer's designation PSU1000 I Work table for PS254L 116.10 suitable for 078229 Safe working load kg 180 Weight kg 14 Height mm 850 MB 12 _M12CCS44 £3 MB 18 _M18CCS55
