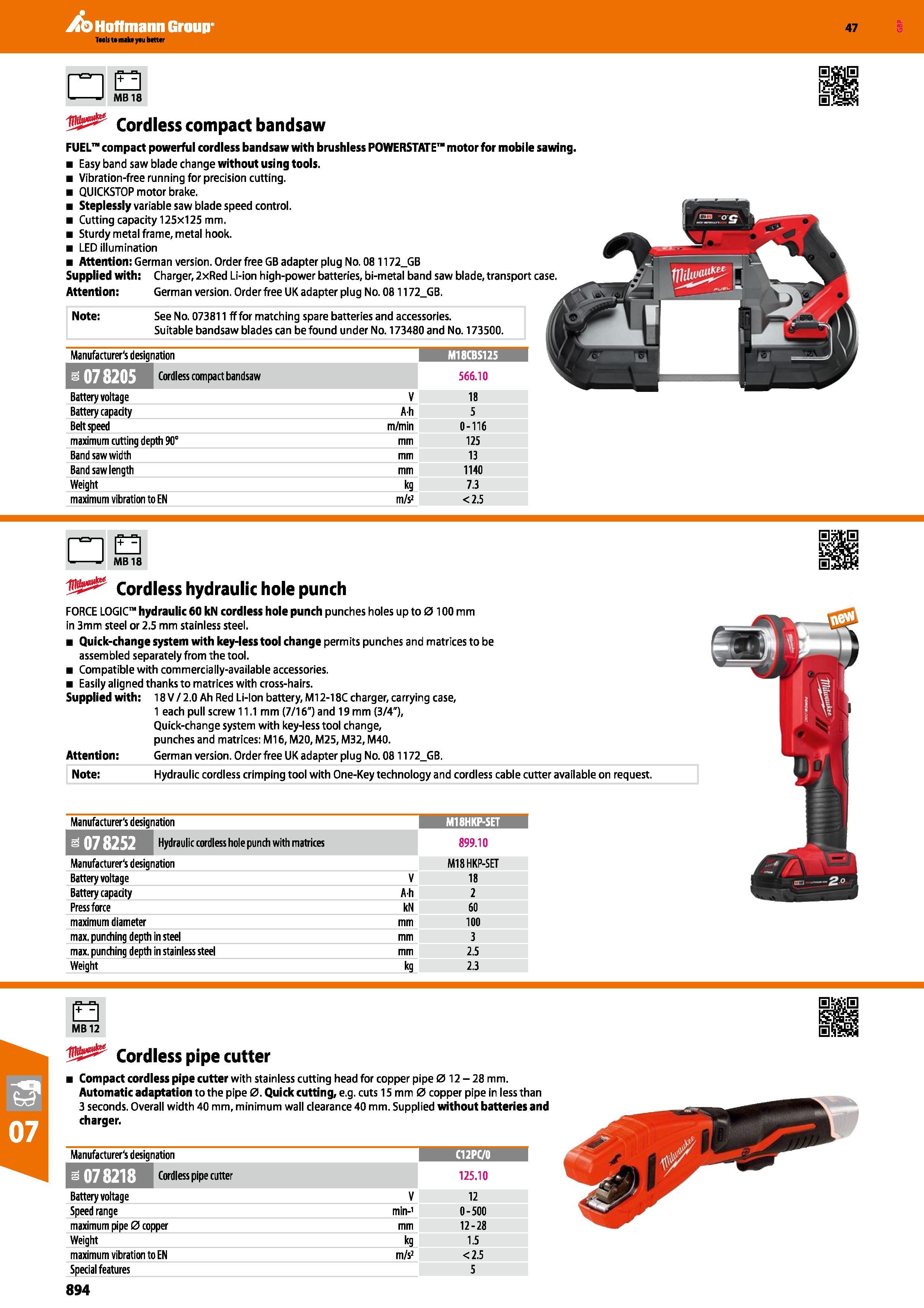

Hoffmann Group 47 D 1 J MB 18 12 Cordless compact bandsaw FUEL compact powerful cordless bandsaw with brushless POWERSTATE motor for mobi le sawing, Easy band saw blade change without using tools. Vibration-free running for precision cutting. QUICKSTOP motor brake. Steplessly variable saw blade speed control. Cutting capacity 125x125 mm. Sturdy metal frame, metal hook. LED illumination Attention: German version. Order free GB adapter plug No. 08 1172_GB Supplied with: Charger, 2xRed Li-ion high-power batteries, bi-metal band saw blade, transport case. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: See No. 073811 ff for matching spare batteries and accessories. Suitable bandsaw blades can be found under No. 173480 and No. 173500. Manufacturer's designation M18CBS125 1 Cordless compact bandsaw 566.10 Battery voltage V 18 Battery capacity Ah 5 Belt speed m/min 0-116 maximum cutting depth 90° mm 125 Band saw width mm 13 Band saw length mm 1140 Weight kg 7.3 maximum vibration to EN m/s2 <2.5 D 1 J MB 18 Cordless hydraulic hole punch FORCE LOGIC hydraulic 60 kN cordless hole punch punches holes up to 0100 mm in 3mm steel or 2.5 mm stainless steel. Quick-change system with key-less tool change permits punches and matrices to be assembled separately from the tool. Compatible with commercially-available accessories. Easily aligned thanks to matrices with cross-hairs. Supplied with: 18 V / 2.0 Ah Red Li-Ion battery, Ml 2-18C charger, carrying case, 1 each pull screw 11.1 mm (7/16") and 19 mm (3/4"), Quick-change system with key-less tool change, punches and matrices: M16, M20, M25, M32, M40. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: Hydraulic cordless crimping tool with One-Key technology and cordless cable cutter available on request. Manufacturer's designation M18HKP-SET j Hydraulic cordless hole punch with matrices 899.10 Manufacturer's designation M18HKP-SET Battery voltage V 18 Battery capacity Ah 2 Press force kN 60 maximum diameter mm 100 max. punching depth in steel mm 3 max. punching depth in stainless steel mm 2.5 Weight kg 2.3 £3 EME MB 12 Sslsw 2 Cordless pipe cutter Compact cordless pipe cutter with stainless cutting head for copper pipe 0 12 - 28 mm. Automatic adaptation to the pipe 0. Quick cutting, e.g. cuts 15 mm 0 copper pipe in less than 3 seconds. Overall width 40 mm, minimum wall clearance 40 mm. Supplied without batteries and charger. Manufacturer's designation C12PC/0 Cordless pipe cutter 125.10 Battery voltage V 12 Speed range min-1 0-500 maximum pipe 0 copper mm 12-28 Weight kg 1.5 maximum vibration to EN m/s2 <2.5 Special features 5 894
