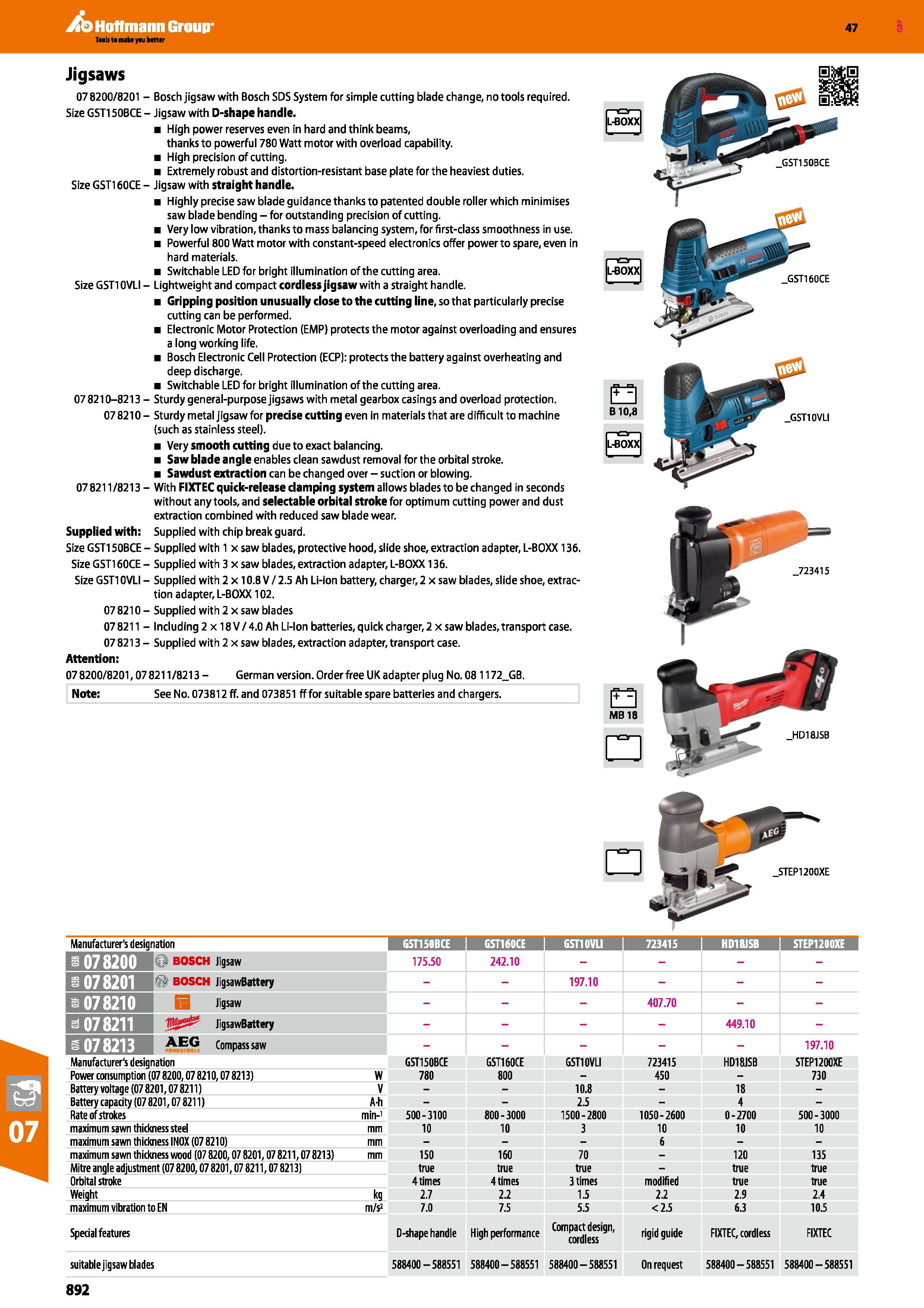

Jigsaws 07 8200/8201 - Bosch jigsaw with Bosch SDS System for simple cutting blade change, no tools required. Size GST1SOBCE - Jigsaw with D-shape handle. High power reserves even in hard and think beams, thanks to powerful 780 Watt motor with overload capability. High precision of cutting, Extremely robust and distortion-resistant base plate for the heaviest duties. Size GST160CE - Jigsaw with straight handle. Highly precise saw blade guidance thanks to patented double roller which minimises saw blade bending - for outstanding precision of cutting. Very low vibration, thanks to mass balancing system, for first-class smoothness in use. Powerful 800 Watt motor with constant-speed electronics offer power to spare, even in hard materials. Switchable LED for bright illumination of the cutting area. Size GST10VLI - Lightweight and compact cordless jigsaw with a straight handle. Gripping position unusually close to the cutting line, so that particularly precise cutting can be performed. Electronic Motor Protection (EMP) protects the motor against overloading and ensures a long working life. Bosch Electronic Cell Protection (ECP): protects the battery against overheating and deep discharge. Switchable LED for bright illumination of the cutting area. 07 8210-8213 - Sturdy general-purpose jigsaws with metal gearbox casings and overload protection. 078210 - Sturdy metal jigsaw for precise cutting even in materials that are difficult to machine (such as stainless steel). Very smooth cutting due to exact balancing. Saw blade angle enables clean sawdust removal for the orbital stroke. Sawdust extraction can be changed over - suction or blowing. 078211/8213 - With FIXTEC quick-release clamping system allows blades to be changed in seconds without any tools, and selectable orbital stroke for optimum cutting power and dust extraction combined with reduced saw blade wear. Supplied with: Supplied with chip break guard. Size GST150BCE - Supplied with 1 x saw blades, protective hood, slide shoe, extraction adapter, L-BOXX136. Size GST160CE - Supplied with 3 x saw blades, extraction adapter, L-BOXX 136. Size GST10VLI - Supplied with 2 x 10.8 V / 2.5 Ah Li-ion battery, charger, 2 x saw blades, slide shoe, extraction adapter, L-BOXX 102. 078210- Supplied with 2 x saw blades 078211 - Including 2 x 18 V/4.0 Ah Li-Ion batteries, quick charger, 2 x saw blades, transport case. 07 8213 - Supplied with 2 x saw blades, extraction adapter, transport case. Attention: 078200/8201,078211/8213 - German version. Order free UK adapter plug No. 081172_GB. Note: See No. 073812 ff. and 073851 ff for suitable spare batteries and chargers. B 10,8 D L-BOXX MB 18 078200 078201 078210 078211 078213 Manufacturer's designation 9> BOSCH jigsaw 9> BOSCH JigsawBattery Jigsaw IfljlgSlS JigsawBattery AEG compass saw Manufacturer's designation Power consumption (07 8200,07 8210,07 8213) Battery voltage (07 8201,07 8211) Battery capacity (07 8201,07 8211) Rate of strokes maximum sawn thickness steel maximum sawn thickness IN0X (07 8210) maximum sawn thickness wood (07 8200,07 8201,07 8211,07 8213) Mitre angle adjustment (07 8200,07 8201,07 8211,07 8213) Orbital stroke Weight maximum vibration to EN Special features suitable jigsaw blades GST150BCE GST160CE i GST10VLI i 723415 HD18ISB I STEP1200XE 175.50 242.10 197.10 407.70 449.10 197.10 GST150BCE GST160CE GST10VLI 723415 HD18JSB STEP1200XE W 780 800 - 450 - 730 V 10.8 - 18 - A-h 2.5 - 4 - min-1 500 - 3100 800-3000 1500-2800 1050-2600 0-2700 500-3000 mm 10 10 3 10 10 10 mm 6 mm 150 160 70 - 120 135 true true true - true true 4 times 4 times 3 times modified true true kg 2.7 2.2 1i 2.2 2.9 2.4 m/s2 7.0 7.5 5.5 <2.5 6.3 10.5 D-shape handle High performance Compact design, cordless rigid guide FIXTEC, cordless FIXTEC 588400 - 588551 588400 - 588551 588400 - 588551 On request 588400 - 588551 588400 - 588551 Hoffmann Group GST150BCE _GST160CE _GST10VLI HD18JSB STEP1200XE 892
