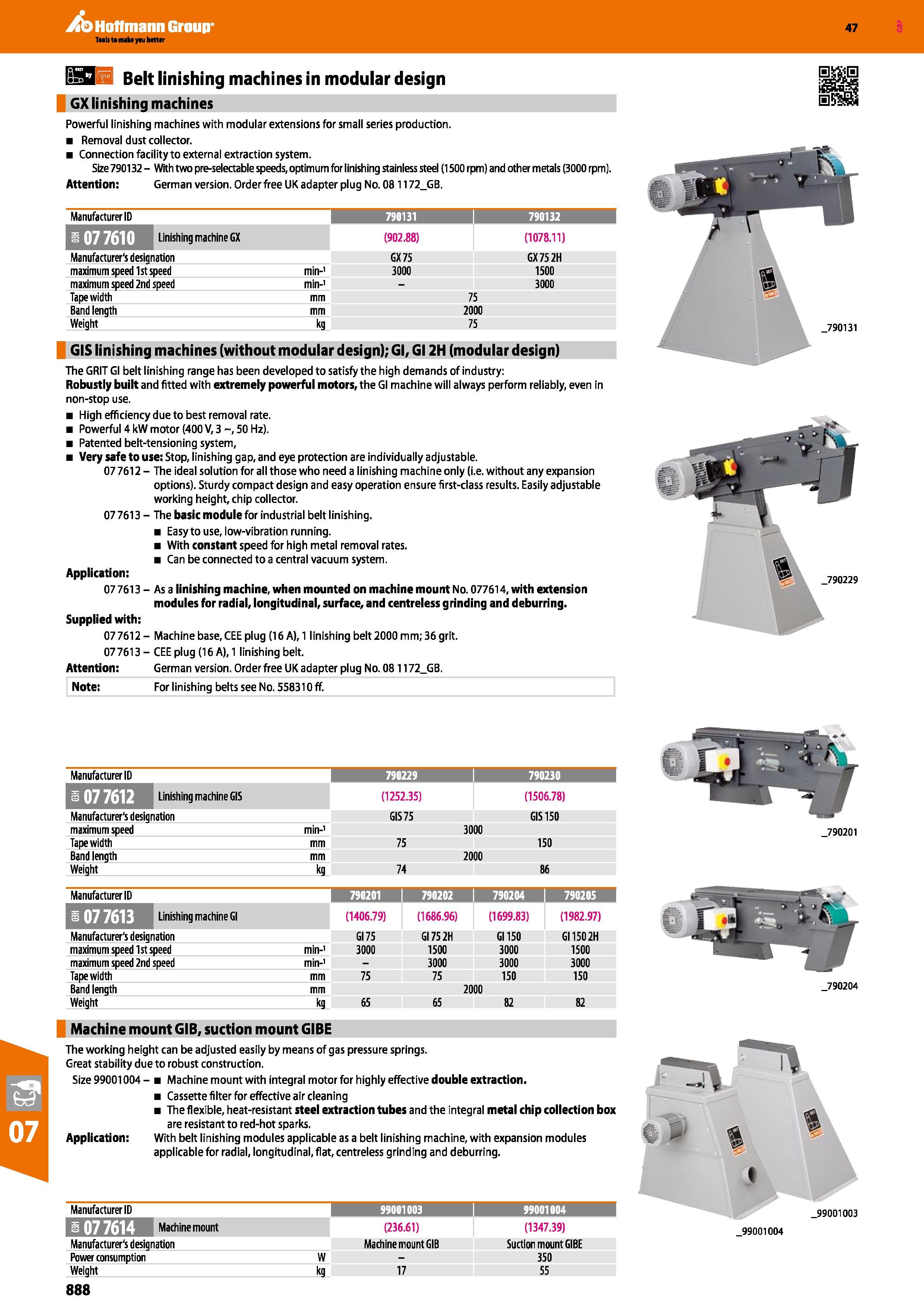

Hoffmann Group 47 iisna Belt linishing machines in modular design GX linishing machines Powerful linishing machines with modular extensions for small series production. Removal dust collector. Connection facility to external extraction system. Size 790132 - With two pre-selectable speeds, optimum for linishing stainless steel (1500 rpm) and other metals (3000 rpm). Attention: German version. Order free UK adapter plug No. 081172_GB. Manufacturer ID 790131 I 790132 Linishing machine GX (902.88) (1078.11) Manufacturer's designation GX75 GX75 2H maximum speed 1st speed min-1 3000 1500 maximum speed 2nd speed min-1 - 3000 Tapewidth Band length Weight mm kg 75 2000 75 GIS linishing machines (without modular design); Gl, Gl 2H (modular design) The GRIT Gl belt linishing range has been developed to satisfy the high demands of industry: Robustly built and fitted with extremely powerful motors, the Gl machine will always perform reliably, even in non-stop use. High efficiency due to best removal rate. Powerful 4 kW motor (400 V, 3 , 50 Hz). Patented belt-tensioning system, Very safe to use: Stop, linishing gap, and eye protection are individually adjustable. 077612 - The ideal solution for all those who need a linishing machine only (i.e. without any expansion options). Sturdy compact design and easy operation ensure first-class results. Easily adjustable working height, chip collector. 07 7613 - The basic module for industrial belt linishing. Easy to use, low-vibration running. With constant speed for high metal removal rates. Can be connected to a central vacuum system. Application: 07 7613 - As a linishing machine, when mounted on machine mount No. 077614, with extension modules for radial, longitudinal, surface, and centreless grinding and deburring. Supplied with: 077612- Machine base, CEE plug (16 A), 1 linishing belt 2000 mm; 36 grit. 077613 - CEE plug (16 A), 1 linishing belt. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: Forlinishing belts see No. 55831 Off. Manufacturer ID 790229 790230 077612 Linishing machine GIS (1252.35) (1506.78) j maximum speed min-1 3000 Tapewidth mm 75 150 Band length mm 2000 Weight kg 74 86 Manufacturer ID 1 790201 790202 1 790204 I 790205 Linishing machine Gl (1406.79) (1686.96) (1699.83) (1982.97) Manufacturer's designation GI75 GI752H Gl 150 GI1502H maximum speed 1st speed min-1 3000 1500 3000 1500 maximum speed 2nd speed min-1 - 3000 3000 3000 Tapewidth mm 75 75 150 150 Band length mm 2000 Weight kg 65 65 82 82 Machine mount GIB, suction mount GIBE The working height can be adjusted easily by means of gas pressure springs. Great stability due to robust construction. Size 99001004 - Machine mount with integral motor for highly effective double extraction. Cassette filter for effective air cleaning The flexible, heat-resistant steel extraction tubes and the integral metal chip collection box are resistant to red-hot sparks. Application: With belt linishing modules applicable as a belt linishing machine, with expansion modules applicable for radial, longitudinal, flat, centreless grinding and deburring. Manufacturer ID 99001003 99001004 i 1107 7614 (236.61) (1347.39) Manufacturer's designation Machine mount GIB Suction mount GIBE Power consumption W - 350 Weight kg 17 55 _99001003 99001004 _790131 790229 _790201
