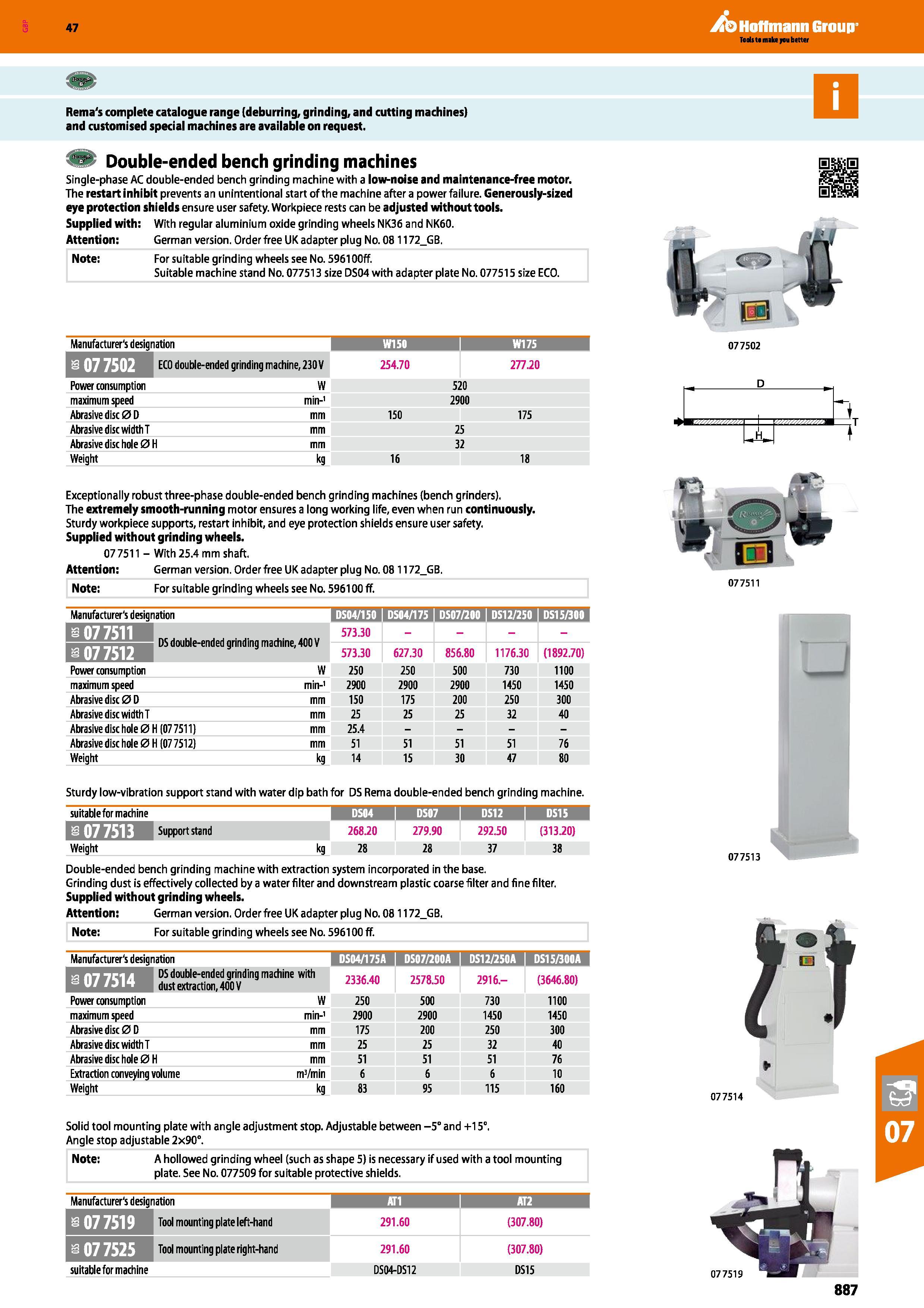

Hoffmann Group 47 Rema's complete catalogue range (deburring, grinding, and cutting machines) and customised special machines are available on request. Double-ended bench grinding machines Single-phase AC double-ended bench grinding machine with a low-noise and maintenance-free motor. The restart inhibit prevents an unintentional start of the machine after a power failure. Generously-sized eye protection shields ensure user safety. Workpiece rests can be adjusted without tools. Supplied with: With regular aluminium oxide grinding wheels NK36 and IMK60. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For suitable grinding wheels see No. 5961 OOff. Suitable machine stand No. 077513 size DS04 with adapter plate No. 077515 size ECO. Manufacturer's designation W150 I W175 j ECO double-ended grinding machine, 230V 254.70 277.20 Power consumption W 520 maximum speed min-1 2900 Abrasive disc 0D mm 150 175 Abrasive disc width T mm 25 Abrasive disc hole 0H mm 32 Weight kg 16 18 077502 Exceptionally robust three-phase double-ended bench grinding machines (bench grinders). The extremely smooth-running motor ensures a long working life, even when run continuously. Sturdy workpiece supports, restart inhibit, and eye protection shields ensure user safety. Supplied without grinding wheels. 077511 - With 25.4 mm shaft. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For suitable grinding wheels see No. 596100 ff. Manufacturer's designation DS04/150 1 DS04/175 I DS07/200 1 DS12/250 1 DS15/300 I 07 7511 jnn w 573.30 - 077512 ujuuuuie-enudu tjimuuitj mauiine, tuu v 573.30 627.30 856.80 1176.30 (1892.70) Power consumption w 250 250 500 730 1100 maximum speed min-1 2900 2900 2900 1450 1450 Abrasive disc 0D mm 150 175 200 250 300 Abrasive disc width T mm 25 25 25 32 40 Abrasive disc hole 0 H 07 7511 mm 25.4 - Abrasive disc hole 0 H (07 7512) mm 51 51 51 51 76 Weight kg 14 15 30 47 80 077511 Sturdy low-vibration support stand with water dip bath for DS Rem a double-ended bench grinding machine. suitable for machine 1 DS04 DS07 DS12 DS15 07 7513 268.20 279.90 292.50 (313.20) Weight kg 28 28 37 38 Double-ended bench grinding machine with extraction system incorporated in the base. Grinding dust is effectively collected by a water filter and downstream plastic coarse filter and fine filter. Supplied without grinding wheels. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For suitable grinding wheels see No. 596100 ff. Manufacturer's designation 1 DS04/175A I DS07/200A I DS12/250A 1 DS15/300A DS double-ended grinding machine with dust extraction, 400 V 2336.40 2578.50 2916.- (3646.80) Power consumption W 250 500 730 1100 maximum speed min-1 2900 2900 1450 1450 Abrasive disc 0D mm 175 200 250 300 Abrasive disc width T mm 25 25 32 40 Abrasive disc hole 0H mm 51 51 51 76 Extraction conveying volume mVmin 6 6 6 10 Weight kg 83 95 115 160 077513 077514 Solid tool mounting plate with angle adjustment stop. Adjustable between -5° and +15°. Angle stop adjustable 2x90°. Note: A hollowed grinding wheel (such as shape 5) is necessary if used with a tool mounting plate. See No. 077509 for suitable protective shields. Manufacturer's designation I ATI i AT2 B 07 7519 Tool mounting plate left-hand 291.60 (307.80) 3 077525 Tool mounting plate right-hand 291.60 (307.80) suitable for machine DS04-DS12 DS15 077519 887
