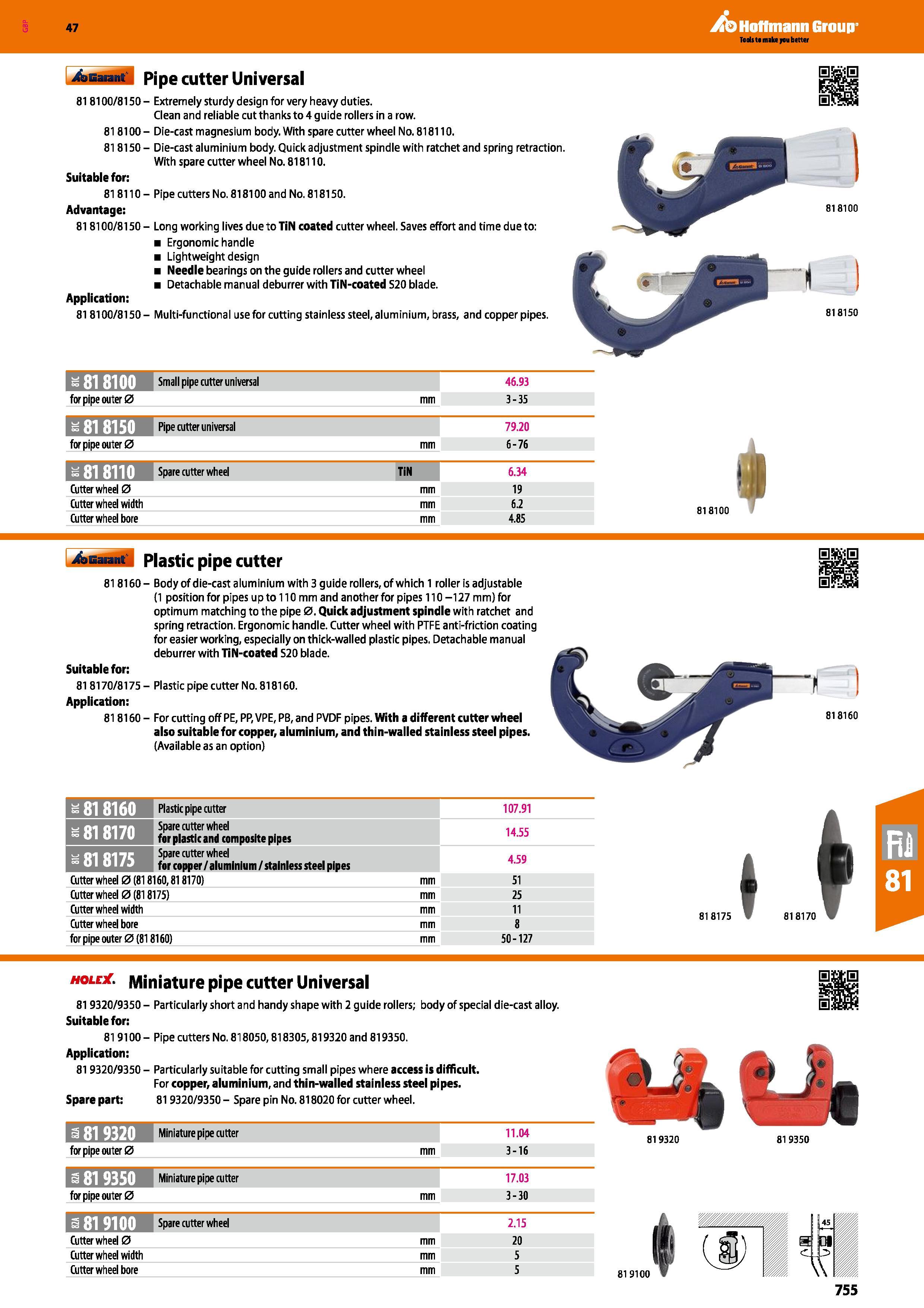

Hoffmann Group 47 4asa iA Pipe cutter Universal 81 8100/8150- Extremely sturdy design for very heavy duties. Clean and reliable cut thanks to 4 guide rollers in a row. 818100 - Die-cast magnesium body. With spare cutter wheel No. 818110. 818150 - Die-cast aluminium body. Quick adjustment spindle with ratchet and spring retraction. With spare cutter wheel No. 818110. Suitable for: 818110- Pipe cutters No. 818100 and No. 818150. Advantage: 818100/8150 - Long working lives due to TiN coated cutter wheel. Saves effort and time due to: Ergonomic handle Lightweight design Needle bearings on the guide rollers and cutter wheel Detachable manual deburrer with TiN-coated S20 blade. Application: 81 8100/8150 - Multi-functional use for cutting stainless steel, aluminium, brass, and copper pipes. 1818100 for pipe outer 0 1818150 for pipe outer 0 1818110 Cutter wheel 0 Cutter wheel width Cutter wheel bore Small pipe cutter universal 46.93 3-35 Pipe cutter universal 79.20 6-76 Spare cutter wheel TiN 6.34 mm 19 V mm 6.2 818100 mm 4.85 Plastic pipe cutter 818160- Body of die-cast aluminium with 3 guide rollers, of which 1 roller is adjustable (1 position for pipes up to 110 mm and another for pipes 110 -127 mm) for optimum matching to the pipe 0. Quick adjustment spindle with ratchet and spring retraction. Ergonomic handle. Cutter wheel with PTFE anti-friction coating for easier working, especially on thick-walled plastic pipes. Detachable manual deburrer with TiN-coated S20 blade. Suitable for: 818170/8175 - Plastic pipe cutter No. 818160. Application: 818160- For cutting off PE, PP,VPE, PB,and PVDF pipes. With a different cutter wheel also suitable for copper, aluminium, and thin-walled stainless steel pipes. (Available as an option) 818160 Plastic pipe cutter 107.91 s 818170 Spare cutter wheel for plastic and composite pipes 14.55 = 818175 Spare cutter wheel for copper/aluminium/stainless steel pipes 4.59 Cutter wheel 0(818160,818170) Cutter wheel 0 (818175) Cutter wheel width Cutter wheel bore for pipe outer 0(818160) mm 51 25 11 8 50-127 818175 ♦ 818170 hole . Miniature pipe cutter Universal 819320/9350 - Particularly short and handy shape with 2 guide rollers; body of special die-cast alloy. Suitable for: 819100 - Pipe cutters No. 818050,818305,819320 and 819350. Application: 819320/9350 - Particularly suitable for cutting small pipes where access is difficult. For copper, aluminium, and thin-walled stainless steel pipes. Spare part: 819320/9350 - Spare pin No. 818020 for cutter wheel. Miniature pipe cutter Miniature pipe cutter Spare cutter wheel Cutter wheel 0 Cutter wheel width Cutter wheel bore mm 11.04 3-16 17.03 3-30 2.15 20 5 5 81 9100 I 755 819320 81 9350
