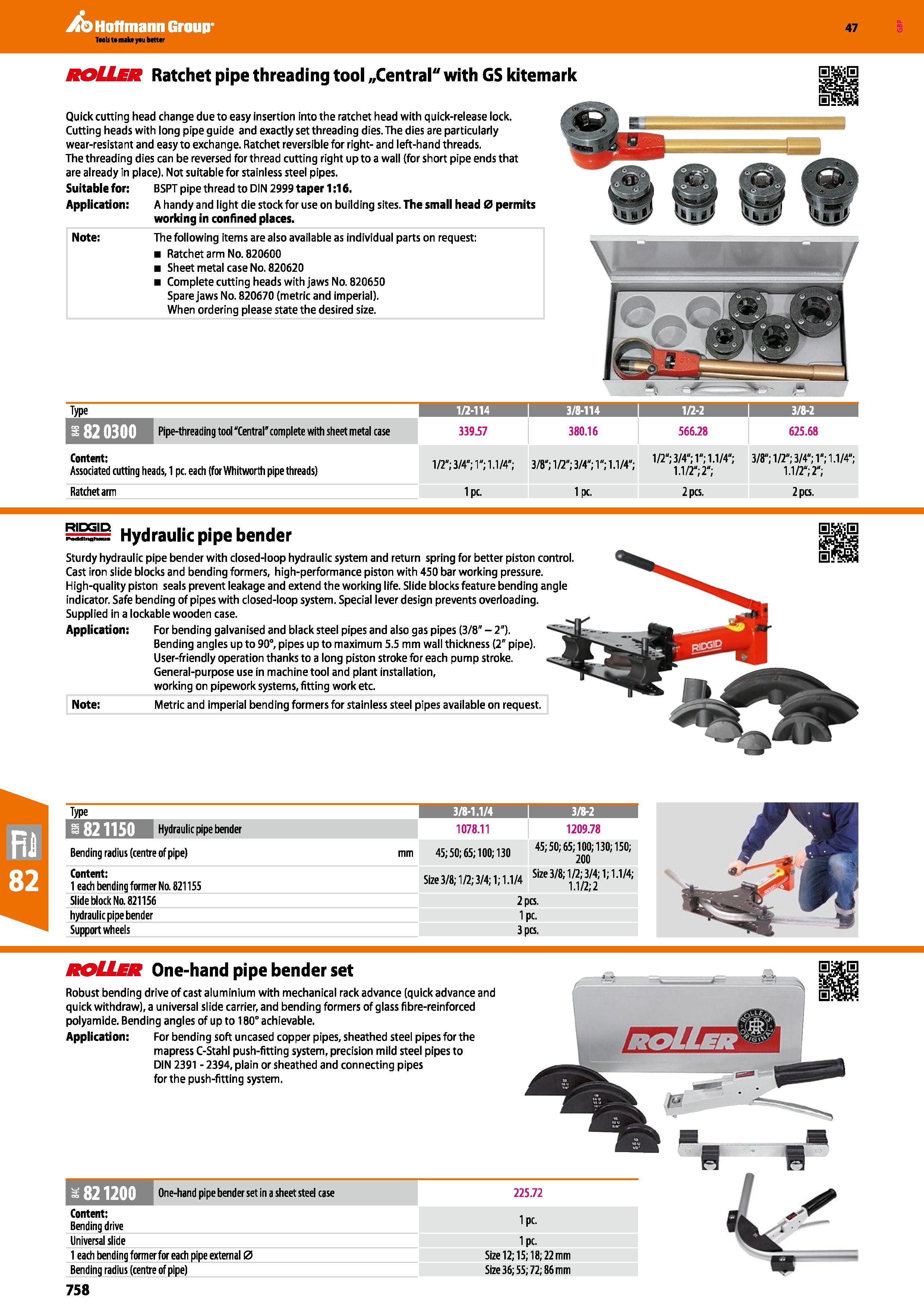

758 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.758

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 758 0758 ENG Lab2u

Hoffmann Group Taals to malnyau better 47 Note: The following items are also available as Individual parts on request: Ratchet arm No. 820600 Sheet metal case No. 820620 Complete cutting heads with jaws No. 820650 Spare jaws No. 820670 (metric and imperial). When ordering please state the desired size. ROUER Ratchet pipe threading tool „Central" with GS kitemark SSHSiS Quick cutting head change due to easy insertion into the ratchet head with quick-release lock. Cutting heads with long pipe guide and exactly set threading dies. The dies are particularly wear-resistant and easy to exchange. Ratchet reversible for right- and left-hand threads. The threading dies can be reversed for thread cutting right up to a wall (for short pipe ends that are already in place). Not suitable for stainless steel pipes. Suitablefor: BSPT pipe thread to DIN 2999 taper 1:16, Application: A handy and light die stock for use on building sites. The small head 0 permits working in confined places. Type I 1/2-114 I 3/8-114 1 1/2-2 3/8-2 1 raJTjWM Pipe-threading tool “Central” complete with sheet metal case 339.57 380.16 566.28 625.68 Content: Associated cutting heads, 1 pc. each (for Whitworth pipe threads) 1/2“; 3/4“; 1“; 1.1/4“; 3/8“; 1/2“; 3/4“; 1"; 1.1/4“; 1/2"; 3/4"; 1"; 1.1/4"; 1.1/2"; 2"; 3/8"; 1/2"; 3/4"; 1"; 1.1/4"; 1.1/2"; 2"; Ratchet arm 1pc. 1 PC. 2 pcs. 2 pcs. Hydraulic pipe bender Sturdy hydraulic pipe bender with dosed-loop hydraulic system and return spring for better piston control. Cast iron slide blocks and bending formers, high-performance piston with 450 bar working pressure. High-quality piston seals prevent leakage and extend the working life. Slide blocks feature bending angle indicator. Safe bending of pipes with closed-loop system. Special lever design prevents overloading. Supplied in a lockable wooden case. Application: For bending galvanised and black steel pipes and also gas pipes (3/8" - 2"). Bending angles up to 90°, pipes up to maximum 5.5 mm wall thickness (2" pipe). User-friendly operation thanks to a long piston stroke for each pump stroke. General-purpose use in machine tool and plant installation, working on pipework systems, fitting work etc. Note: Metric and imperial bending formers for stainless steel pipes available on request. 821150 Hydraulic pipe bender Bending radius (centre of pipe) Content: 1 each bending former Na 821155 Slide block Na 821156 hydraulic pipe bender Support wheels 3/8-1.1/4 1078.11 mm 45; 50; 65; 100; 130 Size 3/8; 1/2; 3/4; 1; 1.1/4 1209.78 45; 50; 65; 100; 130; 150; 200 Size 3/8; 1 /2; 3/4; 1; 1.1/4; 1.1/2; 2 2 pcs. 1 PC- 3 pcs. KOUER One-hand pipe bender set Robust bending drive of cast aluminium with mechanical rack advance (quick advance and quick withdraw), a universal slide carrier, and bending formers of glass fibre-reinforced polyamide. Bending angles of up to 180° achievable. Application: For bending soft uncased copper pipes, sheathed steel pipes for the mapress C-Stahl push-fitting system, precision mild steel pipes to DIN 2391 - 2394, plain or sheathed and connecting pipes for the push-fitting system. s821200 One-hand pipe bender set in a sheet steel case 225.72 Content: Bending drive 1 PC- Universal slide 1 each bending formerfor each pipe external 0 Bending radius (centre of pipe) 758 1 pc. Size 12; 15; 18; 22 mm Size 36; 55; 72; 86 mm
