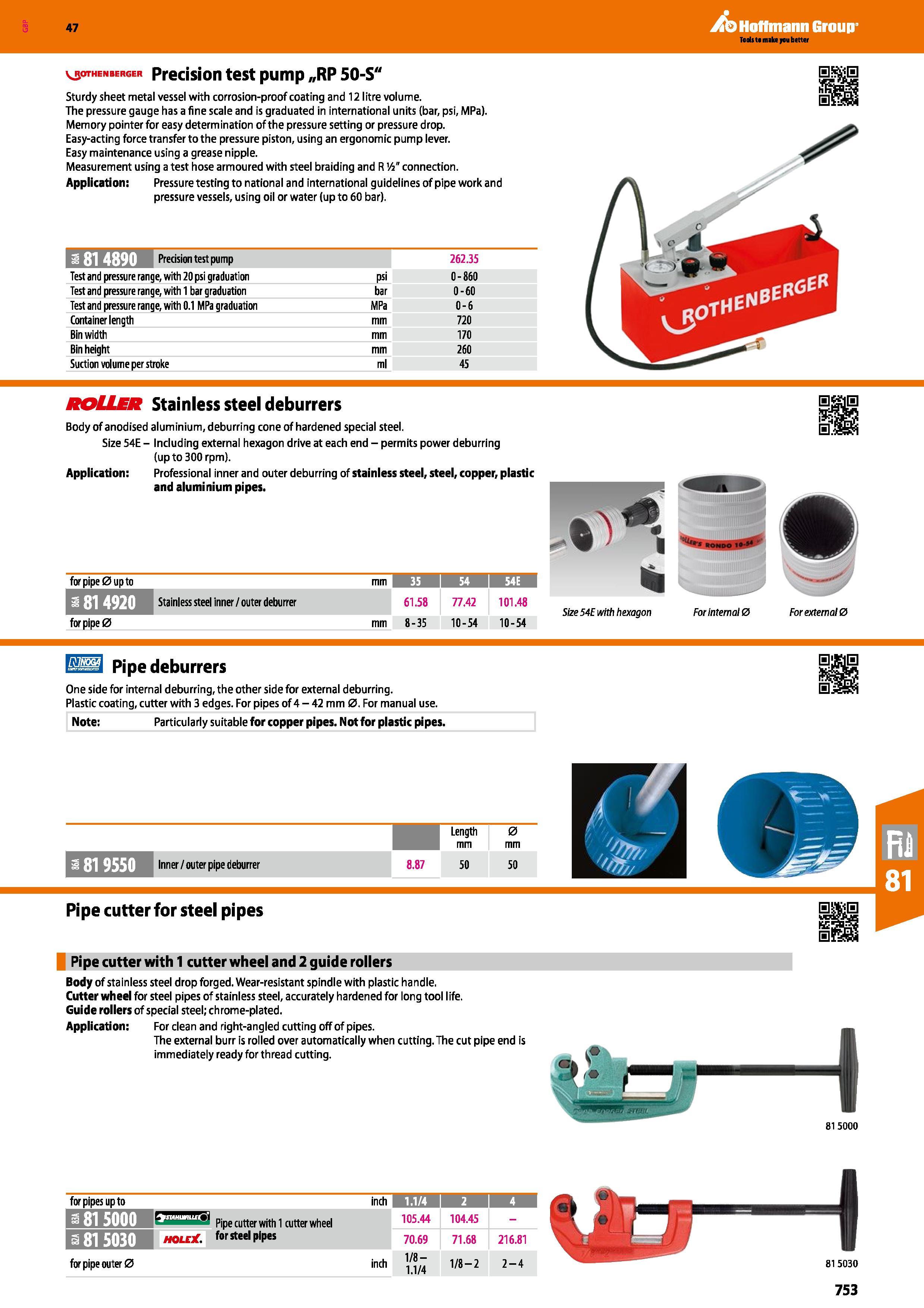

47 vjothemberger Precision test pump „RP 50-S" Sturdy sheet metal vessel with corrosion-proof coating and 12 litre volume. The pressure gauge has a fine scale and is graduated in international units (bar, psi, MPa). Memory pointer for easy determination of the pressure setting or pressure drop. Easy-acting force transfer to the pressure piston, using an ergonomic pump lever. Easy maintenance using a grease nipple. Measurement using a test hose armoured with steel braiding and R Vi connection. Application: Pressure testing to national and international guidelines of pipe work and pressure vessels, using oil or water (up to 60 bar). Asi Hoffmann Group g’TTTIflil Precision test pump 262.35 Test and pressure range, with 20 psi graduation psi 0-860 Test and pressure range, with 1 bar graduation bar 0-60 Test and pressure range, with 0.1 MPa graduation MPa 0-6 Container length mm 720 Bin width mm 170 Bin height mm 260 Suction volume per stroke ml 45 ROLLER Stainless steel deburrers Body of anodised aluminium, deburring cone of hardened special steel. Size 54E - Including external hexagon drive at each end - permits power deburring (up to 300 rpm). Application: Professional inner and outer deburring of stainless steel, steel, copper, plastic and aluminium pipes. for pipe 0 up to mm 35 1 54 54E 1 814920 Stainless steel inner / outer deburrer 61.58 77.42 101.48 Size 54E with hexagon For internal 0 For external 0 Pipe deburrers One side for internal deburring, the other side for external deburring. Plastic coating, cutter with 3 edges. For pipes of 4 - 42 mm 0. For manual use. Note: Particularly suitable for copper pipes. Not for plastic pipes. Length mm 0 mm 1 819550 Inner /outer pipe deburrer 8.87 50 50 Pipe cutter for steel pipes Pipe cutter with 1 cutter wheel and 2 guide rollers Body of stainless steel drop forged. Wear-resistant spindle with plastic handle. Cutter wheel for steel pipes of stainless steel, accurately hardened for long tool life. Guide rollers of special steel; ch rome-plated. Application: For clean and right-angled cutting off of pipes. The external burr is rolled over automatically when cutting. The cut pipe end is immediately ready for thread cutting. for pipes up to inch 1.1/4 1 2 I 4 Pipe cutter with 1 cutter wheel 105.44 104.45 - a 815030 E3 for steel pipes 70.69 71.68 216.81 for pipe outer 0 inch 1/8- 1.1/4 1/8-2 2-4 81 5030 753
