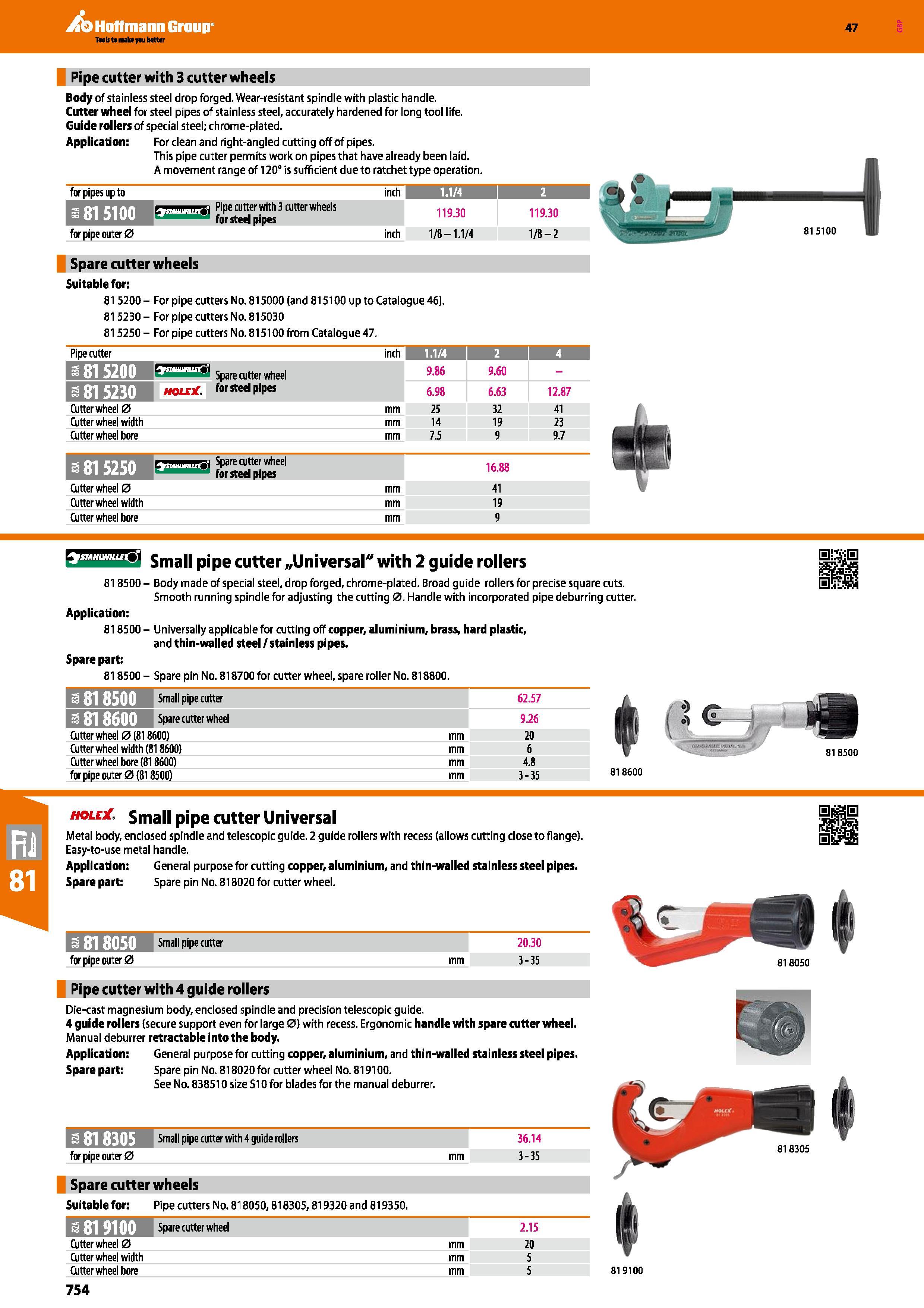

Hoffmann Group 47 Pipe cutter with 3 cutter wheels Body of stainless steel drop forged. Wear-resistant spindle with plastic handle. Cutter wheel for steel pipes of stainless steel, accurately hardened for long tool life. Guide rollers of special steel; ch rome-plated. Application: For clean and right-angled cutting off of pipes. This pipe cutter permits work on pipes that have already been laid. A movement range of 120° is sufficient due to ratchet type operation. for pipes up to inch 1.1/4 2 U 815100 L minimum Pipe cutter with 3 cutter wheels f0r steel pipes 119.30 119.30 for pipe outer 0 inch 1/8 1.1/4 1/8-2 Spare cutter wheels Suitable for: 815200- For pipe cutters No. 815000 (and 815100 up to Catalogue 46). 81 5230 - For pipe cutters No. 815030 815250 - For pipe cutters No. 815100 from Catalogue 47. Pipe cutter inch 1.1/4 1 2 I 4 815200 fciSHiiiiSi Spare cutter wheel 9.86 9.60 - 815230 holejC. for steel pipes 6.98 6.63 12.87 Cutter wheel 0 mm 25 32 41 Cutter wheel width mm 14 19 23 Cutter wheel bore mm 7.5 9 9.7 s 815250 Spare cutter wheel for steel pipes 16.88 1 km Cutter wheel 0 mm 41 1 Cutter wheel width Cutter wheel bore mm 19 9 Small pipe cutter „Universal" with 2 guide rollers 818500 - Body made of special steel, drop forged, chrome-plated. Broad guide rollers for precise square cuts. Smooth running spindle for adjusting the cutting 0. Handle with incorporated pipe deburring cutter. Application: 818500 - Universally applicable for cutting off copper, aluminium, brass, hard plastic, and thin-walled steel / stainless pipes. Spare part: 818500 - Spare pin No. 818700 for cutter wheel, spare roller No. 818800. s 818500 Small pipe cutter 62.57 a 818600 Spare cutter wheel 9.26 Cutter wheel 0(818600) Cutter wheel width (818600) Cutter wheel bore (818600) for pipe outer 0(818500) mm 20 6 4.8 3-35 (t C-H -t < 818500 81 8600 holex. Small pipe cutter Universal Metal body, enclosed spindle and telescopic guide. 2 guide rollers with recess (allows cutting close to flange). Easy-to-use metal handle. Application: General purpose for cutting copper, aluminium, and thin-walled stainless steel pipes. Spare part: Spare pin No. 818020 for cutter wheel. 818050 Small pipe cutter for pipe outer 0 Pipe cutter with 4 guide rollers 20.30 3-35 Die-cast magnesium body, enclosed spindle and precision telescopic guide. 4 guide rollers (secure support even for large 0) with recess. Ergonomic handle with spare cutter wheel. Manual deburrer retractable into the body. Application: General purpose for cutting copper, aluminium, and thin-walled stainless steel pipes. Spare part: Spare pin No. 818020 for cutter wheel No. 819100. See No. 838510 size SI 0 for blades for the manual deburrer. 818305 Small pipe cutter with 4 guide rollers 36.14 for pipe outer 0 mm 3-35 Spare cutter wheels Suitable for: Pipe cutters No. 818050,818305,819320 and 819350. 819100 Spare cutter wheel 2.15 Cutter wheel 0 mm 20 Cutter wheel width mm 5 Cutter wheel bore mm 5 818305 81 9100 754
