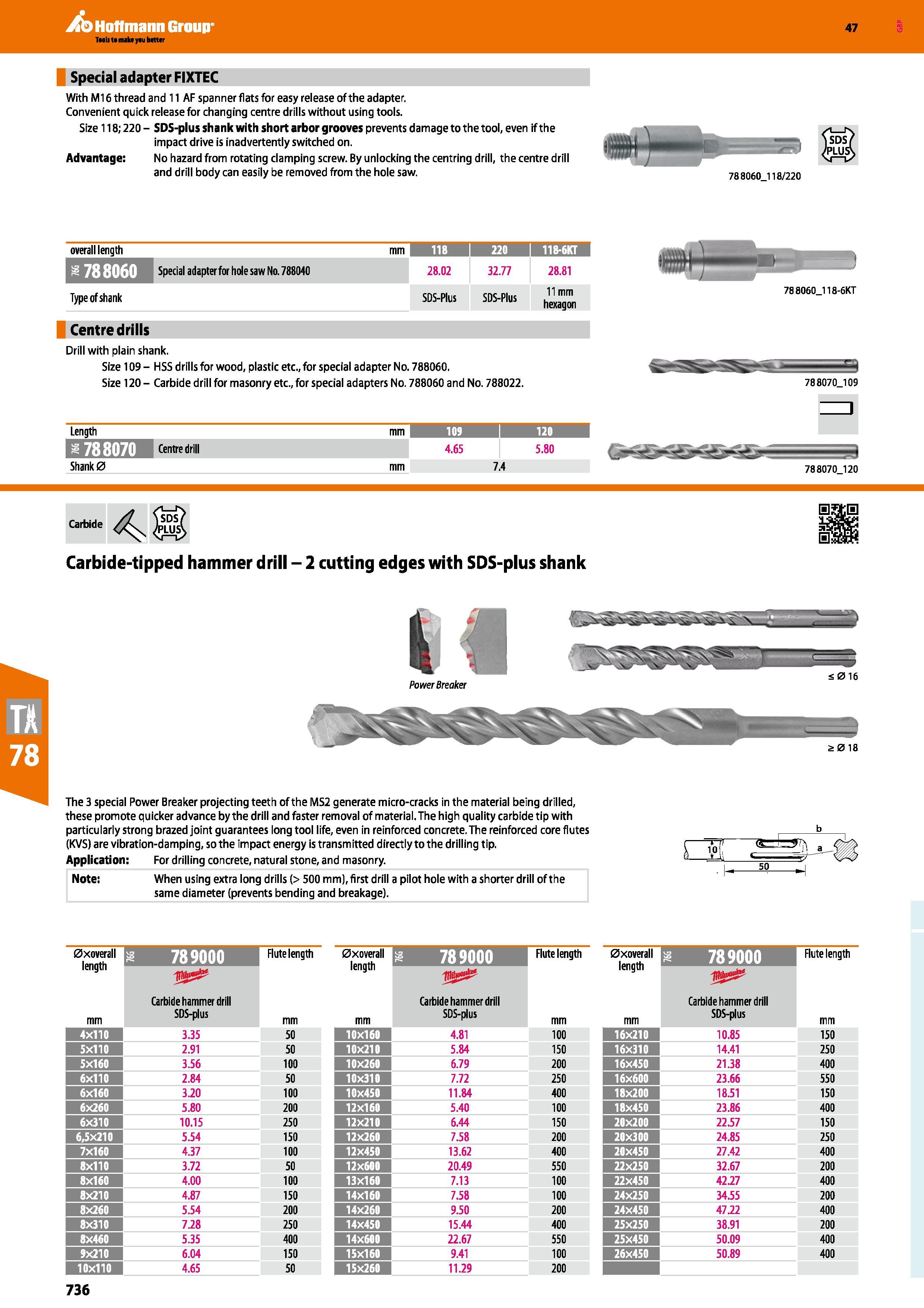

Hoffmann Group 47 Special adapter FIXTEC With M16 thread and 11 AF spanner flats for easy release of the adapter. Convenient quick release for changing centre drills without using tools. Size 118; 220 - SDS-plus shank with short arbor grooves prevents damage to the tool, even if the impact drive is inadvertently switched on. Advantage: No hazard from rotating clamping screw. By unlocking the centring drill, the centre drill and drill body can easily be removed from the hole saw. 78 8060_118/220 overall length mm 118 220 1 118-6KT 1 Special adapter for hole saw Na 788040 28.02 32.77 28.81 Type of shank SDS-Plus SDS-Plus 11 mm hexagon Centre drills Drill with plain shank. Size 109 - HSS drills for wood, plastic etc., for special adapter No. 788060. Size 120 - Carbide drill for masonry etc., for special adapters No. 788060 and No. 788022. 788060_118-6KT 788070_109 =1 Length mm 109 1 120 V7 T 7iTm Centre drill 4.65 5.80 Shank 0 mm 7.4 788070 120 Carbide-tipped hammer drill - 2 cutting edges with SDS-plus shank Power Breaker £016 £018 The 3 special Power Breaker projecting teeth of the MS2 generate micro-cracks in the material being drilled, these promote quicker advance by the drill and faster removal of material. The high quality carbide tip with particularly strong brazed joint guarantees long tool life, even in reinforced concrete. The reinforced core flutes (KVS) are vibration-damping, so the impact energy is transmitted directly to the drilling tip. Application: For drilling concrete, natural stone, and masonry. Note: When using extra long drills (> 500 mm), first drill a pilot hole with a shorter drill of the same diameter (prevents bending and breakage). 50 0xoverall length Flute length 0xoverall length Flute length 0xoverall length Flute length mm Carbide hammer drill SDS-plus mm Carbide hammer drill SDS-plus mm Carbide hammer drill SDS-plus mm 4x110 3.35 50 10x160 4.81 100 16x210 10.85 150 5x110 2.91 50 10x210 5.84 150 16x310 14.41 250 5x160 3.56 100 10x260 6.79 200 16x450 21.38 400 6x110 2.84 50 10x310 7.72 250 16x600 23.66 550 6x160 3.20 100 10x450 11.84 400 18x200 18.51 150 6x260 5.80 200 12x160 5.40 100 18x450 23.86 400 6x310 10.15 250 12x210 6.44 150 20x200 22.57 150 6,5x210 5.54 150 12x260 7.58 200 20x300 24.85 250 7x160 4.37 100 12x450 13.62 400 20x450 27.42 400 8x110 3.72 50 12x600 20.49 550 22x250 32.67 200 8x160 4.00 100 13x160 7.13 100 22x450 42.27 400 1x210 4.87 150 14x160 7.58 100 24x250 34.55 200 8x260 5.54 200 14x260 9.50 200 24x450 47.22 400 8x310 7.28 250 14x450 15.44 400 25x250 38.91 200 8X460 5.35 400 14X600 22.67 550 25X450 50.09 400 9x210 6.04 150 15x160 9.41 100 26x450 50.89 400 10x110 4.65 50 15x260 11.29 200 736
