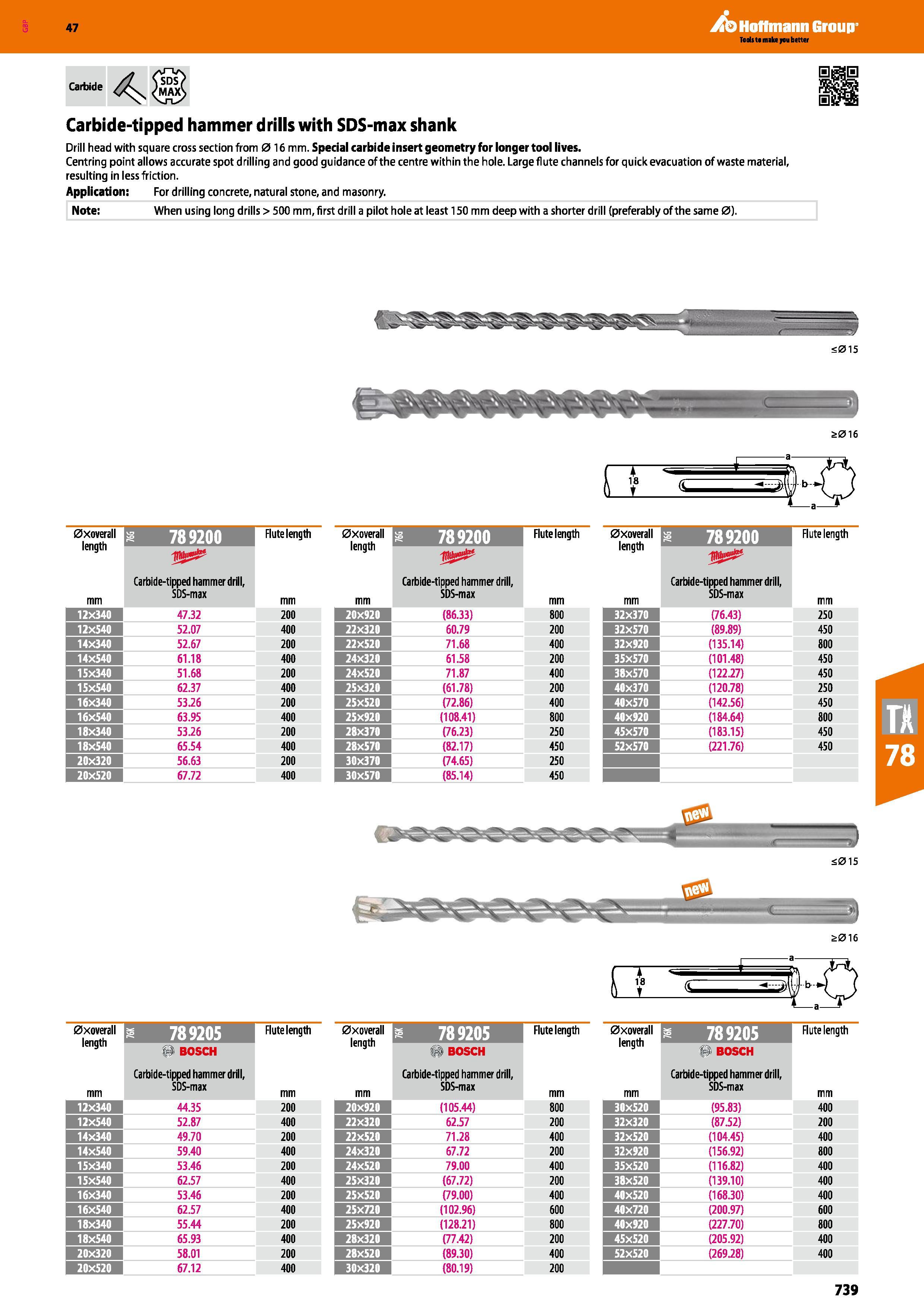

Hoffmann Group 47 Carbide Carbide-tipped hammer drills with SDS-max shank Drill head with square cross section from 016 mm. Special carbide insert geometry for longer tool lives. Centring point allows accurate spot drilling and good guidance of the centre within the hole. Large flute channels for quick evacuation of waste material, resulting in less friction. Application: For drilling concrete, natural stone, and masonry. Note: When using long drills > 500 mm, first drill a pilot hole at least 150 mm deep with a shorter drill (preferably of the same 0). <015 £016 0xoverall length Flute length 0xoverall length jsssS Flute length 0xoverall length Flute length mm Carbide-tipped hammer drill, SDS-max mm Carbide-tipped hammer drill, SDS-max mm Carbide-tipped hammer drill, SDS-max mm 12X340 47.32 200 20X920 (86.33) 800 32X370 (76.43) 250 12X540 52.07 400 22X320 60.79 200 32X570 (89.89) 450 14X340 52.67 200 22X520 71.68 400 32X920 (135.14) 800 14X540 61.18 400 24X320 61.58 200 35x570 (101.48) 450 15x340 51.68 200 24x520 71.87 400 38x570 (122.27) 450 15x540 62.37 400 25x320 (61.78) 200 40x370 (120.78) 250 16x340 53.26 200 25x520 (72.86) 400 40x570 (142.56) 450 16x540 63.95 400 25x920 (108.41) 800 40x920 (184.64) 800 18x340 53.26 200 28x370 (76.23) 250 45x570 (183.15) 450 18x540 65.54 400 28x570 (82.17) 450 52x570 (221.76) 450 20x320 56.63 200 30x370 (74.65) 250 20x520 67.72 400 30x570 (85.14) 450 £015 £016 0xoverall length Flute length 0xoverall length Flute length 0xoverall length Flute length BOSCH fm BOSCH BOSCH mm Carbide-tipped hammer drill, SDS-max mm Carbide-tipped hammer drill, SDS-max mm Carbide-tipped hammer drill, SDS-max mm 12x340 44.35 200 20x920 (105.44) 800 30x520 (95.83) 400 12X540 52.87 400 22X320 62.57 200 32x320 (87.52) 200 14x340 49.70 200 22x520 71.28 400 32x520 (104.45) 400 14x540 59.40 400 24x320 67.72 200 32x920 (156.92) 800 15x340 53.46 200 24X520 79.00 400 35x520 (116.82) 400 15x540 62.57 400 25x320 (67.72) 200 38x520 (139.10) 400 16x340 53.46 200 25x520 (79.00) 400 40x520 (168.30) 400 16x540 62.57 400 25X720 (102.96) 600 40X720 (200.97) 600 18x340 55.44 200 25x920 (128.21) 800 40x920 (227.70) 800 18x540 65.93 400 28x320 (77.42) 200 45x520 (205.92) 400 20x320 58.01 200 28x520 (89.30) 400 52X520 (269.28) 400 20x520 67.12 400 30x320 (80.19) 200 739
