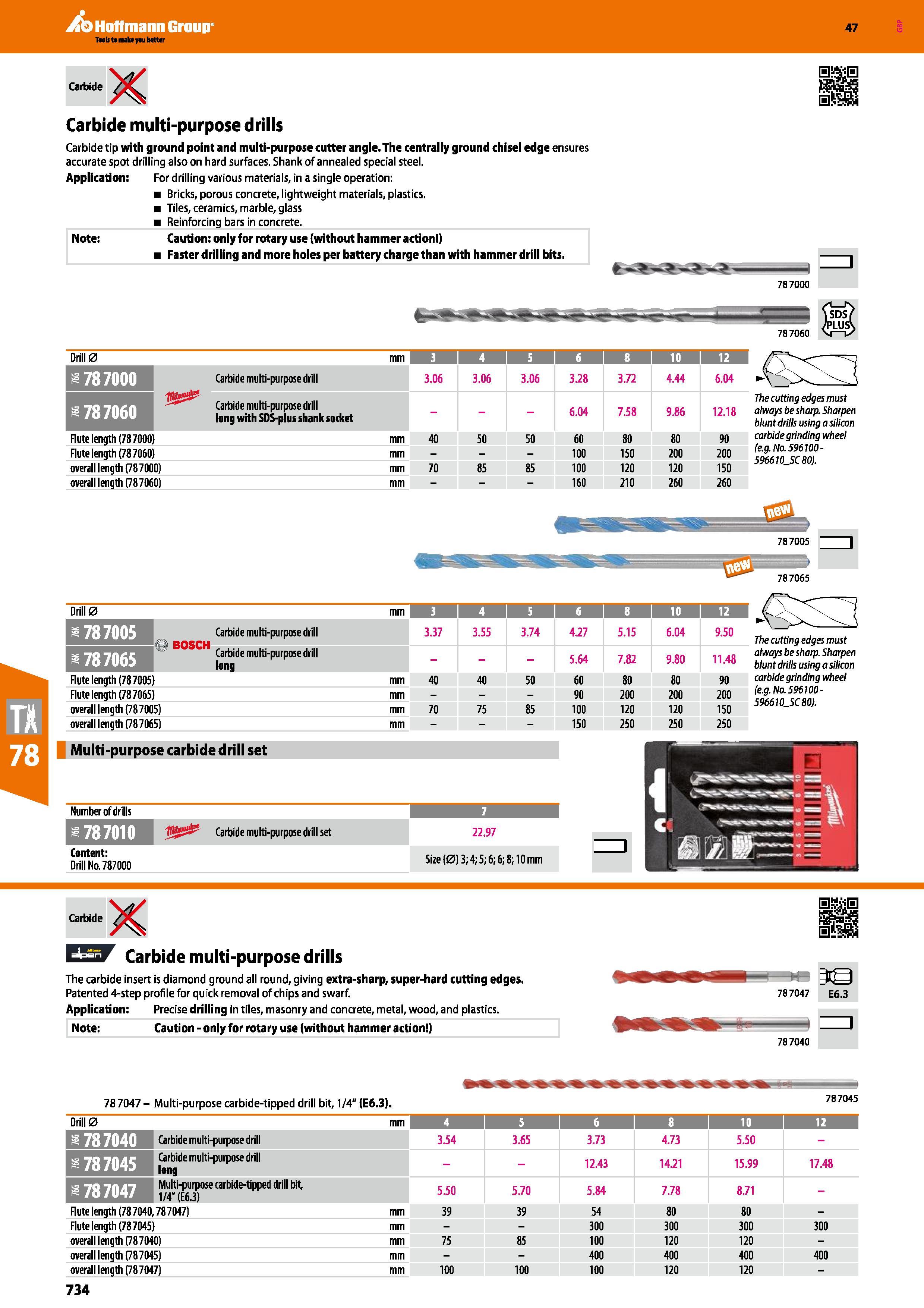

Carbide multi-purpose drills Carbide tip with ground point and multi-purpose cutter angle.The centrally ground chisel edge ensures accurate spot drilling also on hard surfaces. Shank of annealed special steel. Application: For drilling various materials, in a single operation: Bricks, porous concrete, lightweight materials, plastics. Tiles, ceramics, marble, glass Reinforcing bars in concrete. Note: Caution: only for rotary use (without hammer action ) Faster drilling and more holes per battery charge than with hammer drill bits. 787000 787060 Drill 0 mm 3 1 4 1 5 1 6 1 8 1 10 1 12 I 787000 ingest Carbide multi-purpose drill 3.06 3.06 3.06 3.28 3.72 4.44 6.04 787060 Carbide multi-purpose drill long with SDS-plus shank socket 6.04 7.58 9.86 12.18 Flute length (787000 ) mm 40 50 50 60 80 80 90 Flute length (787060 ) mm 100 150 200 200 overall length (787000) mm 70 85 85 100 120 120 150 overall length (787060) mm 160 210 260 260 The cutting edges must always be sharp. Sharpen blunt drills using a silicon carbide grinding wheel (e.g. No. 596100-596610_SC 80). Drill 0 mm 3 1 4 1 5 1 1 8 I 10 1 12 787005 Carbide multi-purpose drill Dneru 3.37 3.55 3.74 4.27 5.15 6.04 9.50 k 787065 Carbide multi-purpose drill long 5.64 7.82 9.80 11.48 Flute length (787005) mm 40 40 50 60 80 80 90 Flute length (787065) mm 90 200 200 200 overall length (787005) mm 70 75 85 100 120 120 150 overall length (787065) mm 150 250 250 250 Multi-purpose carbide drill set The cutting edges must always be sharp. Sharpen blunt drills using a silicon carbide grinding wheel (e.g.No.596100-596610_SC80). Number of drills 7 I 787010 Carbide multi-purpose drill set 22.97 Content: Drill Na 787000 Size (0)3; 4; 5; 6; 6; 8; 10 mm Carbide Carbide multi-purpose drills The carbide insert is diamond ground all round, giving extra-sharp, super-hard cutting edges. Patented 4-step profile for quick removal of chips and swarf. Application: Precise drilling in tiles, masonry and concrete, metal, wood, and plastics. Note: Caution - only for rotary use (without hammer action ) 787047 E6.3 787040 787047- Multi-purpose carbide-tipped drill bit, 1/4" (E6.3). mm 787045 Drill 0 mm 4 5 6 1 10 1 12 787040 Carbide multi-purpose drill 3.54 3.65 3.73 4.73 5.50 - 787045 Carbide multi-purpose drill long 12.43 14.21 15.99 17.48 787047 Multi-purpose carbide-tipped drill bit, 1/4" (E6.3) 5.50 5.70 5.84 7.78 8.71 - Flute length (787040 ,787047) mm 39 39 54 80 80 - Flute length (787045 ) mm 300 300 300 300 overall length (787040) mm 75 85 100 120 120 - overall length (787045) mm 400 400 400 400 overall length (787047) mm 100 100 100 120 120 - 734
