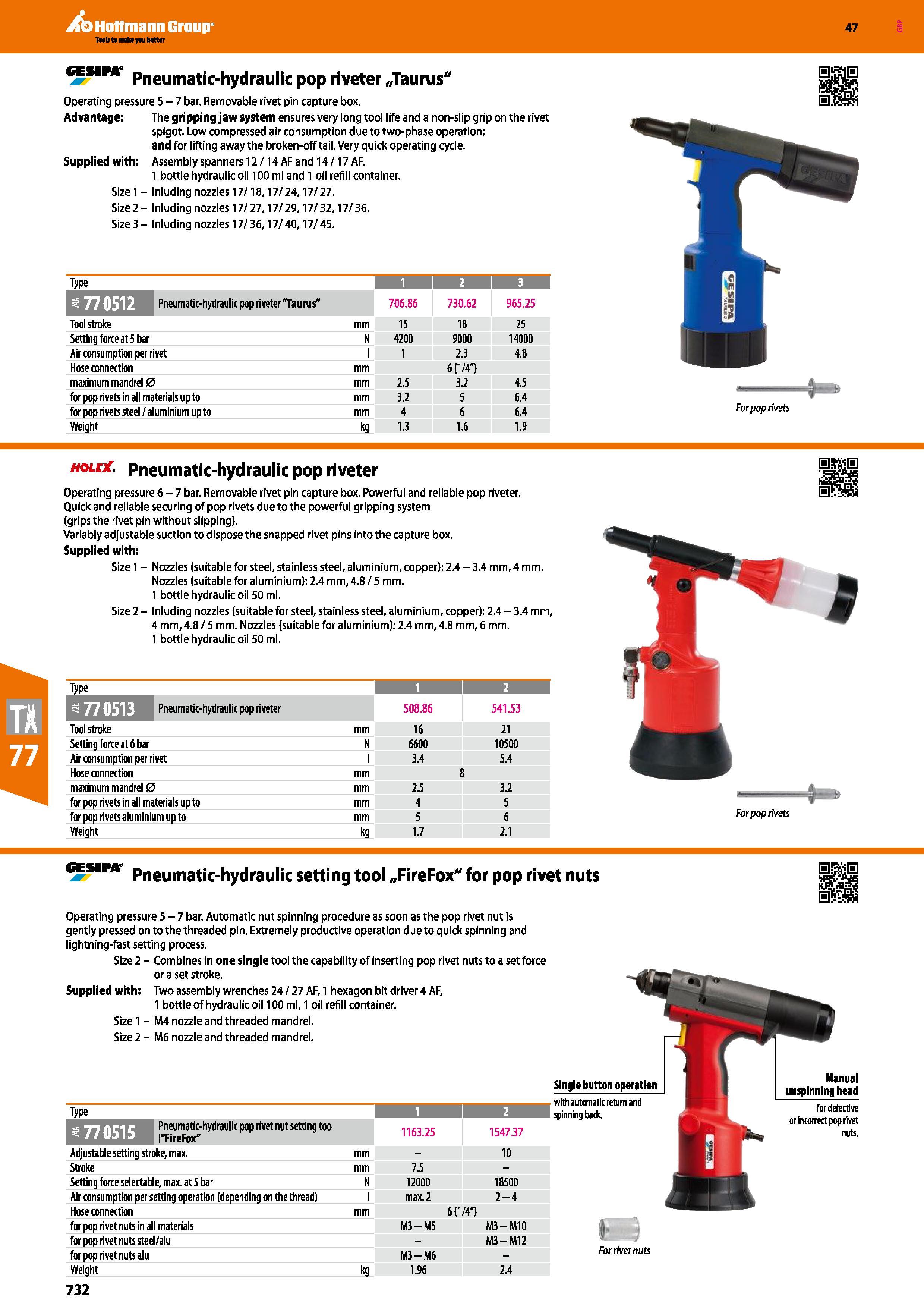

Hoffmann Group 47 cesira pneumatjc-hydraulic pop riveter „Taurus" Operating pressure 5-7 bar. Removable rivet pin capture box. Advantage: The gripping jaw system ensures very long tool life and a non-slip grip on the rivet spigot. Low compressed air consumption due to two-phase operation: and for lifting away the broken-off tail. Very quick operating cycle. Supplied with: Assembly spanners 12 /14 AF and 14 /17 AF. 1 bottle hydraulic oil 100 ml and 1 oil refill container. Sizel - Inluding nozzles 17/18,17/24,17/27. Size 2 - Inluding nozzles 17/ 27,17/ 29,17/ 32,17/ 36. Size 3 - Inluding nozzles 17/ 36,17/ 40,17/ 45. Type 1 1 I 2 I 3 Pneumatic-hydraulic pop riveter "Taurus" 706.86 730.62 965.25 Tool stroke mm 15 18 25 Setting force at 5 bar N 4200 9000 14000 Air consumption per rivet 1 1 2.3 4.8 Hose connection mm 6(1/4") maximum mandrel 0 mm 2.5 3.2 4.5 for pop rivets in all materials upto mm 3.2 5 6.4 for pop rivets steel / aluminium up to mm 4 6 6.4 Weight kg 1.3 1.6 1.9 For pop rivets holex. Pneumatic-hydraulic pop riveter Operating pressure 6-7 bar. Removable rivet pin capture box. Powerful and reliable pop riveter. Quick and reliable securing of pop rivets due to the powerful gripping system (grips the rivet pin without slipping). Variably adjustable suction to dispose the snapped rivet pins into the capture box. Supplied with: Size 1 - Nozzles (suitable for steel, stainless steel, aluminium, copper): 2.4 - 3.4 mm, 4 mm. Nozzles (suitable for aluminium): 2.4 mm, 4.8 /5 mm. 1 bottle hydraulic oil 50 ml. Size 2 - Inluding nozzles (suitable for steel, stainless steel, aluminium, copper): 2.4 - 3.4 mm, 4 mm, 4.8 /5 mm. Nozzles (suitable for aluminium): 2.4 mm, 4.8 mm, 6 mm. 1 bottle hydraulic oil 50 ml. Type 1 I 2 I JsMfl 1 L FW Pneumatic-hydraulic pop riveter 508.86 541.53 Tool stroke mm 16 21 Setting force at 6 bar N 6600 10500 Air consumption per rivet 1 3.4 5.4 Hose connection mm 8 maximum mandrel 0 mm 2.5 3.2 for pop rivets in all materials upto mm 4 5 for pop rivets aluminium upto mm 5 6 Weight kg 1.7 2.1 For pop rivets esira pneumatjc-hydraulic setting tool „FireFox" for pop rivet nuts Operating pressure 5-7 bar. Automatic nut spinning procedure as soon as the pop rivet nut is gently pressed on to the threaded pin. Extremely productive operation due to quick spinning and lightning-fast setting process. Size 2 - Combines in one single tool the capability of inserting pop rivet nuts to a set force or a set stroke. Supplied with: Two assembly wrenches 24 / 27 AF, 1 hexagon bit driver 4 AF, 1 bottle of hydraulic oil 100 ml, 1 oil refill container. Size 1 - M4 nozzle and threaded mandrel. Size 2 - M6 nozzle and threaded mandrel. Type I 1 1 2 Pneumatic-hydraulic pop rivet nut setting too HCAaClCS rFireFox" 1163.25 1547.37 Adjustable setting stroke, max. mm - 10 Stroke mm 7.5 - Setting force selectable, max. at 5 bar N 12000 18500 Air consumption per setting operation (depending on the thread) I max. 2 2-4 Hose connection mm 6(1/4“) for pop rivet nuts in all materials M3-M5 M3-M10 for pop rivet nuts steel/alu - M3-M12 for pop rivet nuts alu M3-M6 - Weight kg 1.96 2.4 732 For rivet nuts
