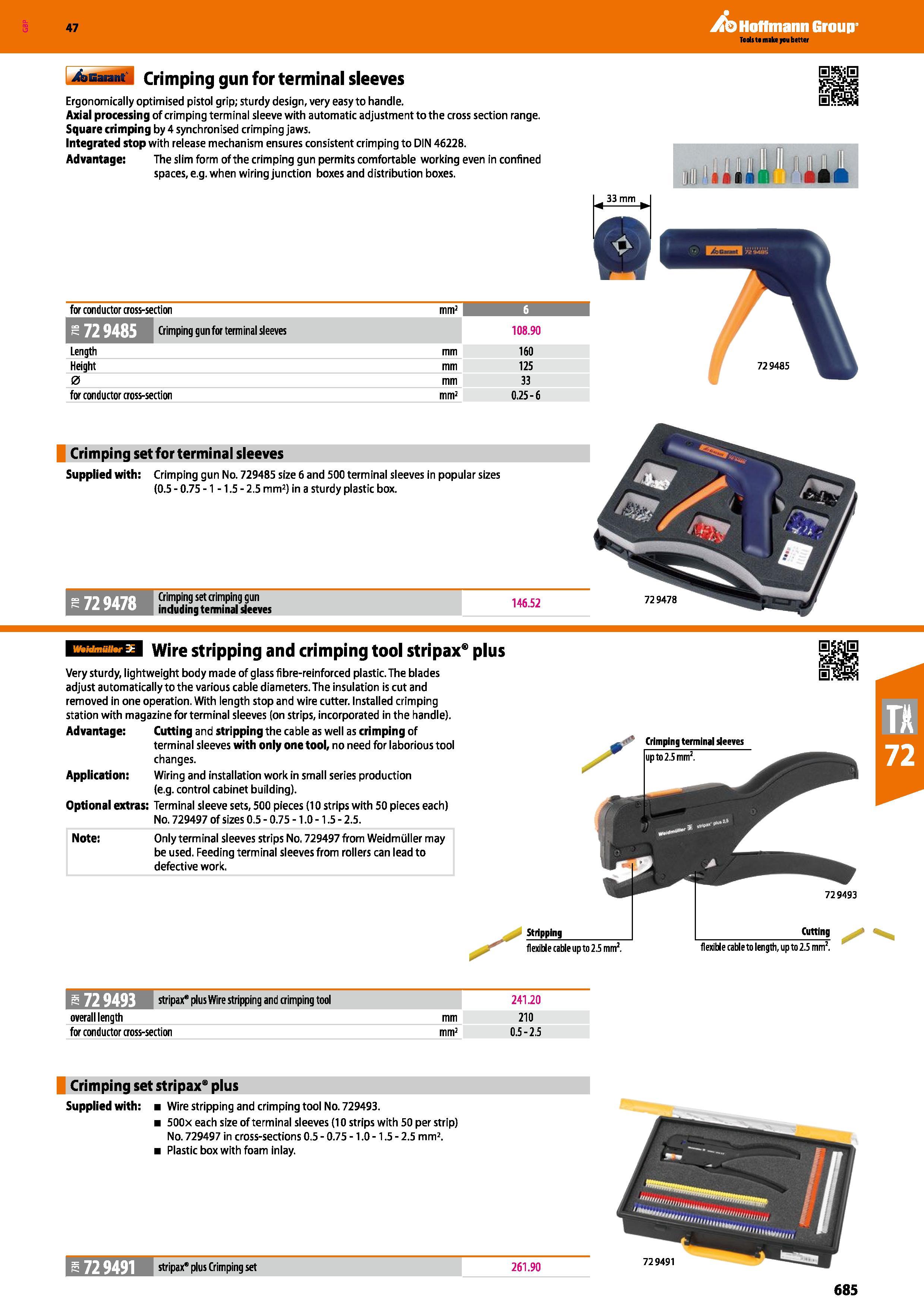

685 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.685

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 685 0685 ENG Lab2u

Hoffmann Group 47 Crimping gun for terminal sleeves Ergonomically optimised pistol grip; sturdy design, very easy to handle. Axial processing of crimping terminal sleeve with automatic adjustment to the cross section range. Square crimping by 4 synchronised crimping jaws. Integrated stop with release mechanism ensures consistent crimping to DIN 46228. Advantage: The slim form of the crimping gun permits comfortable working even in confined spaces, e.g. when wiring junction boxes and distribution boxes. for conductor cross-section mm3 Igy/AjtlitV Crimping gun for terminal sleeves 108.90 Length mm 160 Height mm 125 0 mm 33 for conductor cross-section mm2 0.25-6 Crimping set for terminal sleeves Supplied with: Crimping gun No. 729485 size 6 and 500 terminal sleeves in popular sizes (0.5 - 0.75 -1 -1.5 - 2.5 mm2) in a sturdy plastic box. 729478 Crimping set crimping gun induding terminal sleeves 146.52 Wire stripping and crimping tool stripax Very sturdy, lightweight body made of glass fibre-reinforced plastic. The blades adjust automatically to the various cable diameters. The insulation is cut and removed in one operation. With length stop and wire cutter. Installed crimping station with magazine for terminal sleeves (on strips, incorporated in the handle). Advantage: Cutting and stripping the cable as well as crimping of terminal sleeves with only one tool, no need for laborious tool changes. Application: Wiring and installation work in small series production (e.g. control cabinet building). Optional extras: Terminal sleeve sets, 500 pieces (10 strips with 50 pieces each) No. 729497 of sizes 0.5 - 0.75 -1.0 -1.5 - 2.5. Note: Only terminal sleeves strips No. 729497 from Weidmuller may be used. Feeding terminal sleeves from rollers can lead to defective work, CTfTtrfW stripax8 plus Wire stripping and crimping tool 241.20 overall length mm 210 for conductor cross-section mm2 0.5-2.5 Crimping set stripax plus Supplied with: Wire stripping and crimping tool No. 729493. 500x each size of terminal sleeves (10 strips with 50 per strip) No. 729497 in cross-sections 0.5 - 0.75 -1.0 -1.5 - 2.5 mm2. Plastic box with foam inlay. 33 mm f 729478 15 72 9491 stripax plus Crimping set 261.90 729491
