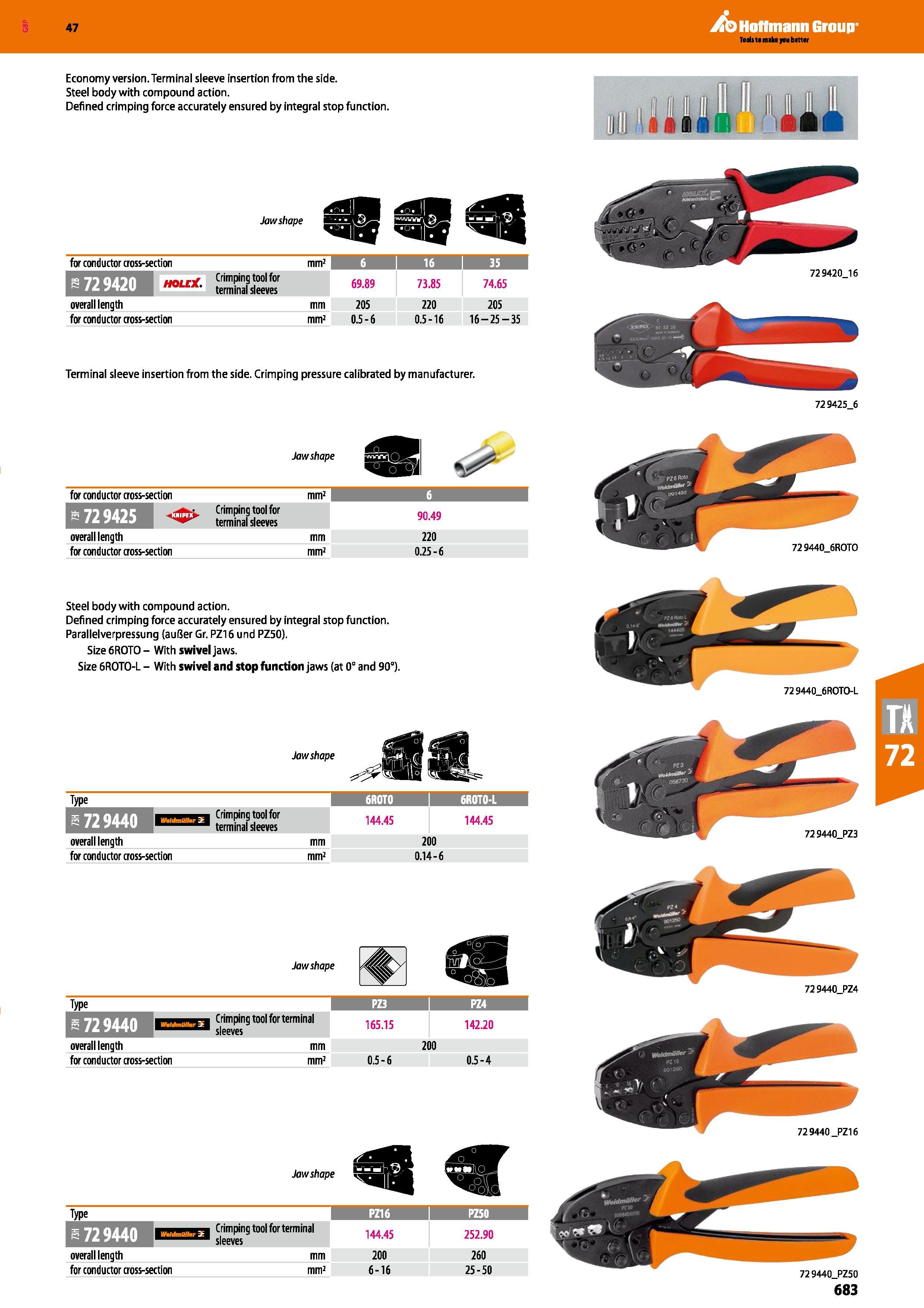

Hoffmann Group 47 Economy version. Terminal sleeve insertion from the side. Steel body with compound action. Defined crimping force accurately ensured by integral stop function. Jawshape for conductor cross-section mm2 6 1 16 1 35 Crimping tool for terminal sleeves 69.89 73.85 74.65 overall length mm 205 220 205 for conductor cross-section mm2 0.5-6 0.5-16 16-25-35 Terminal sleeve insertion from the side. Crimping pressure calibrated by manufacturer. 729425 6 Jawshape for conductor cross-section mm2 6 fi 72 9425 Crimping tool for terminal sleeves 90.49 overall length mm 220 for conductor cross-section mm2 0.25-6 729440 6ROTO Steel body with compound action. Defined crimping force accurately ensured by integral stop function. Parallelverpressung (auGer Gr. PZ16 und PZ50). Size 6ROTO - With swivel jaws. Size 6R0T0-L - With swivel and stop function jaws (at 0° and 90°). Type 72 9440 overall length for conductor cross-section Jawshape Crimping tool for terminal sleeves 144.45 144.45 mm mm2 200 0.14-6 Jawshape Jawshape Type PZ3 I PZ4 s y2 9440 Crimping tool for terminal sleeves 165.15 142.20 overall length mm 200 for conductor cross-section mm2 0.5-6 0.5-4 Type PZ16 PZS0 72 9440 ihib.i j Crimping tool for terminal "l‘"ll "l7Tl1 sleeves 144.45 252.90 overall length mm 200 260 for conductor cross-section mm2 6-16 25-50 72 9440_PZ3 72 9440_PZ4 729440_PZ16 729420_16 72 944Q_6ROTO-L
