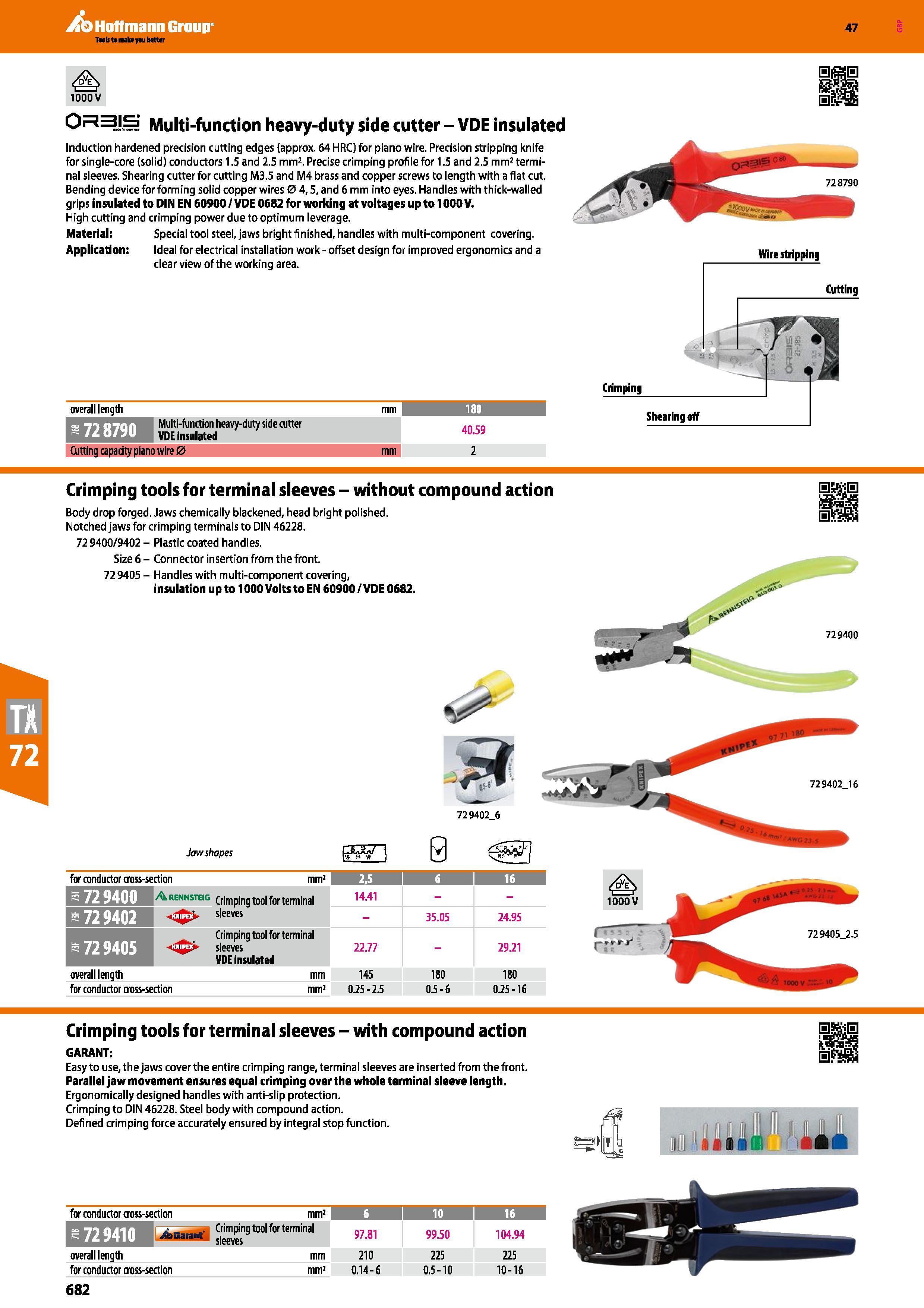

Hoffmann Group 47 / e\ 1000 V si£ Or 3lS Multi-function heavy-duty side cutter - VDE insulated Induction hardened precision cutting edges (approx. 64 HRC) for piano wire. Precision stripping knife for single-core (solid) conductors 1.5 and 2.5 mm2. Precise crimping profile for 1.5 and 2.5 mm2 terminal sleeves. Shearing cutter for cutting M3.5 and M4 brass and copper screws to length with a flat cut. Bending device for forming solid copper wires 0 4,5, and 6 mm into eyes. Handles with thick-walled grips insulated to DIN EN 60900/VDE 0682 for working at voltages up to 1000V. High cutting and crimping power due to optimum leverage. Material: Special tool steel, jaws bright finished, handles with multi-component covering. Application: Ideal for electrical installation work - offset design for improved ergonomics and a clear view of the working area. Cutting overall length mm 180 i Multi-function heavy-duty side cutter 40.59 Cutting capacity piano wire 0 mm 2 Crimping Shearing off Crimping tools for terminal sleeves - without compound action Body drop forged. Jaws chemically blackened, head bright polished. Notched jaws for crimping terminals to DIN 46228. 72 9400/9402 - Plastic coated handles. Size 6 - Connector insertion from the front. 729405- Handles with multi-component covering, insulation up to 1000 Volts to EN 60900/VDE 0682. 729400 Jawshapes poor for conductor cross-section mm2 2,5 I 6 I 16 s 72 9400 Arennsteig Crimping tool for terminal 14.41 fi 72 9402 sleeves - 35.05 24.95 a 72 9405 Crimping tool for terminal sleeves VDE insulated 22.77 - 29.21 overall length mm 145 180 180 for conductor cross-section mmJ 0.25-2.5 0.5-6 0.25-16 0 (3&FJ Crimping tools for terminal sleeves - with compound action GARANT: Easy to use, the jaws cover the entire crimping range, terminal sleeves are inserted from the front. Parallel jaw movement ensures equal crimping over the whole terminal sleeve length. Ergonomically designed handles with anti-slip protection. Crimping to DIN 46228. Steel body with compound action. Defined crimping force accurately ensured by integral stop function. for conductor cross-section mm2 6 i 10 1 16 - 72 9410 Crimping tool for terminal sleeves 97.81 99.50 104.94 overall length mm 210 225 225 for conductor cross-section mm2 0.14-6 0.5-10 10-16 728790 Wire stripping
