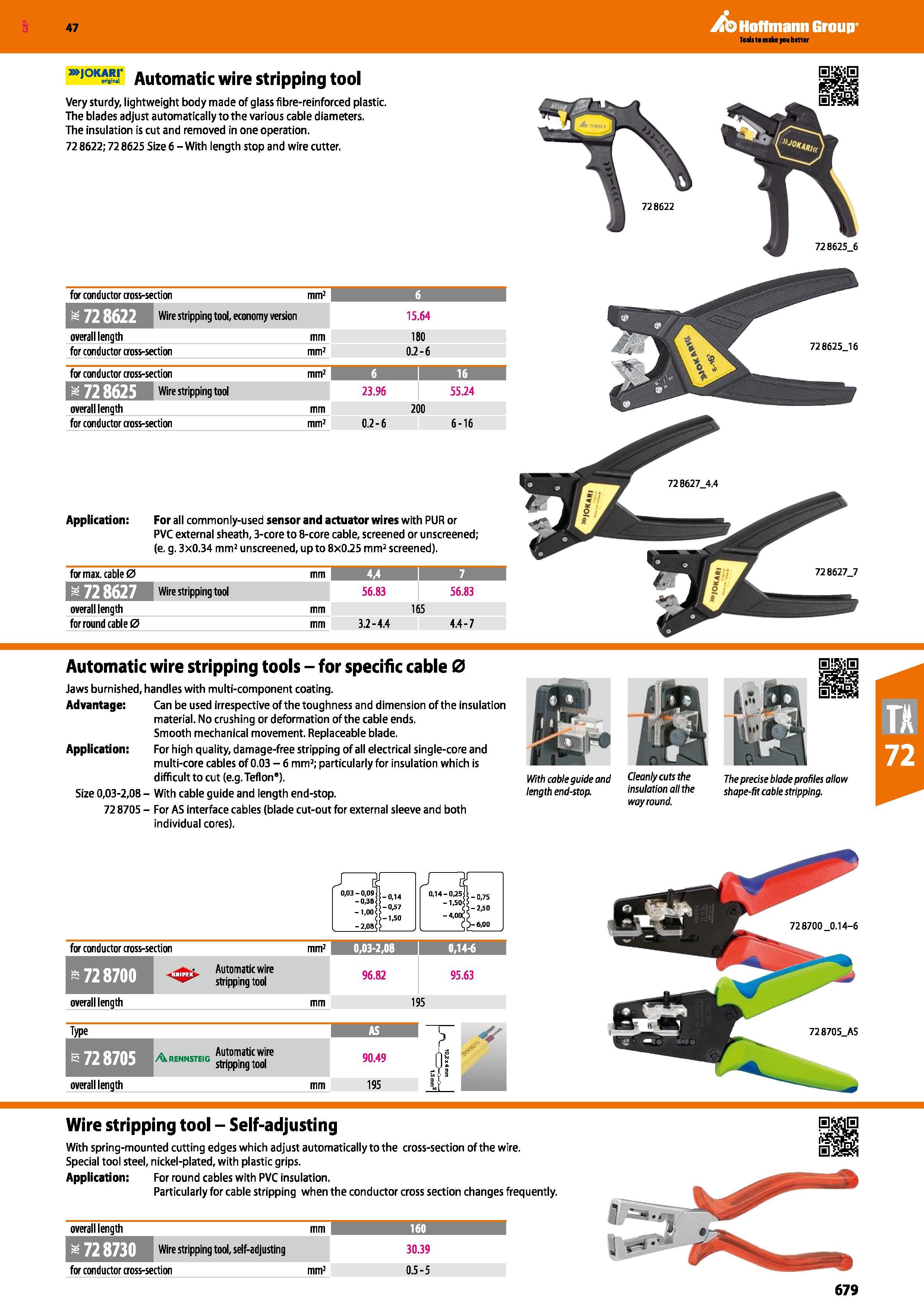

Hoffmann Group 47 >,OK R.1 Automatic wire stripping tool Very sturdy, lightweight body made of glass fibre-reinforced plastic. The blades adjust automatically to the various cable diameters. The insulation is cut and removed in one operation. 72 8622; 728625 Size 6 - With length stop and wire cutter. 72 8625_6 for conductor cross-section mm2 6 1 Wire stripping tool, economy version 15.64 overall length mm 180 for conductor cross-section mm2 0.2-6 for conductor cross-section mm2 6 1 16 Wire stripping tool 23.96 55.24 overall length mm 200 for conductor cross-section mm2 0.2-6 6-16 Application: For all commonly-used sensor and actuator wires with PUR or PVC external sheath, 3-core to 8-core cable, screened or unscreened; (e. g. 3x0.34 mm unscreened, up to 8x0.25 mm2 screened). for max. cable 0 mm M 7 1 Wire stripping tool 56.83 56.83 overall length mm 165 for round cable 0 mm 3.2-4.4 4.4-7 Automatic wire stripping tools - for specific cable 0 Jaws burnished, handles with multi-component coating. Advantage: Can be used irrespective of the toughness and dimension of the insulation material. No crushing or deformation of the cable ends. Smooth mechanical movement. Replaceable blade. Application: For high quality, damage-free stripping of all electrical single-core and multi-core cables of 0.03 - 6 mm2; particularly for insulation which is difficult to cut (e.g. Teflon'). Size 0,03-2,08 - With cable guide and length end-stop. 72 8705 - For AS interface cables (blade cut-out for external sleeve and both individual cores). With cable guide and Cleanly cuts the length end-stop, insulation all the way round. The precise blade profiles allow shape-lit cable stripping. Type AS E 72 8705 a Automatic wire Arennsteig stripping tool 90.49 overall length mm 195 for conductor cross-section mm2 0,03-2,08 I 0,14-6 I fi 72 8700 Automatic wire stripping tool 96.82 95.63 overall length mm 195 Wire stripping tool - Self-adjusting With spring-mounted cutting edges which adjust automatically to the cross-section of the wire. Special tool steel, nickel-plated, with plastic grips. Application: For round cables with PVC insulation. Particularly for cable stripping when the conductor cross section changes frequently. overall length mm 160 72 8730 Wire stripping tool, self-adjusting 30.39 for conductor cross-section mm2 0J-5 728625_16 72 8705_AS 728700_0.14-6 679
