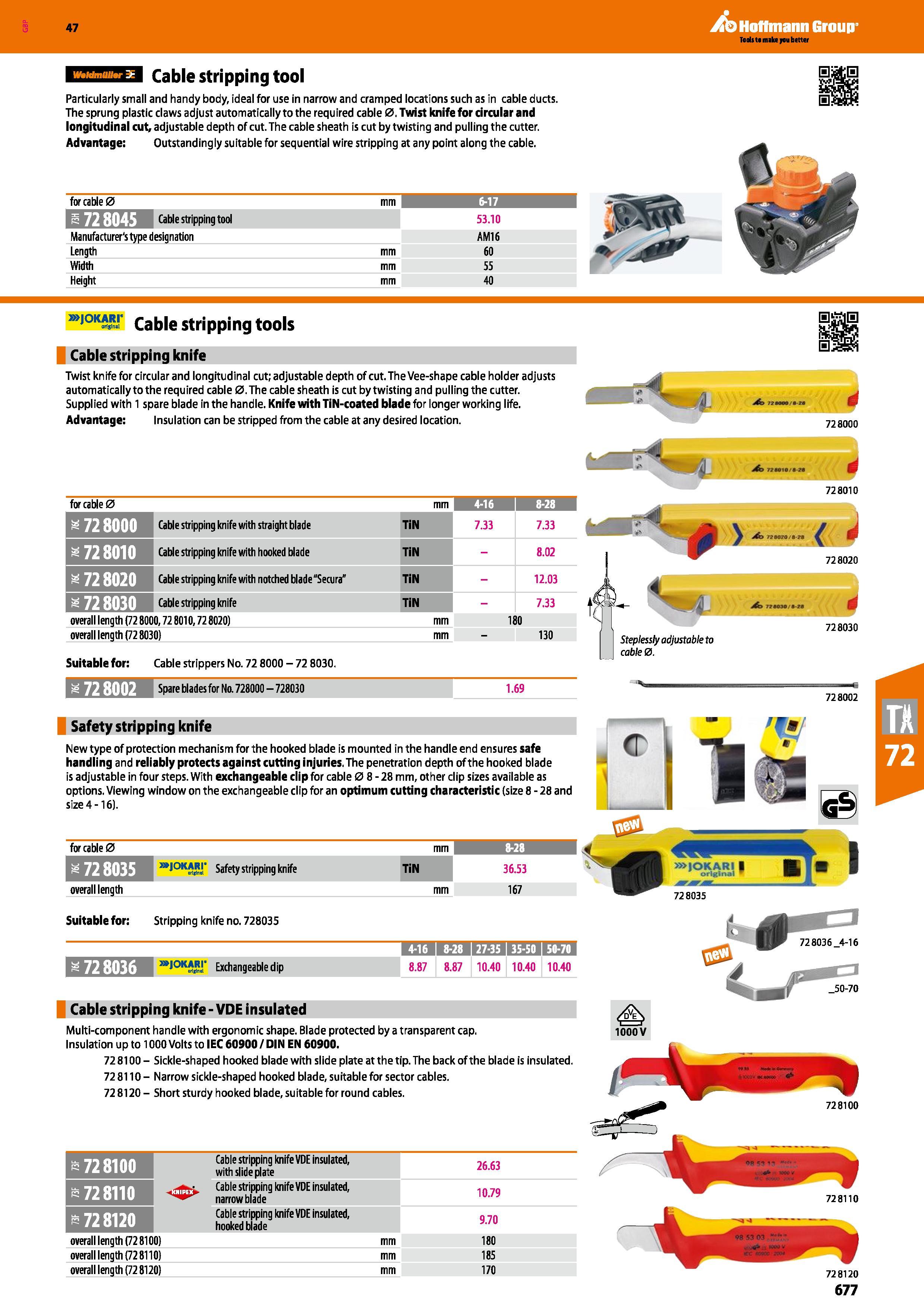

Hoffmann Group 47 Cable stripping tool Particularly small and handy body, ideal for use in narrow and cramped locations such as in cable ducts. The sprung plastic claws adjust automatically to the required cable 0. Twist knife for circular and longitudinal cut, adjustable depth of cut. The cable sheath is cut by twisting and pulling the cutter. Advantage: Outstandingly suitable for sequential wire stripping at any point along the cable. for cable 0 mm 6-17 I Cable stripping tool 53.10 Manufacturer's type designation AMI 6 Length mm 60 Width mm 55 Height mm 40 >jokari' cgbig stripping tools Cable stripping knife Twist knife for circular and longitudinal cut; adjustable depth of cut. The Vee-shape cable holder adjusts automatically to the required cable 0.The cable sheath is cut by twisting and pulling the cutter. Supplied with 1 spare blade in the handle. Knife with TiN-coated blade for longer working life. Advantage: Insulation can be stripped from the cable at any desired location. Bj H > rrmoo r - 728000 for cable 0 mm 4-16 8-28 72 8000 Cable stripping knife with straight blade TiN 7.33 7.33 -728010 Cable stripping knife with hooked blade TiN - 8.02 72 8020 Cable stripping knife with notched blade“Secura” TiN - 12.03 -728030 Cable stripping knife TiN - 7.33 overall length (72 8000,72 8010,72 8020) mm 180 overall length (72 8030) mm - 130 Suitable for: Cable strippers No. 72 8000 - 72 8030. 728002 Spare blades for Na 728000 - 728030 1.69 Safety stripping knife New type of protection mechanism for the hooked blade is mounted in the handle end ensures safe handling and reliably protects against cutting injuries. The penetration depth of the hooked blade is adjustable in four steps. With exchangeable clip for cable 0 8 - 28 mm, other clip sizes available as options. Viewing window on the exchangeable clip for an optimum cutting characteristic (size 8 - 28 and size 4-16). for cable 0 mm 8-28 I 1 Safety stripping knife TiN 36.53 overall length mm 167 Suitable for: Stripping knife no. 728035 72 8036 ",OK ".r Exchangeable dip Cable stripping knife - VDE insulated 8.87 8.87 10.40 10.40 10.40 Multi-component handle with ergonomic shape. Blade protected by a transparent cap. Insulation up to 1000Volts to IEC60900/DIN EN 60900. 728100- Sickle-shaped hooked blade with slide plate at the tip. The back of the blade is insulated. 72 8110 - Narrow sickle-shaped hooked blade, suitable for sector cables. 728120- Short sturdy hooked blade, suitable for round cables. J6e >7mio'iti 728010 > < 728020 Steplessly adjustable to cable 0. > 77 030 B te - 728030 728002 a 728100 Cable stripping knife VDE insulated, with slide plate 26.63 a 72 8110 Cable stripping knife VDE insulated, narrow blade 10.79 -728120 Cable stripping knife VDE insulated, hooked blade 9.70 overall length (728100) mm 180 overall length (728110) mm 185 overall length (72 8120) mm 170
