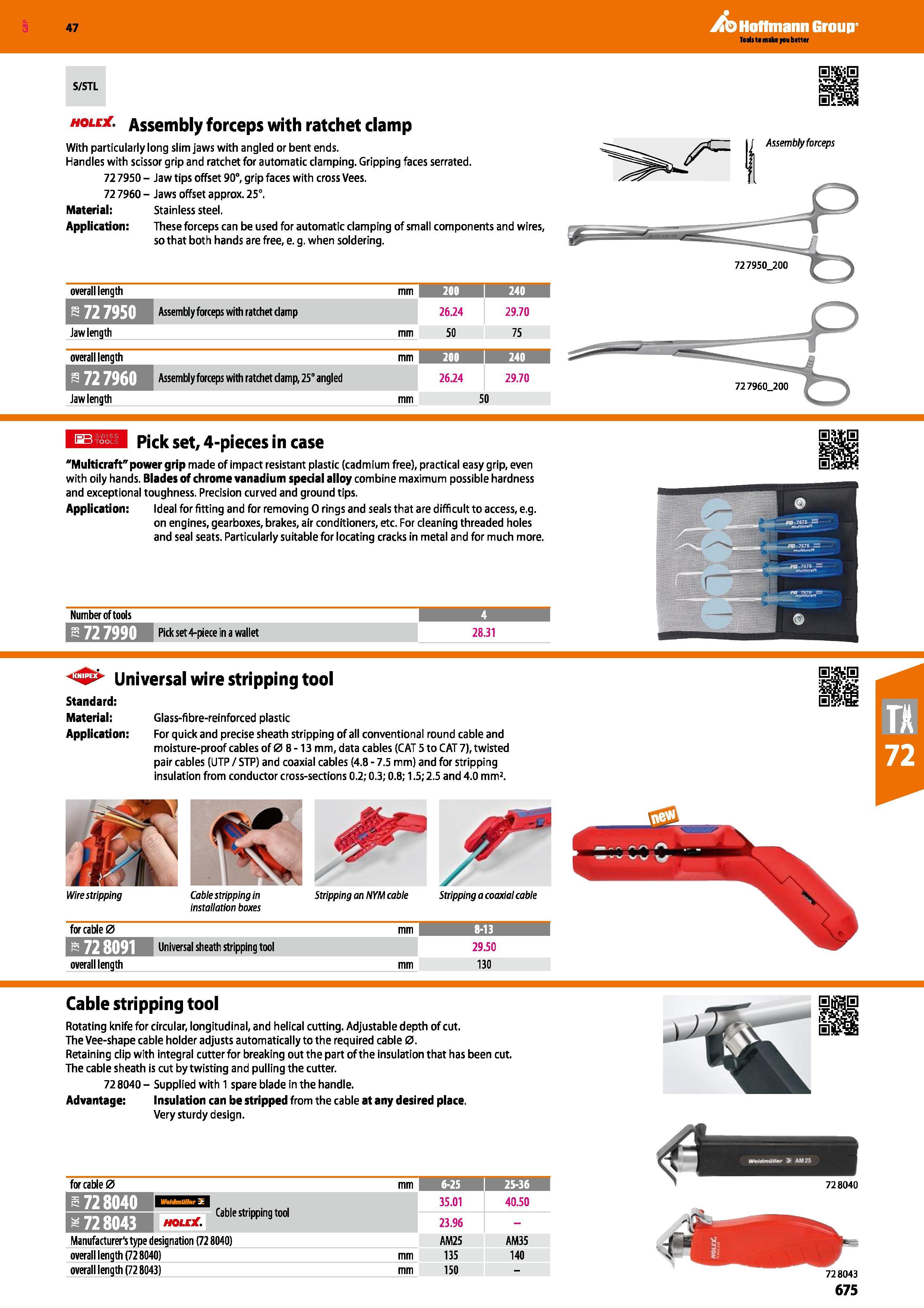

hole . Assembly forceps with ratchet clamp With particularly long slim jaws with angled or bent ends. Handles with scissor grip and ratchet for automatic clamping. Gripping faces serrated. 72 7950 - Jaw tips offset 90°, grip faces with cross Vees. 72 7960 - Jaws offset approx. 25°. Material: Stainless steel. Application: These forceps can be used for automatic clamping of small components and wires, so that both hands are free, e. g. when soldering. overall length mm 200 : 240 Assembly forceps with ratchet damp 26.24 29.70 Jaw length mm 50 75 overall length mm 200 I 240 I Assembly forceps with ratchet clamp, 25° angled 26.24 29.70 Jaw length mm 50 Pick set, 4-pieces in case "Multicraft" power grip made of impact resistant plastic (cadmium free), practical easy grip, even with oily hands. Blades of chrome vanadium special alloy combine maximum possible hardness and exceptional toughness. Precision curved and ground tips. Application: Ideal for fitting and for removing 0 rings and seals that are difficult to access, e.g. on engines, gearboxes, brakes, air conditioners, etc. For cleaning threaded holes and seal seats. Particularly suitable for locating cracks in metal and for much more. 133 TOOLS Number of tools 727990 Pick set -4-piece In a wallet 28.31 Universal wire stripping tool Standard: Material: Application: Glass-fibre-reinforced plastic For quick and precise sheath stripping of all conventional round cable and moisture-proof cables of 0 8 -13 mm, data cables (CAT 5 to CAT 7), twisted pair cables (UTP / STP) and coaxial cables (4.8 - 7.5 mm) and for stripping insulation from conductor cross-sections 0.2; 0.3; 0.8; 1.5; 2.5 and 4.0 mm2. Wirestripping Cable stripping in installation boxes Stripping an NYM cable Stripping a coaxial cable for cable 0 mm 8-13 1 I fi 72 8091 Universal sheath stripping tool 29.50 overall length mm 130 Cable stripping tool Rotating knife for circular, longitudinal, and helical cutting. Adjustable depth of cut. The Vee-shape cable holder adjusts automatically to the required cable 0. Retaining clip with integral cutter for breaking out the part of the insulation that has been cut. The cable sheath is cut by twisting and pulling the cutter. 72 8040 - Supplied with 1 spare blade in the handle. Advantage: Insulation can be stripped from the cable at any desired place. Very sturdy design. for cable 0 mm 6-25 25-36 35.01 40.50 Cable stripping tool EfrffljlTtM holcjC. 23.96 - Manufacturer's type designation (72 8040) AM25 AM35 overall length (728040) mm 135 140 overall length (72 8043) mm 150 - 728040 728043
