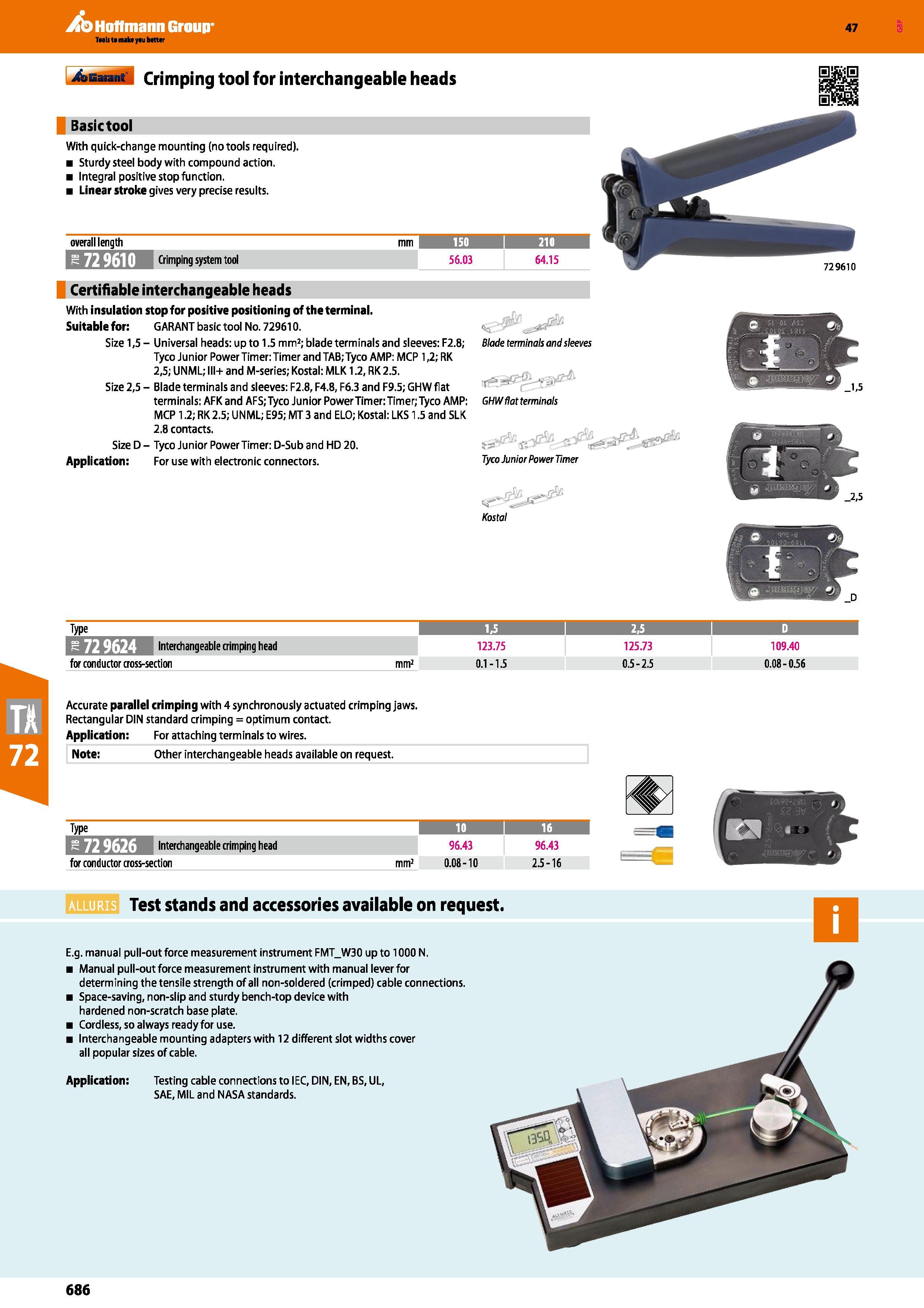

Hoffmann Group 47 Crimping tool for interchangeable heads Basic tool With quick-change mounting (no tools required). Sturdy steel body with compound action. Integral positive stop function. Linear stroke gives very precise results. overall length mm 150 1 2H 1 WfTrlffl Crimping system tool 56.03 64.15 Certifiable interchangeable heads With insulation stop for positive positioning of the terminal. Suitable for: GARANT basic tool No. 729610. Size 1,5 - Universal heads: up to 1.5 mm2; blade terminals and sleeves: F2.8; Tyco Junior Power Timer: Timer and TAB; Tyco AMP: MCP 1,2; RK 2,5; UNML; 111+ and M-series; Kostal: MLK1.2, RK 2.5. Size 2,5 - Blade terminals and sleeves: F2.8, F4.8, F6.3 and F9.5; GHW flat terminals: AFK and AFS;Tyco Junior Power Timer: Timer; Tyco AMP: MCP 1.2; RK 2.5; UNML; E95; MT 3 and ELO; Kostal: LKS1.5 and SLK 2.8 contacts. Size D- Tyco Junior Power Timer: D-Suband HD 20. Application: For use with electronic connectors. Blade terminals and sleeves GHW flat terminals t - 1 Tyco Junior Power Timer 'uf “ sR-' Kostal Type 1,5 1 2,5 Interchangeable crimping head 123.75 125.73 109.40 for conductor cross-section mm2 0.1-1.5 0.5-2.5 0.08-0.56 Accurate parallel crimping with 4 synchronously actuated crimping jaws. Rectangular DIN standard crimping = optimum contact. Application: For attaching terminals to wires. Note: Other interchangeable heads available on request. Type 1 10 16 Interchangeable crimping head 96.43 96.43 for conductor cross-section mm2 0.08-10 2.5-16 ALLURIS Test stands and accessories available on request. E.g. manual pull-out force measurement instrument FMT_W30 up to 1000 N. Manual pull-out force measurement instrument with manual lever for determining the tensile strength of all non-soldered (crimped) cable connections. Space-saving, non-slip and sturdy bench-top device with hardened non-scratch base plate. Cordless, so always ready for use. Interchangeable mounting adapters with 12 different slot widths cover all popular sizes of cable. Application: Testing cable connections to IEC, DIN, EN, BS, UL, SAE, MIL and NASA standards. 729610 686
