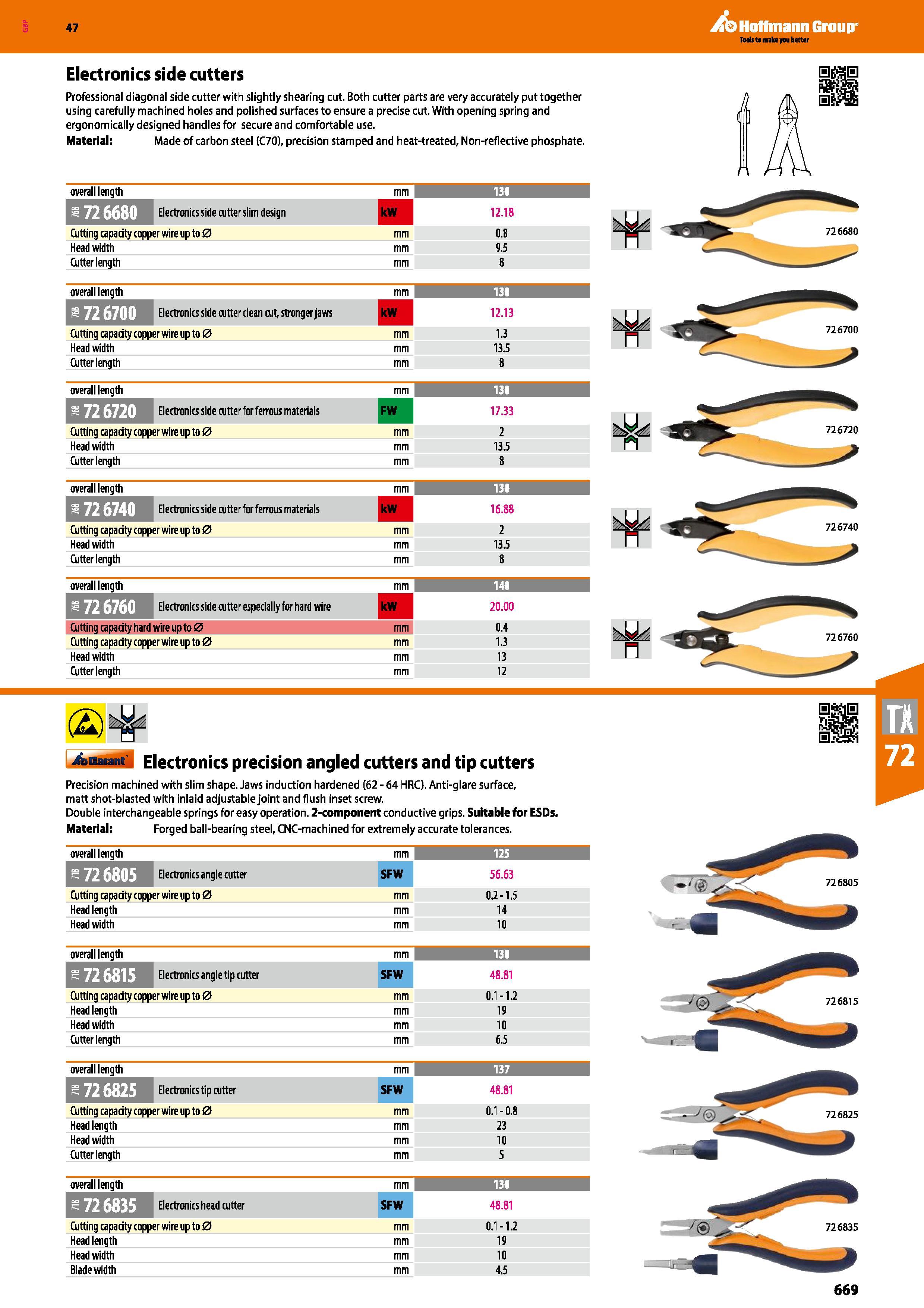

Electronics side cutters Professional diagonal side cutter with slightly shearing cut. Both cutter parts are very accurately put together using carefully machined holes and polished surfaces to ensure a precise cut. With opening spring and ergonomically designed handles for secure and comfortable use. Material: Made of carbon steel (C70), precision stamped and heat-treated, Non-reflective phosphate. overall length mm 130 Electronics side cutter slim design kW 12.18 Cutting capacity copper wire up to 0 mm 0.8 Head width mm 9.5 Cutter length mm 8 overall length mm 130 1 i'Y i iTlM Electronics side cutter clean cut, stronger jaws kW 12.13 Cutting capacity copper wire up to 0 mm 1.3 Head width mm 13.5 Cutter length mm 8 overall length mm 130 Electronics side cutter for ferrous materials FW 17.33 Cutting capacity copper wire up to 0 mm 2 Head width mm 13.5 Cutter length mm 8 overall length mm 130 Electronics side cutter for ferrous materials kW 16.88 Cutting capacity copper wire up to 0 mm 2 Head width mm 13.5 Cutter length mm 8 overall length mm 140 I -Jfli'Y/i'jlB Electronics side cutter especially for hard wire kW 20.00 Cutting capacity hard wire upto 0 mm 0.4 Cutting capacity copper wire up to 0 mm 1.3 Head width mm 13 Cutter length mm 12 n 726760 (2) XbGarant' Electronics precision angled cutters and tip cutters Precision machined with slim shape. Jaws induction hardened (62 - 64 HRC). Anti-glare surface, matt shot-blasted with inlaid adjustable joint and flush inset screw. Double interchangeable springs for easy operation. 2-component conductive grips. Suitable for ESDs. Material: Forged ball-bearing steel, CNC-machined for extremely accurate tolerances. overall length mm 125 Electronics angle cutter SFW 56.63 Cutting capacity copper wire up to 0 mm 0.2-1.5 Head length mm 14 Head width mm 10 overall length mm 130 1 Electronics angle tip cutter SFW 48.81 Cutting capacity copper wire up to 0 mm 0.1-1.2 Head length mm 19 Head width mm 10 Cutter length mm 6.5 overall length 137 Electronics tip cutter SFW 48.81 Cutting capacity copper wire up to 0 mm 0.1-0.8 Head length mm 23 Head width mm 10 Cutter length mm 5 overall length a 130 Electronics head cutter SFW 48.81 Cutting capacity copper wire up to 0 mm 0.1-1.2 Head length mm 19 Head width mm 10 Blade width mm 4.5 ESAE 669
