666 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.666

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 666 0666 ENG Lab2u

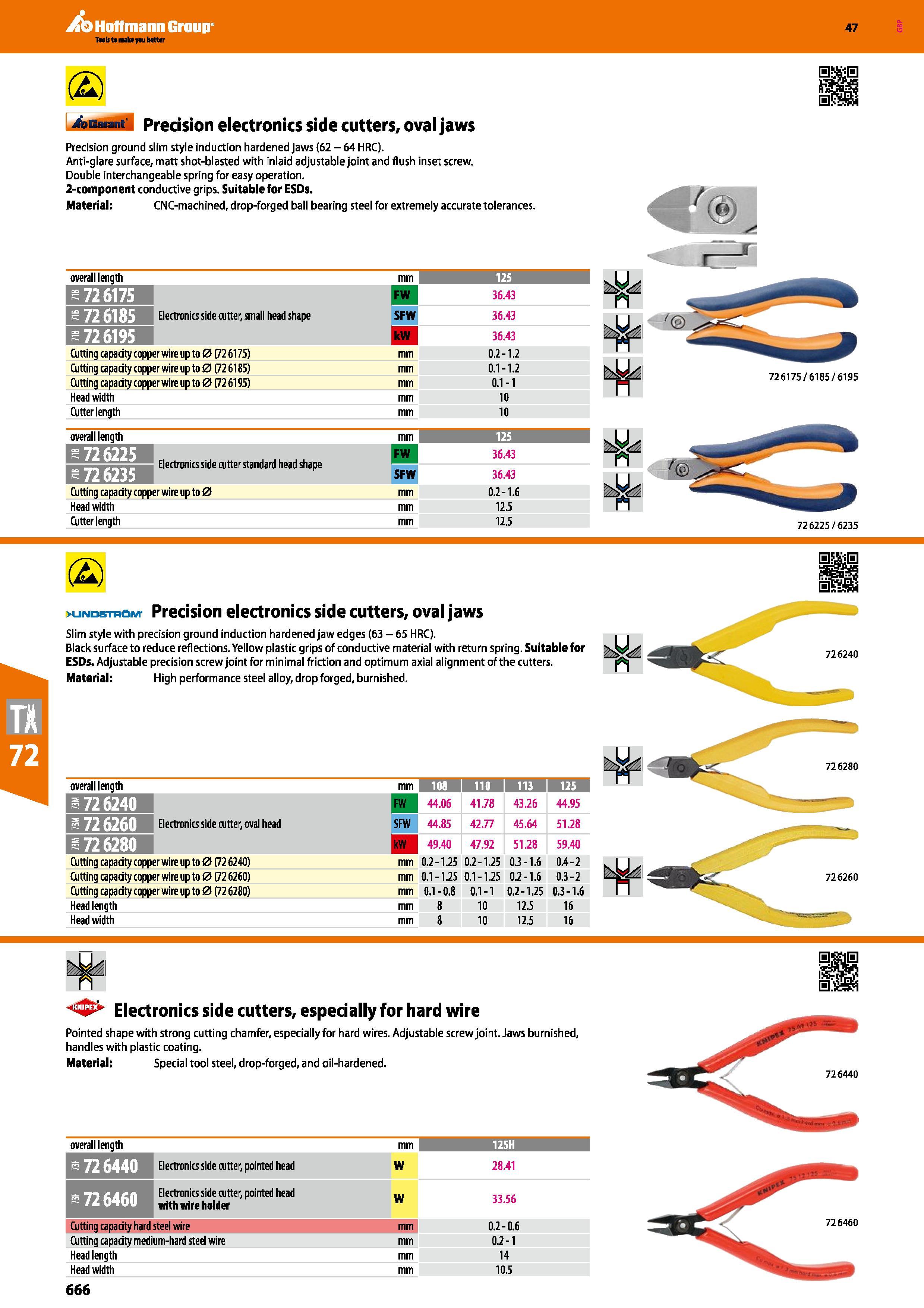

Hoffmann Group 47 (2) bGaiant Precision electronics side cutters, oval jaws Precision ground slim style induction hardened jaws (62 - 64 HRC). Anti-glare surface, matt shot-blasted with inlaid adjustable joint and flush inset screw. Double interchangeable spring for easy operation. 2-component conductive grips. Suitable for ESDs. Material: CNC-machined, drop-forged ball bearing steel for extremely accurate tolerances. overall length mm 125 I -726175 FW 36.43 -726185 Electronics side cutter, small head shape SFW 36.43 "726195 kW 36.43 Cutting capacity copper wire up to 0 (72 6175) mm 0.2-1.2 Cutting capacity copper wire up to 0 (72 6185) mm 0.1-1.2 Cutting capacity copper wire up to 0 (72 6195) mm 0.1-1 Head width mm 10 Cutter length mm 10 overall length mm 125 I -726225 Electronics side cutter standard head shape FW 36.43 “ 72 6235 SFW 36.43 Cutting capacity copper wire up to 0 mm 0.2-1.6 Head width mm 12.5 Cutter length mm 12.5 n n 726175/6185/6195 1 1 n 726225/6235 (2) >uiMoemaivr Precision electronics side cutters, oval jaws Slim style with precision ground induction hardened jaw edges (63-65 HRC). Black surface to reduce reflections. Yellow plastic grips of conductive material with return spring. Suitable for ESDs. Adjustable precision screw joint for minimal friction and optimum axial alignment of the cutters. Material: High performance steel alloy, drop forged, burnished. overall length mm 108 110 113 125 726240 Electronics side cutter, oval head FW 44.06 41.78 43.26 44.95 -726260 SFW 44.85 42.77 45.64 51.28 5 726280 kW 49.40 47.92 51.28 59.40 Cutting capacity copper wire up to 0 (72 6240) mm 0.2-1.25 0.2-1.25 0.3-1.6 0.4-2 Cutting capacity copper wire up to 0 (72 6260) mm 0.1-1.25 0.1-1.25 0.2-1.6 0.3-2 Cutting capacity copper wire up to 0 (72 6280) mm 0.1-0.8 0.1-1 0.2-1.25 0.3-1.6 Head length mm 8 10 12.5 16 Head width mm 8 10 12.5 16 n Electronics side cutters, especially for hard wire Pointed shape with strong cutting chamfer, especially for hard wires. Adjustable screw joint. Jaws burnished, handles with plastic coating. Material: Special tool steel, drop-forged, and oil-hardened. overall length mm 125H 1 fi 72 6440 Electronics side cutter, pointed head w 28.41 fi 72 6460 Electronics side cutter, pointed head with wire holder w 33.56 Cutting capacity hard steel wire mm 0.2-0.6 Cutting capacity medium-hard steel wire mm 0.2-1 Head length mm 14 Head width mm 10.5 726260 726440 726460
