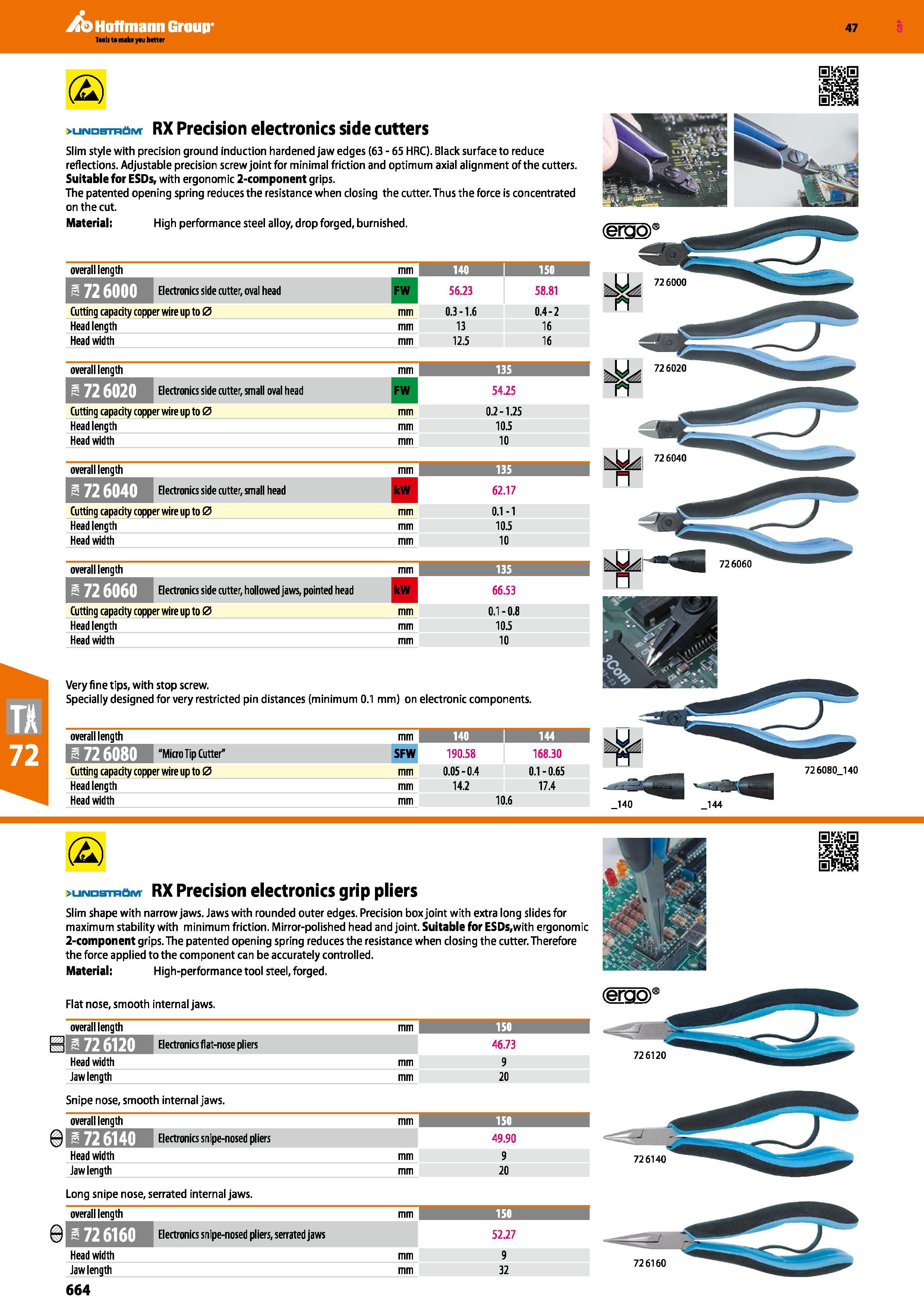

664 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.664

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 664 0664 ENG Lab2u

Hoffmann Group 47 (S) >UIMDSTRt)lVr RX Precision electronics side cutters Slim style with precision ground induction hardened jaw edges (63-65 HRC). Black surface to reduce reflections. Adjustable precision screw joint for minimal friction and optimum axial alignment of the cutters. Suitable for ESDs, with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the cutter. Thus the force is concentrated on the cut. Material: High performance steel alloy, drop forged, burnished. overall length 72 6000 Electronics side cutter, oval head FW 56.23 58.81 Cutting capacity copper wire up to 0 mm 0.3-1.6 0.4-2 Head length mm 13 16 Head width mm 12,5 16 overall length mm 135 I 72 6020 Electronics side cutter, small oval head FW 54.25 Cutting capacity copper wire up to 0 mm 0.2-1.25 Head length mm 105 Head width mm 10 overall length mm 135 Electronics side cutter, small head kW 62.17 Cutting capacity copper wire up to 0 mm 0.1-1 Head length mm 10.5 Head width mm 10 overall length mm 135 Electronics side cutter, hollowed jaws, pointed head kW 66.53 Cutting capacity copper wire up to 0 mm 0,1-0.8 Head length mm 10.5 Head width mm 10 Very fine tips, with stop screw. Specially designed for very restricted pin distances (minimum 0.1 mm) on electronic components. overall length mm 140 1 144 8 72 6080 EBB SFW 190.58 168.30 Cutting capacity copper wire up to 0 mm 0.05-0.4 0.1-0.65 Head length mm 14.2 17.4 Head width mm 10.6 (2) >uiMDsmOivr RX Precision electronics grip pliers Slim shape with narrow jaws. Jaws with rounded outer edges. Precision box joint with extra long slides for maximum stability with minimum friction. Mirror-polished head and joint. Suitable for ESDs,with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the cutter. Therefore the force applied to the component can be accurately controlled. Material: High-performance tool steel, forged. Flat nose, smooth internal jaws. overall length mm 150 i j=l ££ 9 Electronicsflat-nose pliers 46.73 Head width Jaw length Snipe nose, smooth internal jaws. mm 9 20 overall length mm 150 1 726140 Electronics snipe-nosed pliers 49.90 Head width mm 9 Jaw length mm 20 Long snipe nose, serrated internal jaws. overall length mm 150 1 "726160 Electronics snipe-nosed pliers, serrated jaws 52.27 Head width mm 9 Jaw length mm 32 726160 664 726000 726020 726040 726060
