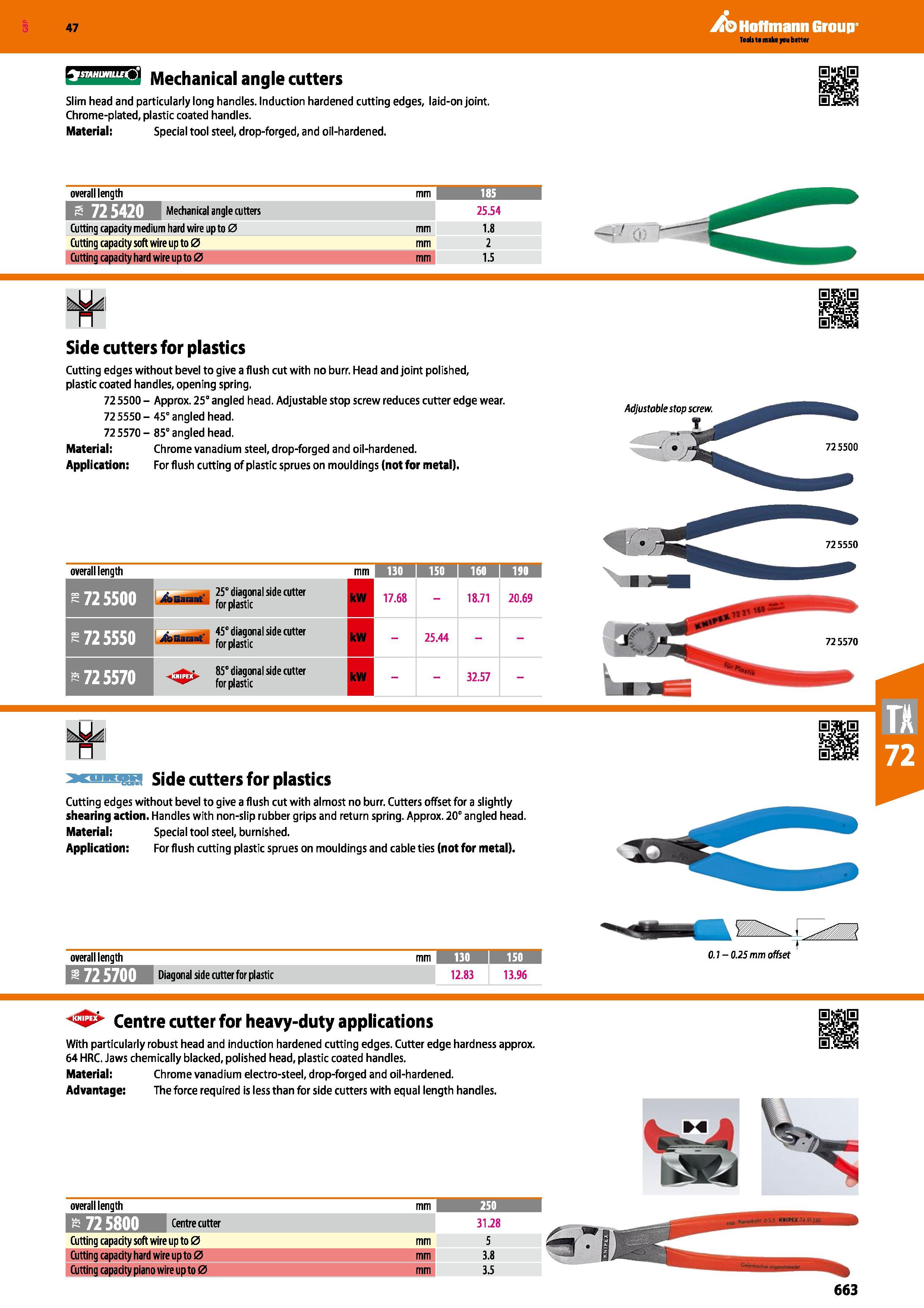

663 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.663

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 663 0663 ENG Lab2u

Hoffmann Group 47 Mechanical angle cutters Slim head and particularly long handles. Induction hardened cutting edges, laid-on joint. Chrome-plated, plastic coated handles. Material; Special tool steel, drop-forged, and oil-hardened. overall length mm 185 j Mechanical angle cutters 25.54 Cutting capacity medium hard wire up to 0 mm 1.8 Cutting capacity soft wire up to 0 mm 2 Cutting capacity hard wire upto 0 mm 1.5 A Side cutters for plastics Cutting edges without bevel to give a flush cut with no burr. Head and joint polished, plastic coated handles, opening spring. 72 5500 - Approx. 25° angled head. Adjustable stop screw reduces cutter edge wear. 72 5550 - 45° angled head. 725570- 85° angled head. Material; Chrome vanadium steel, drop-forged and oil-hardened. Application: For flush cutting of plastic sprues on mouldings (not for metal). overall length mm 130 150 160 190 i 25° diagonal side cutter for plastic kW 17.68 - 18.71 20.69 e 72 5550 i 45° diagonal side cutter for plastic kW - 25.44 ft 72 5570 85° diagonal side cutter for plastic kW 32.57 - Side cutters for plastics Cutting edges without bevel to give a flush cut with almost no burr. Cutters offset for a slightly shearing action. Handles with non-slip rubber grips and return spring. Approx. 20° angled head. Material; Special tool steel, burnished. Application: For flush cutting plastic sprues on mouldings and cable ties (not for metal). overall length Diagonal side cutter for plastic 130 150 12.83 13.96 0.1 - 0.25 mm offset 3 Centre cutter for heavy-duty applications With particularly robust head and induction hardened cutting edges. Cutter edge hardness approx. 64 HRC. Jaws chemically blacked, polished head, plastic coated handles. Material; Chrome vanadium electro-steel, drop-forged and oil-hardened. Advantage: The force required is less than for side cutters with equal length handles. overall length mm 250 f TXTlTiTi H Centre cutter 31.28 Cutting capacity soft wire up to 0 mm 5 Cutting capacity hard wire upto 0 mm 3.8 Cutting capacity piano wire upto 0 mm 3.5 663 725500 Adjustable stop screw.
