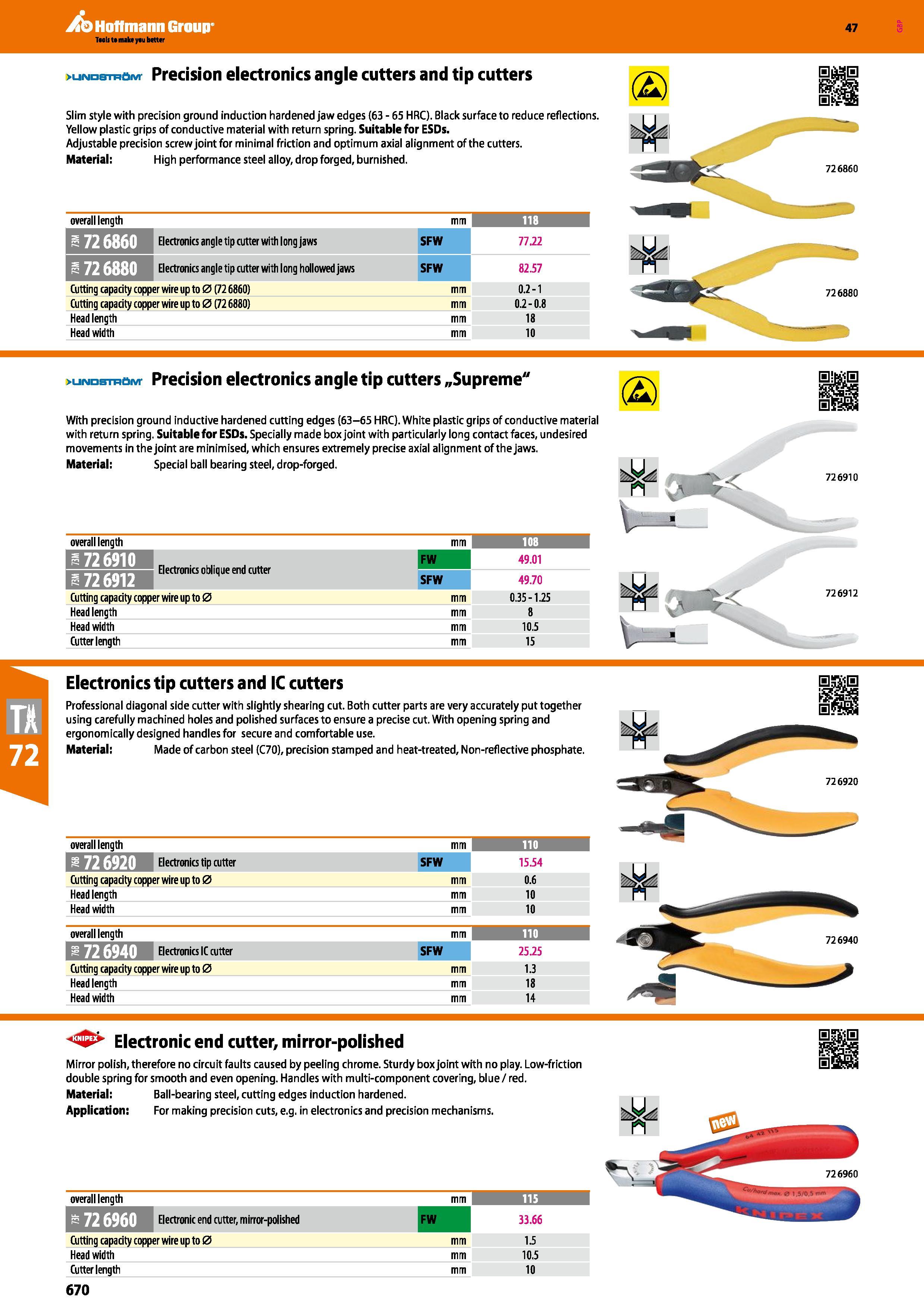

670 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.670

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 670 0670 ENG Lab2u

Hoffmann Group 47 >uNDsmoivr Precision electronics angle cutters and tip cutters Slim style with precision ground induction hardened jaw edges (63 - 65 HRC). Black surface to reduce reflections. Yellow plastic grips of conductive material with return spring. Suitable for ESDs. Adjustable precision screw joint for minimal friction and optimum axial alignment of the cutters. Material: High performance steel alloy, drop forged, burnished. (2) overall length mm 118 Electronics angle tip cutter with long jaws SFW 77.22 flIKU Electronics angle tip cutter with long hollowed jaws SFW 82.57 Cutting capacity copper wire up to 0 (72 6860) mm 0.2-1 Cutting capacity copper wire up to 0 (72 6880) mm 0.2-0.8 Head length mm 18 Head width mm 10 726880 >uiMDsmoivr Precision electronics angle tip cutters „Supreme" With precision ground inductive hardened cutting edges (63-65 HRC). White plastic grips of conductive material with return spring. Suitable for ESDs. Specially made box joint with particularly long contact faces, undesired movements in the joint are minimised, which ensures extremely precise axial alignment of the jaws. Material: Special ball bearing steel, drop-forged. (2) overall length mm 108 72 6910 Electronics oblique end cutter FW 49.01 72 6912 SFW 49.70 Cutting capacity copper wire up to 0 mm 0.35-1.25 Head length mm 8 Head width mm 10.5 Cutter length mm 15 Electronics tip cutters and 1C cutters Professional diagonal side cutter with slightly shearing cut. Both cutter parts are very accurately put together using carefully machined holes and polished surfaces to ensure a precise cut. With opening spring and ergonomically designed handles for secure and comfortable use. Material: Made of carbon steel (C70), precision stamped and heat-treated, Non-reflective phosphate. overall length mm 110 I Electronics tip cutter SFW 15.54 Cutting capacity copper wire up to 0 mm 0.6 Head length mm 10 Head width mm 10 overall length mm 110 i 1 s 72 6940 SFW 25.25 Cutting capacity copper wire up to 0 mm 1.3 Head length mm 18 Head width mm 14 Electronic end cutter, mirror-polished Mirror polish, therefore no circuit faults caused by peeling chrome. Sturdy box joint with no play. Low-friction double spring for smooth and even opening. Handles with multi-component covering, blue/ red. Material: Ball-bearing steel, cutting edges induction hardened. Application: For making precision cuts, e.g. in electronics and precision mechanisms. overall length mm 113 f TtitB Electronic end cutter, mirror-polished FW 33.66 Cutting capacity copper wire up to 0 mm 1.5 Head width mm 10.5 Cutter length mm 10 670 726910 726912 726940
