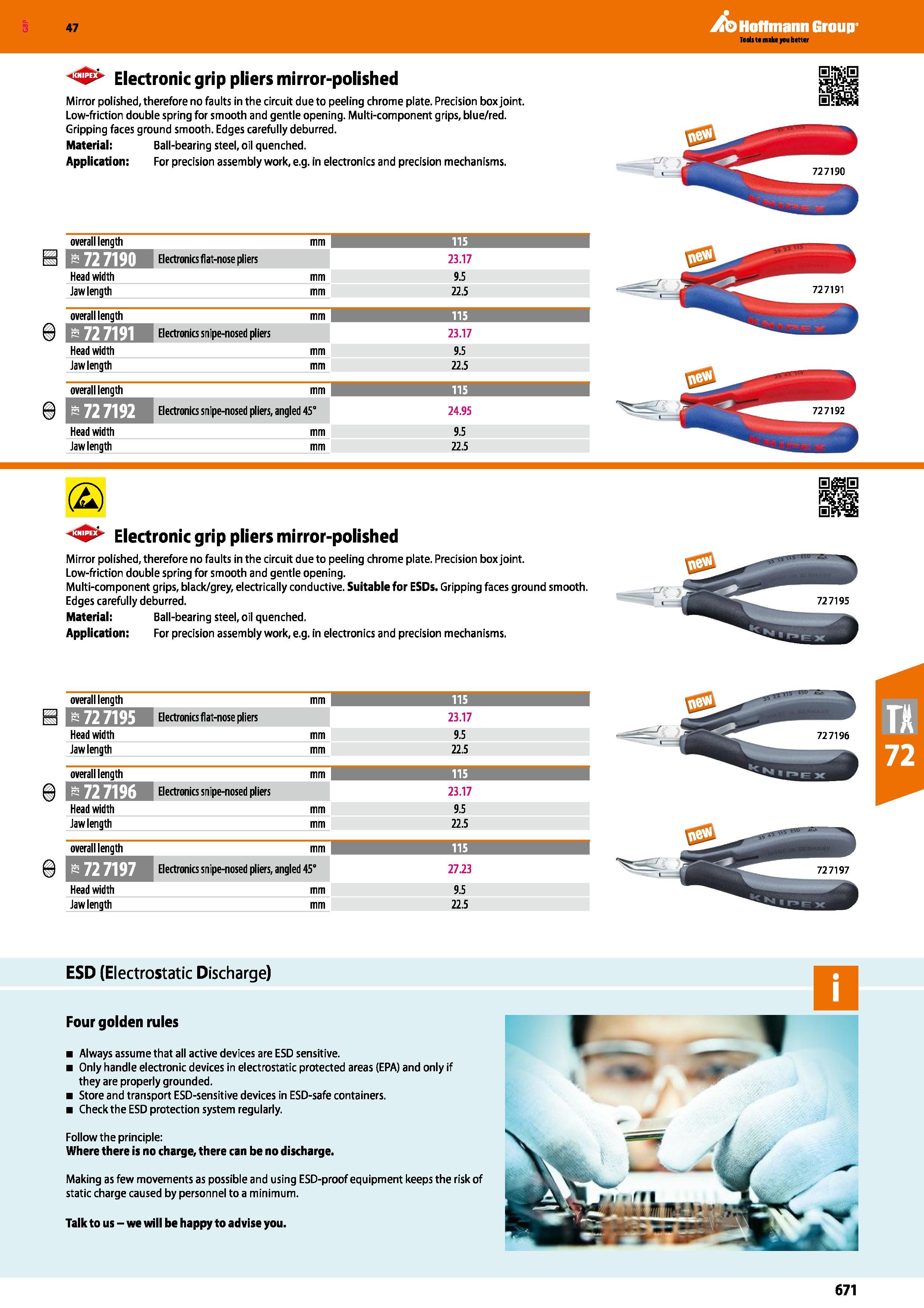

671 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.671

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 671 0671 ENG Lab2u

Hoffmann Group 47 Electronic grip pliers mirror-polished Mirror polished, therefore no faults in the circuit due to peeling chrome plate. Precision box joint. Low-friction double spring for smooth and gentle opening. Multi-component grips, blue/red. Gripping faces ground smooth. Edges carefully deburred. Material: Ball-bearing steel, oil quenched. Application: For precision assembly work, e.g. in electronics and precision mechanisms. overall length mm 115 fi 72 7190 Electronics flat-nose pliers 23.17 Head width mm 9.5 Jaw length mm 22.5 overall length mm 115 fi 72 7191 Electronics snipe-nosed pliers 23.17 Head width mm 9.5 (2) 2 Electronic grip pliers mirror-polished Mirror polished, therefore no faults in the circuit due to peeling chrome plate. Precision box joint. Low-friction double spring for smooth and gentle opening. Multi-component grips, black/grey, electrically conductive. Suitable for ESDs. Gripping faces ground smooth. Edges carefully deburred. Material: Ball-bearing steel, oil quenched. Application: For precision assembly work, e.g. in electronics and precision mechanisms. overall length mm 115 fi 72 7195 Electronics flat-nose pliers 23.17 Head width Jaw length mm 9.5 22.5 overall length mm 115 b 72 7196 Electronics snipe-nosed pliers 23.17 Head width mm 9.5 Jaw length mm 22.5 overall length mm 115 I b 72 7197 Electronics snipe-nosed pliers, angled 45° 27.23 Head width mm 9.5 Jaw length mm 22.5 ESD Electrostatic Discharge) Four golden rules Always assume that all active devices are ESD sensitive. Only handle electronic devices in electrostatic protected areas (EPA) and only if they are properly grounded. Store and transport ESD-sensitive devices in ESD-safe containers. Check the ESD protection system regularly. Follow the principle: Where there is no charge, there can be no discharge. Making as few movements as possible and using ESD-proof equipment keeps the risk of static charge caused by personnel to a minimum. Talk to us - we will be happy to advise you. 727190 727191 671
