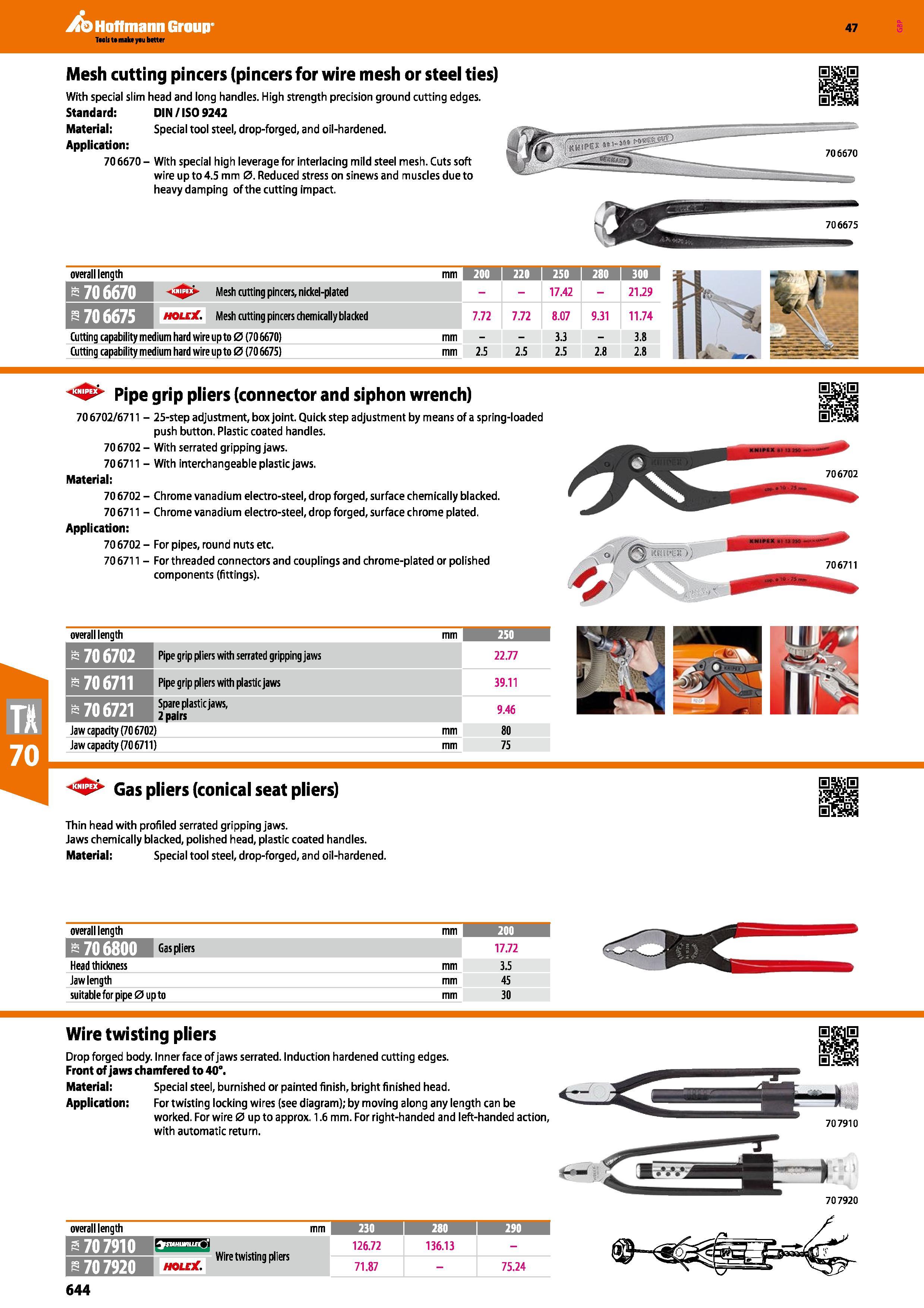

Hoffmann Group 47 Mesh cutting pincers (pincers for wire mesh or steel ties) With special slim head and long handles. High strength precision ground cutting edges. Standard: DIN /ISO 9242 Material: Special tool steel, drop-forged, and oil-hardened. Application: 706670- With special high leverage for interlacing mild steel mesh. Cuts soft wire upto4.5 mm 0. Reduced stress on sinews and muscles due to heavy damping of the cutting impact. overall length mm 200 1 220 1 250 1 280 I 300 Mesh cutting pincers, nickel-plated 17.42 - 21.29 holoC. Mesh cutting pincers chemically blacked 7.72 7.72 8.07 9.31 11.74 Cutting capability medium hard wire upto 0 (706670) mm 3.3 - 3.8 Cutting capability medium hard wire up to 0 (70 6675) mm 2.5 2.5 2.5 2.8 2.8 Pipe grip pliers (connector and siphon wrench) 706702/6711 706702-706711 -Material: 706702-706711 -Application: 706702-706711 - 25-step adjustment, box joint. Quick step adjustment by means of a spring-loaded push button. Plastic coated handles. With serrated gripping jaws. With interchangeable plastic jaws. Chrome vanadium electro-steel, drop forged, surface chemically blacked. Chrome vanadium electro-steel, drop forged, surface chrome plated. For pipes, round nuts etc. For threaded connectors and couplings and chrome-plated or polished components (fittings). overall length mm 250 1 Pipe grip pliers with serrated gripping jaws 22.77 fe 70 6711 Pipe grip pliers with plastic jaws 39.11 s 70 6721 Spare plastic jaws, 2 pairs 9.46 Jaw capacity (70 6702 ) mm 80 Jaw capacity (70 6711 ) mm 75 Gas pliers (conical seat pliers) Thin head with profiled serrated gripping jaws. Jaws chemically blacked, polished head, plastic coated handles. Material: Special tool steel, drop-forged, and oil-hardened. overall length mm 200 f I fe 70 6800 MM 17.72 Head thickness mm 3.5 Jaw length mm 45 suitable for pipe 0 upto mm 30 Wire twisting pliers Drop forged body. Inner face of jaws serrated. Induction hardened cutting edges. Front of jaws chamfered to 40°. Material: Special steel, burnished or painted finish, bright finished head. Application: For twisting locking wires (see diagram); by moving along any length can be worked. For wire 0 up to approx. 1.6 mm. For right-handed and left-handed action, with automatic return. overall length mm 230 280 290 s 70 7910 Wire twisting pliers HOLE . 126.72 136.13 707920 71.87 - 75.24 644
