641 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.641

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 641 0641 ENG Lab2u

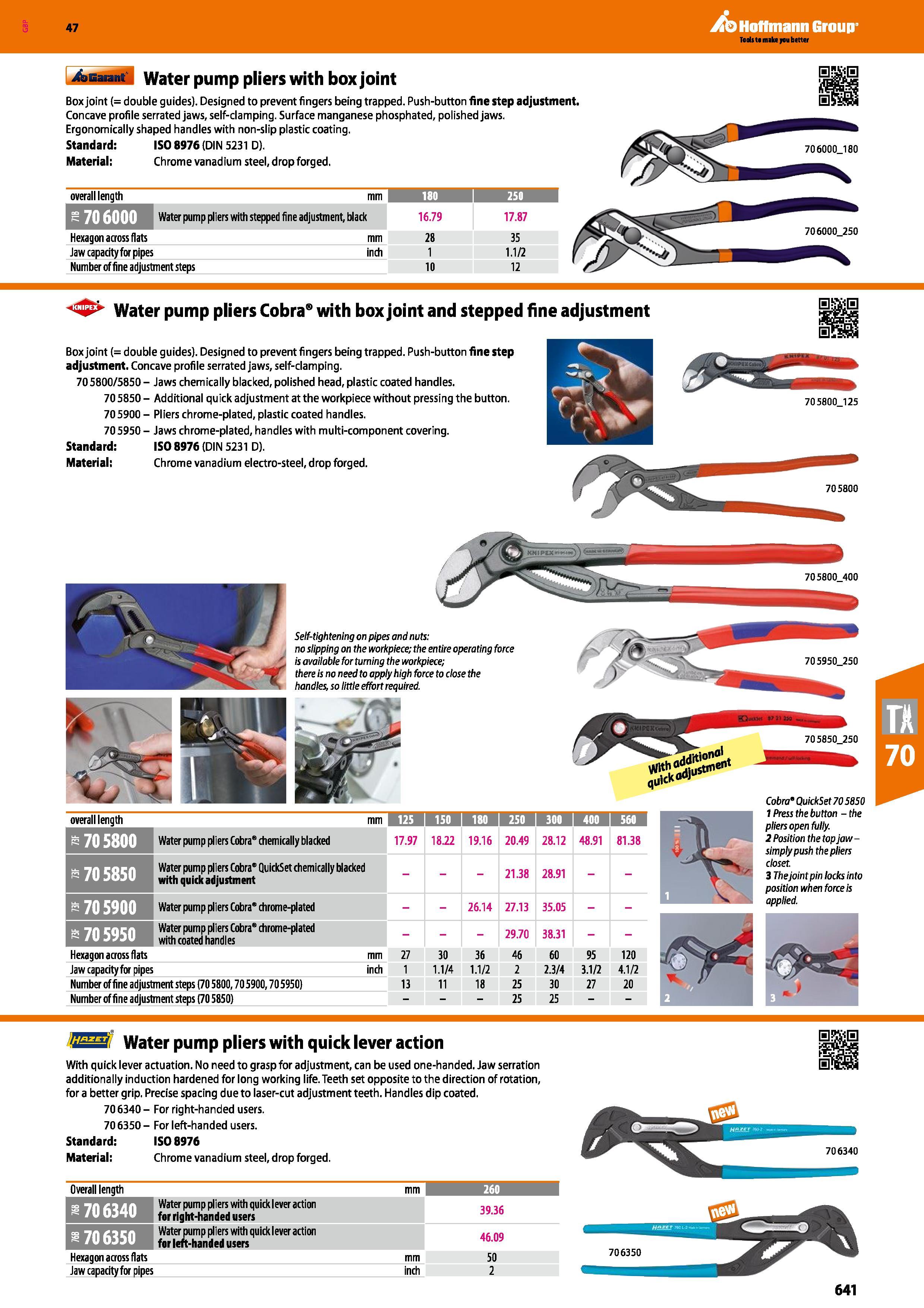

Hoffmann Group 47 overall length mm 180 i 250 706000 Water pump pliers with stepped fine adjustment, black 16.79 17.87 Hexagon across flats mm 28 35 Jaw capacity for pipes inch 1 1.1/2 Number of fine adjustment steps 10 12 4anu M Water pump pliers with box joint Box joint (= double guides). Designed to prevent fingers being trapped. Push-button fine step adjustment. Concave profile serrated jaws, self-damping. Surface manganese phosphated, polished jaws. Ergonomically shaped handles with non-slip plastic coating. Standard: ISO 8976 (DIN 5231 D). Material: Chrome vanadium steel, drop forged. 706000_180 706000_250 Water pump pliers Cobra with box joint and stepped fine adjustment Box joint (= double guides). Designed to prevent fingers being trapped. Push-button fine step adjustment. Concave profile serrated jaws, self-damping. 705800/5850 - Jaws chemically blacked, polished head, plastic coated handles. 70 5850 - Additional quick adjustment at the workpiece without pressing the button. 705900 - Pliers chrome-plated, plastic coated handles. 705950 - Jaws chrome-plated, handles with multi-component covering. Standard: ISO 8976 (DIN 5231 D). Material; Chrome vanadium electro-steel, drop forged. 705800_125 Water pump pliers with quick lever action With quick lever actuation. No need to grasp for adjustment, can be used one-handed. Jaw serration additionally induction hardened for long working life. Teeth set opposite to the direction of rotation, for a better grip. Precise spacing due to laser-cut adjustment teeth. Handles dip coated. 706340- For right-handed users. 706350- For left-handed users. Standard: ISO 8976 Material; Chrome vanadium steel, drop forged. Overall length mm 260 j Water pump pliers with quick lever action HklaiA for right-handed users 39.36 Water pump pliers with quick lever action for left-handed users 46.09 Hexagon across flats mm 50 Jaw capacity for pipes inch 2 overall length mm - 70 5800 Water pump pliers Cobra8 chemically blacked 17.97 18.22 19.16 20.49 28.12 48.91 81.38 fi 70 5850 Water pump pliers Cobra8 QuickSet chemically blacked with quick adjustment 21.38 28.91 705900 Water pump pliers Cobra chrome-plated 26.14 27.13 35.05 Water pump pliers Cobra8 chrome-plated with coated handles 29.70 38.31 Hexagon across flats mm 27 30 36 46 60 95 120 Jaw capacity for pipes inch 1 1.1/4 1.1/2 2 2.3/4 3.1/2 4.1/2 Number of fine adjustment steps (70 5800,705900,705950) 13 11 18 25 30 27 20 Number of fine adjustment steps (70 5850) 25 25 705800_400 Self-tightening on pipes and nuts: no slipping on the workpiece; the entire operating force is available for turning the workpiece; there is no need to apply high force to close the handles, so little effort required. 70 5950_250 Cobra QuickSet705850 1 Press the button - the pliers open fully. 2 Position the top jaw -simply push the pliers closet. 3 The joint pin locks into position when force is applied. 706340 641
