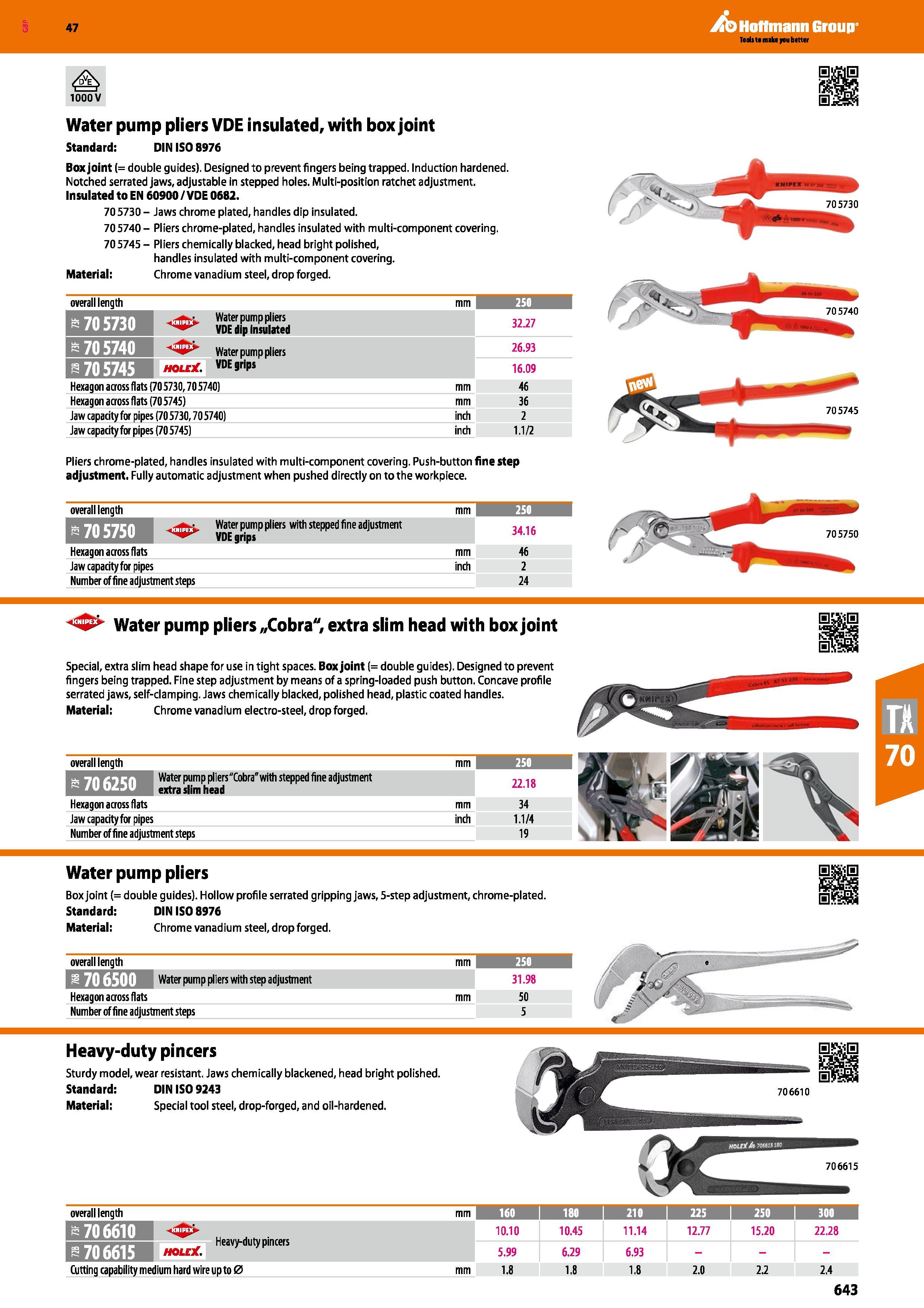

1000 V Water pump pliers VDE insulated, with box joint Standard: DIN ISO 8976 Box joint (= double guides). Designed to prevent fingers being trapped. Induction hardened. Notched serrated jaws, adjustable in stepped holes. Multi-position ratchet adjustment. Insulated to EN 60900/VDE 0682. 705730 - Jaws chrome plated, handles dip insulated. 705740 - Pliers chrome-plated, handles insulated with multi-component covering. 705745- Material: Pliers chemically blacked, head bright polished, handles insulated with multi-component covering. Chrome vanadium steel, drop forged. overall length mm 250 Water pump pliers VDE dip insulated 32.27 b 70 5740 Water pump pliers 26.93 3 705745 HOLCX. VDE grips 16.09 Hexagon across flats (70 5730,70 5740) mm 46 Hexagon across flats (70 5745) mm 36 Jaw capacity for pipes (70 5730,705740) inch 2 Jaw capacity for pipes (70 5745) inch 1.1/2 Pliers chrome-plated, handles insulated with multi-component covering. Push-button fine step adjustment. Fully automatic adjustment when pushed directly on to the workpiece. overall length mm 250 fi 70 5750 , Water pump pliers with stepped fine adjustment “ VDE grips 34.16 Hexagon across flats mm 46 Jaw capacity for pipes inch 2 Number of fine adjustment steps 24 3 Water pump pliers „Cobra", extra slim head with box joint Special, extra slim head shape for use in tight spaces. Box joint (= double guides). Designed to prevent fingers being trapped. Fine step adjustment by means of a spring-loaded push button. Concave profile serrated jaws, self-damping. Jaws chemically blacked, polished head, plastic coated handles. Material: Chrome vanadium electro-steel, drop forged. Water pump pliers Box joint (= double guides). Hollow profile serrated gripping jaws, 5-step adjustment, chrome-plated. Standard: DIN ISO 8976 Material: Chrome vanadium steel, drop forged. overall length mm 250 I iFHL'llIll Water pump pliers with step adiustment 31.98 Hexagon across flats mm 50 Number of fine adjustment steps 5 Heavy-duty pincers Sturdy model, wear resistant. Jaws chemically blackened, head bright polished. Standard: DIN ISO 9243 Material: Special tool steel, drop-forged, and oil-hardened. overall length mm 160 i 180 1 210 1 225 250 I 300 a 70 6610 10.10 10.45 11.14 12.77 15.20 22.28 “ 70 6615 Heavy-duty pincers 5.99 6.29 6.93 Cutting capability medium hard wire upto 0 mm 1.8 1.8 1.8 2.0 2.2 2.4 overall length mm 250 Water pump pliers"Cobra" with stepped fine adjustment H£k2S£l extra slim head 22.18 Hexagon across flats mm 34 Jaw capacity for pipes inch 1.1/4 Number of fine adjustment steps 19
