646 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.646

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 646 0646 ENG Lab2u

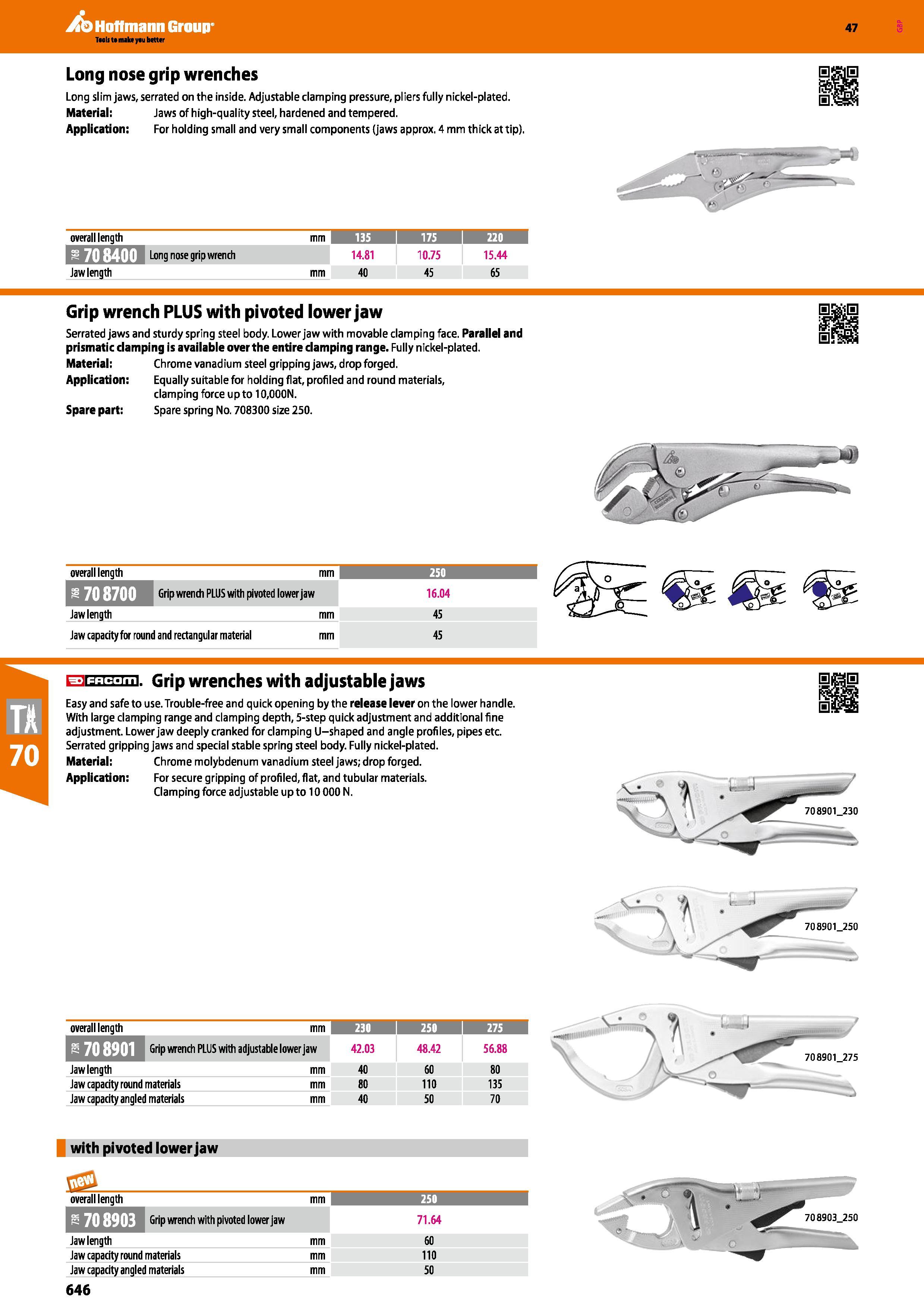

Hoffmann Group 47 Long nose grip wrenches Long slim jaws, serrated on the inside. Adjustable clamping pressure, pliers fully nickel-plated. Material: Jaws of high-quality steel, hardened and tempered. Application: For holding small and very small components (jaws approx. 4 mm thick at tip). overall length mm 135 I 175 220 i tjFi'Klf'I'M Long nosegripwrench 14.81 10.75 15.44 Jaw length mm 40 45 65 Grip wrench PLUS with pivoted lower jaw Serrated jaws and sturdy spring steel body. Lower jaw with movable clamping face. Parallel and prismatic clamping is available over the entire clamping range. Fully nickel-plated. Material: Chrome vanadium steel gripping jaws, drop forged. Application: Equally suitable for holding flat, profiled and round materials, clamping force upto 10,000N. Spare part: Spare spring No. 708300 size 250. overall length mm 250 i 70 8700 Grip wrench PLUS with pivoted lower jaw 16.04 Jaw length mm 45 Jaw capacityfor round and rectangular material mm 45 E3>j;L4-lnl. Grip wrenches with adjustable jaws Easy and safe to use. Trouble-free and quick opening by the release lever on the lower handle. With large clamping range and clamping depth, 5-step quick adjustment and additional fine adjustment. Lower jaw deeply cranked for clamping U-shaped and angle profiles, pipes etc. Serrated gripping jaws and special stable spring steel body. Fully nickel-plated. Material: Chrome molybdenum vanadium steel jaws; drop forged. Application: For secure gripping of profiled, flat, and tubular materials. Clamping force adjustable upto 10000 N. -\\ 708901_250 overall length mm 230 i 250 I 275 1 Grip wrench PLUS with adjustable lower jaw 42.03 48.42 56.88 Jaw length mm 40 60 80 Jaw capacity round materials mm 80 110 135 Jaw capacity angled materials mm 40 50 70 708901_275 with pivoted lower jaw overall length mm 250 1 Grip wrench with pivoted lower jaw 71.64 Jaw length mm 60 Jaw capacity round materials mm 110 Jaw capacity angled materials mm 50 646 708903_250
