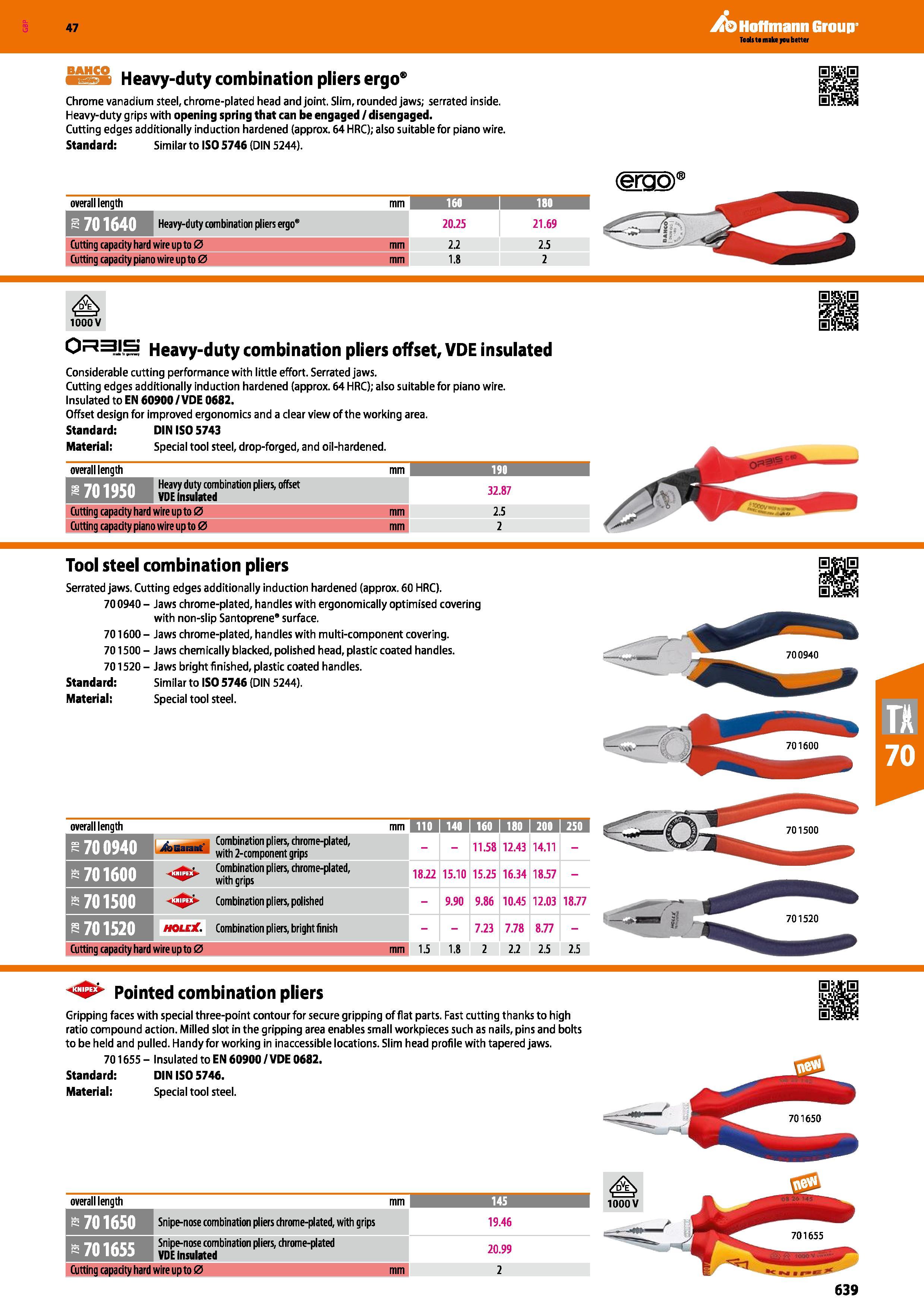

639 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.639

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 639 0639 ENG Lab2u

Hoffmann Group 47 Tools ta make you better BAHCO Heavy-duty combination pliers ergo8 Chrome vanadium steel, chrome-plated head and joint. Slim, rounded jaws; serrated inside. Heavy-duty grips with opening spring that can be engaged / disengaged. Cutting edges additionally induction hardened (approx. 64 HRC); also suitable for piano wire. Standard: Similar to ISO 5746 (DIN 5244). overall length mm 160 I 180 f Heavy-duty combination pliers ergo 20.25 21.69 Cutting capacity hard wire upto 0 mm 2.2 2.5 Cutting capacity piano wire up to 0 mm 1.8 2 1000V Of = is Heavy-duty combination pliers offset, VDE insulated Considerable cutting performance with little effort. Serrated jaws. Cutting edges additionally induction hardened (approx. 64 HRC); also suitable for piano wire. Insulated to EN 60900/VDE 0682. Offset design for improved ergonomics and a clear view of the working area. Standard: DIN ISO 5743 Material: Special tool steel, drop-forged, and oil-hardened. overall length mm 190 1 Heavy duty combination pliers, offset VDE insulated 32.87 Cutting capacity hard wire upto 0 mm 2.5 Cutting capacity piano wire upto 0 mm 2 Tool steel combination pliers Serrated jaws. Cutting edges additionally induction hardened (approx. 60 HRC). 70 0940 - Jaws chrome-plated, handles with ergonomically optimised covering with non-slip Santoprene” surface. 701600 - Jaws chrome-plated, handles with multi-component covering. 701500 - Jaws chemically blacked, polished head, plastic coated handles. 701520 - Jaws bright finished, plastic coated handles. Standard: Similar to ISO 5746 (DIN 5244). Material; Special tool steel. overall length 70 0940 J&paiant' Combination pliers, chrome-plated, with 2-component grips - 11.58 12.43 14.11 701600 Combination pliers, chrome-plated, with grips 18.22 15.10 15.25 16.34 18.57 - b701500 Combination pliers, polished - 9.90 9.86 10.45 12.03 18.77 HOLCX. Combination pliers, bright finish - 7.23 7.78 8.77 - Cutting capacity hard wire upto 0 mm 1 j 1.8 2 2.2 2.5 2.5 701520 Pointed combination pliers Gripping faces with special three-point contour for secure gripping of flat parts. Fast cutting thanks to high ratio compound action. Milled slot in the gripping area enables small workpieces such as nails, pins and bolts to be held and pulled. Handy for working in inaccessible locations. Slim head profile with tapered jaws. 701655 - Insulated to EN 60900/VDE 0682. Standard: DIN ISO 5746. Material: Special tool steel. overall length mm 145 B 701650 Snipe-nose combination pliers chrome-plated, with grips 19.46 b 701655 Snipe-nose combination pliers, chrome-plated VDE insulated 20.99 Cutting capacity hard wire upto 0 mm 2 701650 701655
