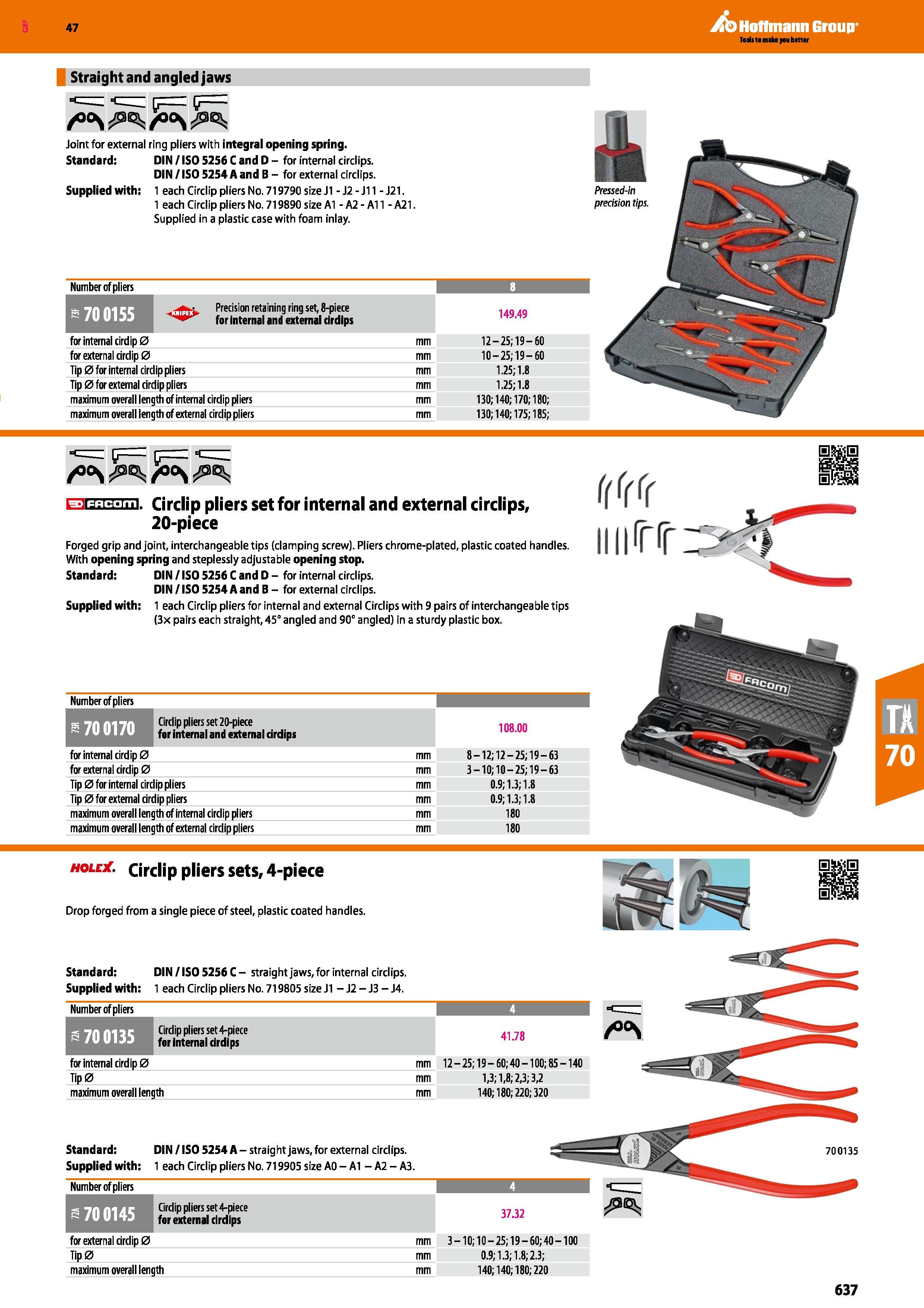

637 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.637

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 637 0637 ENG Lab2u

Hoffmann Group 47 Straight and angled jaws Joint for external ring pliers with integral opening spring. Standard: DIN / ISO 5256 C and D - for internal circlips. DIN /ISO 5254 A and B - for external circlips. Supplied with: 1 each Circlip pliers No. 719790 size J1-J2-J11-J21. 1 each Circlip pliers No. 719890 sizeAl -A2-A11-A21. Supplied in a plastic case with foam inlay. Number of pliers 8 Precision retaining ring set, 8-piece > for internal and external drdips 149.49 for internal cirdip 0 mm 12-25; 19-60 for external circlip 0 mm 10-25; 19-60 Tip 0 for internal circlip pliers mm 1.25;1.8 Tip 0 for external cirdip pliers mm 1.25;1.8 maximum overall length of internal cirdip pliers mm 130; 140; 170; 180; maximum overall length of external circlip pliers mm 130; 140; 175; 185; /o E3>j;L4-lnl. Circlip pliers set for internal and external circlips, 20-piece Forged grip and joint, interchangeable tips (clamping screw . Pliers chrome-plated, plastic coated handles. With opening spring and steplessly adjustable opening stop. Standard: DIN / ISO 5256 C and D - for internal circlips. DIN /ISO 5254 A and B - for external circlips. Supplied with: 1 each Circlip pliers for internal and external Circlips with 9 pairs of interchangeable tips (3x pairs each straight, 45° angled and 90° angled) in a sturdy plastic box. <((((( ii 11 fir Number of pliers Circlip pliers set 20-piece for internal and external drdips 108.00 for internal cirdip 0 mm 8 12; 12 25; 19 63 for external circlip 0 mm 3 10; 10 25; 19 63 Tip 0 for internal circlip pliers mm 0.9; 1.3; 1.8 Tip 0 for external cirdip pliers mm 0.9; 1.3; 1.8 maximum overall length of internal circlip pliers mm 180 maximum overall length of external circlip pliers mm 180 hole , circlip pliers sets, 4-piece Drop forged from a single piece of steel, plastic coated handles. Standard: DIN/ISO 5256 C- straight jaws, for internal circlips. Supplied with: 1 each Circlip pliers No. 719805 size J1 J2 J3 J4. Number of pliers 700135 Circlip pliers set 4-piece for internal drdips for internal cirdip 0 mm Tip 0 mm maximum overall length mm Standard: DIN / ISO 5254 A - straight jaws, for external circlips. Supplied with: 1 each Circlip pliers No. 719905 size A0 - A1 - A2 - A3. Number of pliers Cirdip pliers set 4-piece for external drdips for external circlip 0 Tip0 maximum overall length mm 3-10; 10-25;19-60; 40-100 0.9; 1.3; 1.8; 2.3; 140; 140; 180; 220 Pressed-in precision tips. 700135 637
