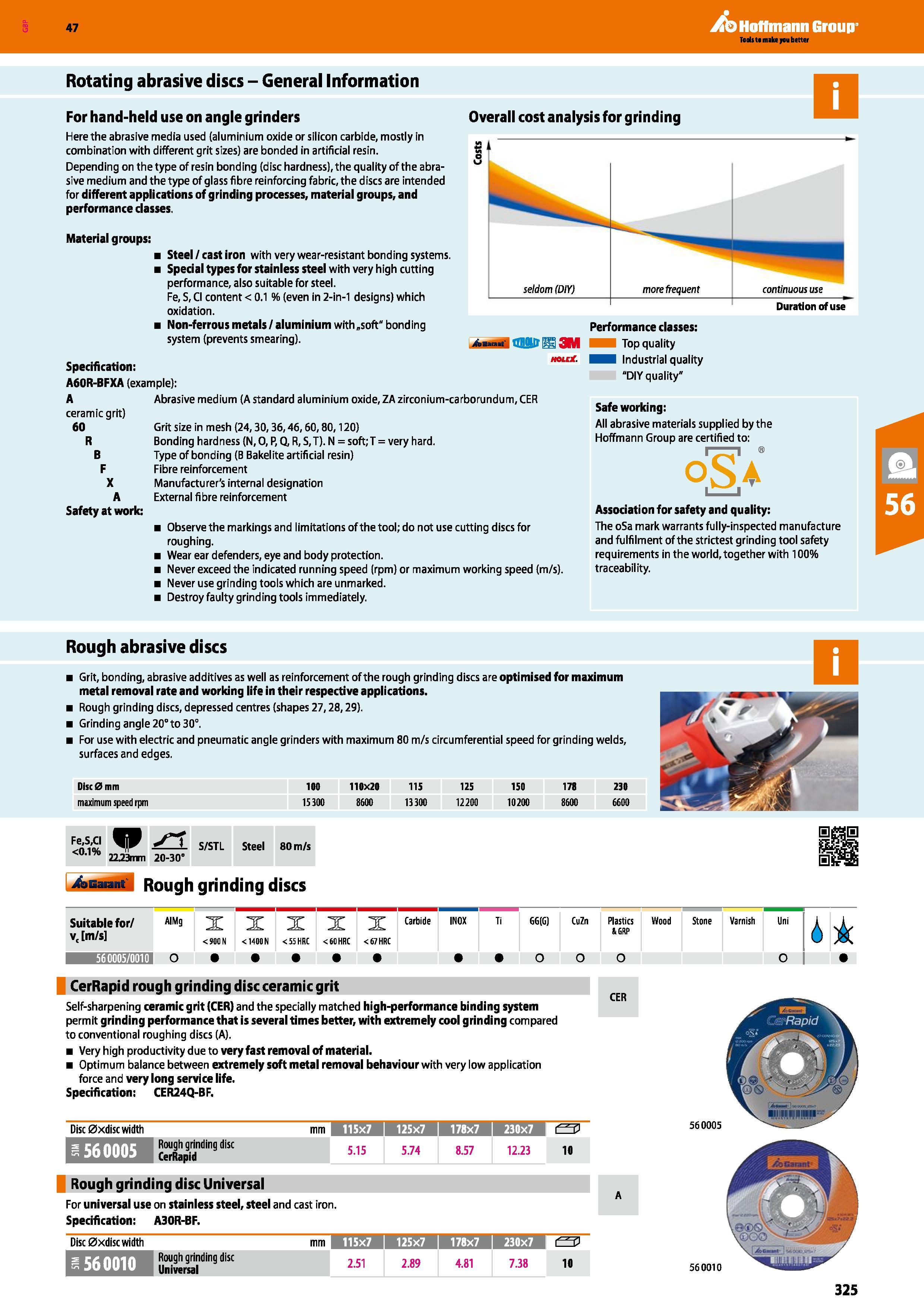

Hoffmann Group 47 Rotating abrasive discs - General Information For hand-held use on angle grinders Here the abrasive media used (aluminium oxide or silicon carbide, mostly in combination with different grit sizes) are bonded in artificial resin. Depending on the type of resin bonding (disc hardness), the quality of the abrasive medium and the type of glass fibre reinforcing fabric, the discs are intended for different applications of grinding processes, material groups, and performance classes. Material groups: Specification: A60R-BFXA (example): Overall cost analysis for grinding Steel / cast iron with very wear-resistant bonding systems. Special types for stainless steel with very high cutting performance, also suitable for steel. Fe, S, Cl content < 0.1 % (even in 2-in-1 designs) which oxidation. Non-ferrous metals /aluminium with „soft" bonding system (prevents smearing). AsBHi matt 3M HOLCX. A ceramic grit) 60 R B F X A Safety at work: Abrasive medium (A standard aluminium oxide, ZAzirconium-carborundum, CER Grit size in mesh (24,30,36,46,60,80,120) Bonding hard ness (N, O, P, Q, R, S, T). N = soft; T = very hard. Type of bonding (B Bakelite artificial resin) Fibre reinforcement Manufacturer's internal designation External fibre reinforcement Observe the markings and limitations of the tool; do not use cutting discs for roughing. Wear ear defenders, eye and body protection. Never exceed the indicated running speed (rpm) or maximum working speed (m/s). Never use grinding tools which are unmarked. Destroy faulty grinding tools immediately. Duration of use Performance classes: Top quality Industrial quality “DIY quality" Safe working: All abrasive materials supplied by the Hoffmann Group are certified to: QS Association for safety and quality: The oSa mark warrants fully-inspected manufacture and fulfilment of the strictest grinding tool safety requirements in the world, together with 100% traceability. Rough abrasive discs Grit, bonding, abrasive additives as well as reinforcement of the rough grinding discs are optimised for maximum metal removal rate and working life in their respective applications. Rough grinding discs, depressed centres (shapes 27,28,29). Grinding angle 20° to 30°. For use with electric and pneumatic angle grinders with maximum 80 m/s circumferential speed for grinding welds, surfaces and edges. Disc 0 mm 100 110X20 115 125 150 171 230 maximum speed rpm 15300 8600 13300 12200 10200 8600 6600 Fe,S,CI <0.1% 2123mm 20-30° S/STL Steel 80 m/s Rough grinding discs Suitable for/ v, m/s AIMg X < 90C N X < 1400 N X <55 HRC X < 60 HRC Carbide IN0X <67 HRC Ti 66(6) CuZn Plastics Wood Stone Varnish I GRP Uni iic i 560005/0010 O CerRapid rough grinding disc ceramic grit Self-sharpening ceramic grit (CER) and the specially matched high-performance binding system permit grinding performance that is several times better, with extremely cool grinding compared to conventional roughing discs (A). Very high productivity due to very fast removal of material. Optimum balance between extremely soft metal removal behaviour with very low application force and very long service life. Specification; CER24Q-BF. CER Disc 0xdisc width 33 115x7 125x7 178x7 230x7 O i 560005 Rough grinding disc CerRapid 5.15 5.74 8.57 12.23 10 560005 Rough grinding disc Universal For universal use on stainless steel, steel and cast iron. Specification: A30R-BF. Disc 0xdisc width mm 115x7 I 125x7 I 178x7 I 230x7 O i 56 Rough grinding disc Universal 2.51 2.89 4.81 7.38 10 560010 325
