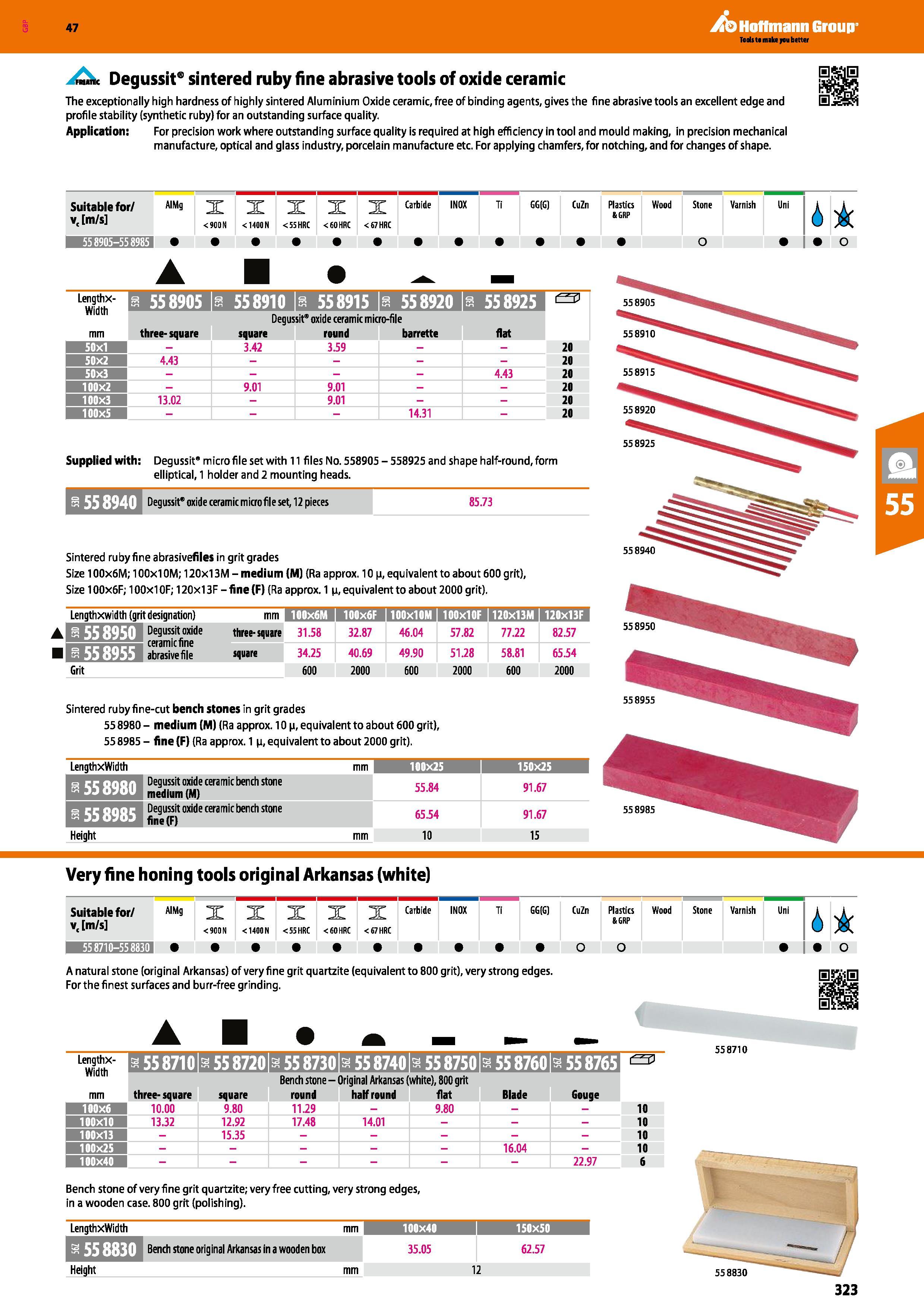

323 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.323

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 323 0323 ENG Lab2u

Hoffmann Group 47 c Degussit sintered ruby fine abrasive tools of oxide ceramic The exceptionally high hardness of highly sintered Aluminium Oxide ceramic, free of binding agents, gives the fine abrasive tools an excellent edge and profile stability (synthetic ruby) for an outstanding surface quality. Application: For precision work where outstanding surface quality is required at high efficiency in tool and mould making, in precision mechanical manufacture, optical and glass industry, porcelain manufacture etc. For applying chamfers, for notching, and for changes of shape. 0£ H 'SJQ _ Suitable for/ v, m/s 558905-558985 AIMg X X X X X Carbide IN0X <9C0N < 1400 N <55 HRC <60 HRC <67 HRC GG(G CuZn Plastics Wood Stone Varnish Uni &GRP Lengthx- width 558905 a 55 8925 O Degussit oxide ceramic micro-file mm three- square square round barrette flat 50x1 - 3.42 3.59 - I - 20 50x2 4.43 1 - 20 50x3 - 4.43 20 100x2 - 9.01 9.01 - 20 100x3 13.02 9.01 - 20 100x5 - 14.31 - 20 Supplied with: Degussit” micro file set with 11 files No. 558905 - 558925 and shape half-round, form elliptical, 1 holder and 2 mounting heads. 558940 Degussit’ oxide ceramic micro fie set, 12 pieces 85.73 Sintered ruby fine abrasivefiles in grit grades Size 100x6M; 100x10M; 120x13M - medium (M) (Ra approx. 10 (J, equivalent to about 600 grit), Size 100x6F; 100x1 OF; 120x13F - fine (F) (Ra approx. 1 n, equivalent to about 2000 grit). Lengthxwidth (grit designation) mm 100X6M 1 100X6F 1100x1OH 1 100x1 OF 1120x13M 1 120X13F 1 558950 Degussit oxide ceramic fine abrasive file three-square 31.58 32.87 46.04 57.82 77.22 82.57 558955 square 34.25 40.69 49.90 51.28 58.81 65.54 Grit 600 2000 600 2000 600 2000 Sintered ruby fine-cut bench stones in grit grades 55 8980 - medium (M) (Ra approx. 10 \x, equivalent to about 600 grit), 55 8985 - fine (F) (Ra approx. 1 n, equivalent to about 2000 grit). LengthxWidth mm 100x25 I 150x25 I Degussit oxide ceramic bench stone medium (M) 55.84 91.67 SHTfTfi Degussit oxide ceramic bench stone fine(F) 65.54 91.67 Height 10 558985 Very fine honing tools original Arkansas (white) Suitable for/ v, m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics Wood &GRP Stone Varnish Uni I 558710-558830 A natural stone (original Arkansas) of very fine grit quartzite (equivalent to 800 grit), very strong edges. For the finest surfaces and burr-free grinding. A m Lengthx- width mm 5 558710 558720 a 55 8730 s 55 8740 a 55 8750 a 55 8760 a 55 8765 o three-square square Bench stone - Original Arkansas (white), 800 grit round half round flat Blade Gouge 100X6 10.00 9.80 11.29 9.80 I - 10 100x10 13.32 12.92 17.48 14.01 10 100x13 - 15.35 10 100x25 - 16.04 - 10 100x40 - 22.97 6 O ss&s St 558710 Bench stone of very fine grit quartzite; very free cutting, very strong edges, in a wooden case. 800 grit (polishing). LengthxWidth mm 100x40 150x50 a 55 883 El Bench stone original Arkansas in a wooden box 35.05 62.57 Height 558830 323
