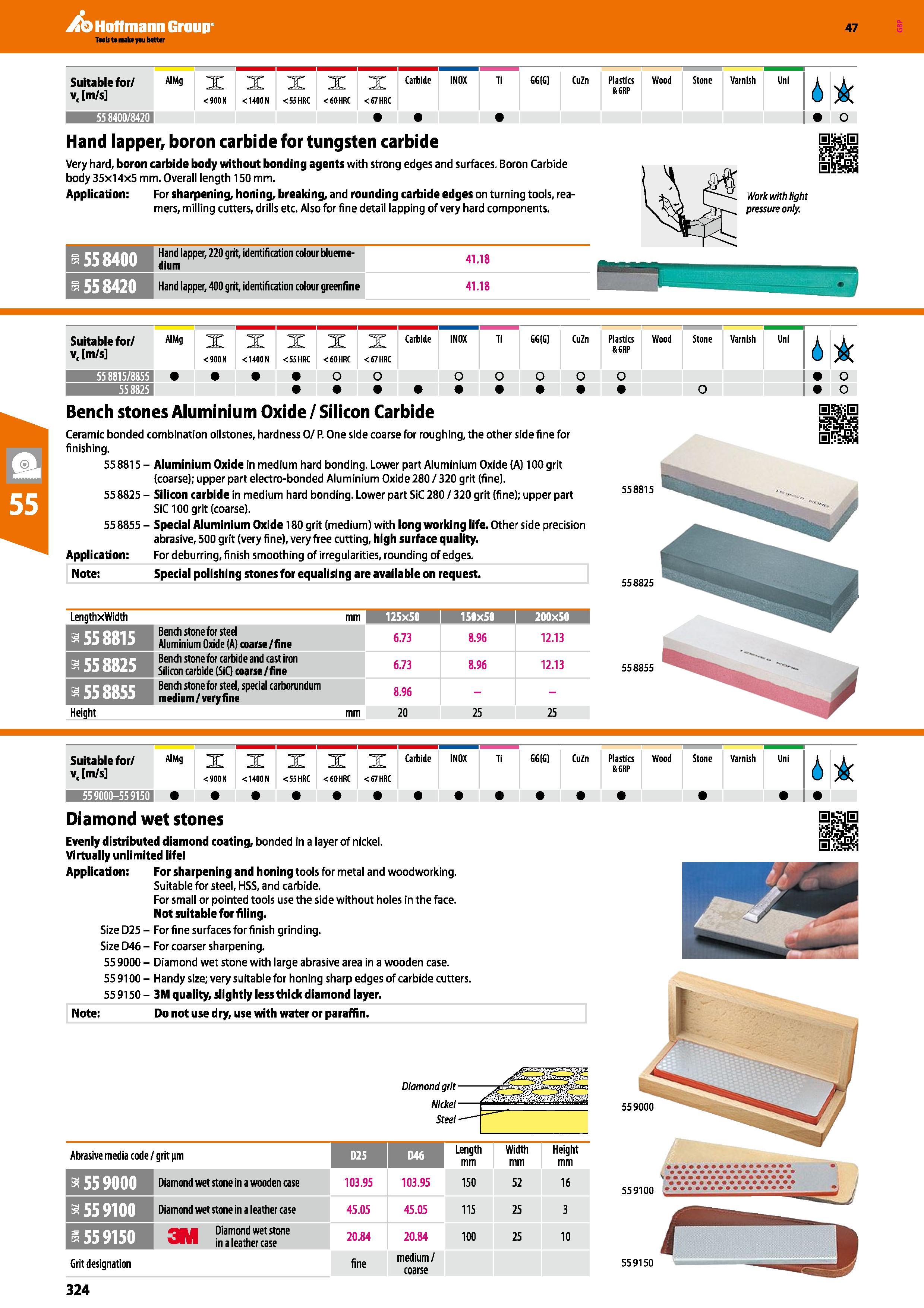

324 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.324

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 324 0324 ENG Lab2u

Hoffmann Group 47 Suitable for/ AIM9 vc m/s X <900N X <1400 N X <55 HRC X <60 HRC Carbide INOX <67 HRC Ti GG G) CuZn Plastics Wood Stone Varnish Uni &GRP 6 A 55 8400/8420 o Hand lapper, boron carbide for tungsten carbide Very hard, boron carbide body without bonding agents with strong edges and surfaces. Boron Carbide body 35x14x5 mm. Overall length 150 mm. Application: For sharpening, honing, breaking, and rounding carbide edges on turning tools, rea- mers, milling cutters, drills etc. Also for fine detail lapping of very hard components. 55 8400 Hand lapper, 220 grit, identification colour blueme-dium 41.18 558420 Hand lapper, 400 grit, identification colour greenfine 41.18 Suitable for/ vc m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide INOX Ti GG(G) CuZn Plastics Wood &GRP Stone Varnish Uni I 558815/8855 o O 558825 Bench stones Aluminium Oxide / Silicon Carbide Ceramic bonded combination oilstones, hardness 0/ P. One side coarse for roughing, the other side fine for finishing. 558815 - Aluminium Oxide in medium hard bonding. Lower part Aluminium Oxide (A) 100 grit (coarse); upper part electro-bonded Aluminium Oxide 280 / 320 grit (fine). 55 8825 - Silicon carbide in medium hard bonding. Lower part SiC 280 / 320 grit (fine); upper part SiC 100 grit (coarse). 55 8855 - Special Aluminium Oxide 180 grit (medium) with long working life. Other side precision abrasive, 500 grit (very fine), very free cutting, high surface quality. Application: For deburring, finish smoothing of irregularities, rounding of edges. Note: Special polishing stones for equalising are available on request. 558815 558825 LengthxWidth mm 125x50 150x50 200x50 a 558815 Bench stone for steel Aluminium Oxide (A) coarse /fine 6.73 8.96 12.13 a 55 8825 Bench stone for carbide and cast iron Silicon carbide (SiC) coarse /fine 6.73 8.96 12.13 a 55 8855 Bench stone for steel, special carborundum medium/very fine 8.96 Height mm 20 25 25 558855 Suitable for/ v, m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC Carbide IN0X <67 HRC Ti GG(G) CuZn Plastics Wood Stone Varnish ft GRP Uni 6 A 1 559000-559150 Diamond wet stones Evenly distributed diamond coating, bonded in a layer of nickel. Virtually unlimited life Application: For sharpening and honing tools for metal and woodworking. Suitable for steel, HSS, and carbide. For small or pointed tools use the side without holes in the face. Not suitable for filing. Size D25 - For fine surfaces for finish grinding. Size D46 - For coarser sharpening. 55 9000 - Diamond wet stone with large abrasive area in a wooden case. 55 9100 - Handy size; very suitable for honing sharp edges of carbide cutters. 55 9150 - 3M quality, slightly less thick diamond layer. Note: Do not use dry, use with water or paraffin. Diamond grit Abrasive media code / grit im D25 Length mm Width mm Height mm a 55 9000 Diamond wet stone in a wooden case 103.95 103.95 150 52 16 a 55 9100 Diamond wet stone in a leather case 45.05 45.05 115 25 3 a 55 9150 4M Diamond wet stone in a leather case 20.84 20.84 100 25 10 Grit designation fine medium/ coarse 559000 559100 559150 324
