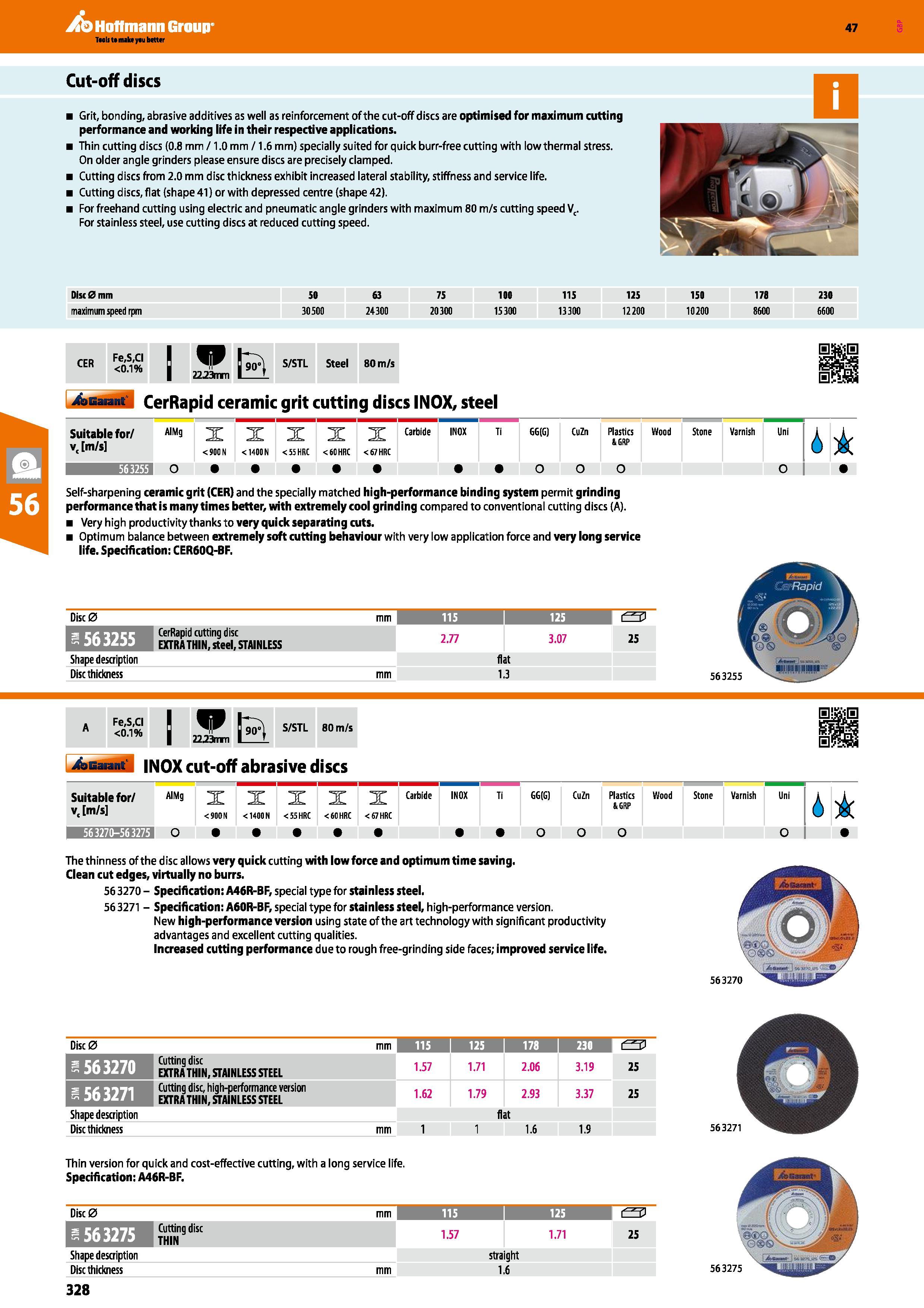

Hoffmann Group 47 Cut-off discs Grit, bonding, abrasive additives as well as reinforcement of the cut-off discs are optimised for maximum cutting performance and working life in their respective applications. Thin cutting discs (0.8 mm /1.0 mm /1.6 mm) specially suited for quick burr-free cutting with low thermal stress. On older angle grinders please ensure discs are precisely clamped. Cutting discs from 2.0 mm disc thickness exhibit increased lateral stability, stiffness and service life. Cutting discs, flat (shape 41) or with depressed centre (shape 42). For freehand cutting using electric and pneumatic angle grinders with maximum 80 m/s cutting speed Vc. For stainless steel, use cutting discs at reduced cutting speed. Disc 0 mm 50 63 75 100 115 125 150 178 230 maximum speed rpm 30500 24300 20300 15300 13300 12200 10200 8600 6600 CER Fe'S'CI <0.1% S/STL Steel 80 m/s Garant CerRapid ceramic grit cutting discs INOX, steel Suitable for/ v( m/s AIMg 3C < 90C N X < 1400 N X <55 HRC X < 60 HRC 3 Carbide INOX <67 HRC Ti GG(G) CuZn Plastics Wood Stone Varnish & GRP Uni 1 563255 O o O Self-sharpening ceramic grit (CER) and the specially matched high-performance binding system permit grinding performance that is many times better, with extremely cool grinding compared to conventional cutting discs (A). Very high productivity thanks to very quick separating cuts. Optimum balance between extremely soft cutting behaviour with very low application force and very long service life. Specification: CER60Q-BF. Disc 0 mm 115 I 125 SI i 563255 CerRapid cutting disc EXTRA THIN, steel, STAINLESS 2.77 3.07 25 Shape description flat Disc thickness mm 1.3 563255 Fe,S,CI <0.1% S/STL 80 m/s V to 22.23mm I ’ XbGarant NOX cut-off abrasive discs Suitable for/ v, m/s AIMg X < 900 N X <1400 N X <55 HRC X <60 HRC Carbide IN0X <67 HRC Ti GG(G) CuZn Plastics Wood Stone Varnish &GRP Uni 4 I 563270-563275 O o O The thinness of the disc allows very quick cutting with low force and optimum time saving. Clean cut edges, virtually no burrs. 56 3270 - Specification: A46R-BF, special type for stainless steel. 56 3271 - Specification: A60R-BF, special type for stainless steel, high-performance version. New high-performance version using state of the art technology with significant productivity advantages and excellent cutting qualities. Increased cutting performance due to rough free-grinding side faces; improved service life. 563270 Disc 0 33 115 i 125 178 230 5632 Cutting disc EXTRA THIN, STAINLESS STEEL 1.57 1.71 2.06 3.19 25 i 5632 71 Cutting disc, high-performance version EXTRA THIN, STAINLESS STEEL 1.62 1.79 2.93 3.37 25 Shape description flat Disc thickness mm 1 1 1.6 1.9 563271 Thin version for quick and cost-effective cutting, with a long service life. Specification: A46R-BF. Disc0 mm 115 1 125 5 563275 Cutting disc THIN 1.57 1.71 25 Shape description straight Disc thickness mm 1.6 563275 328
