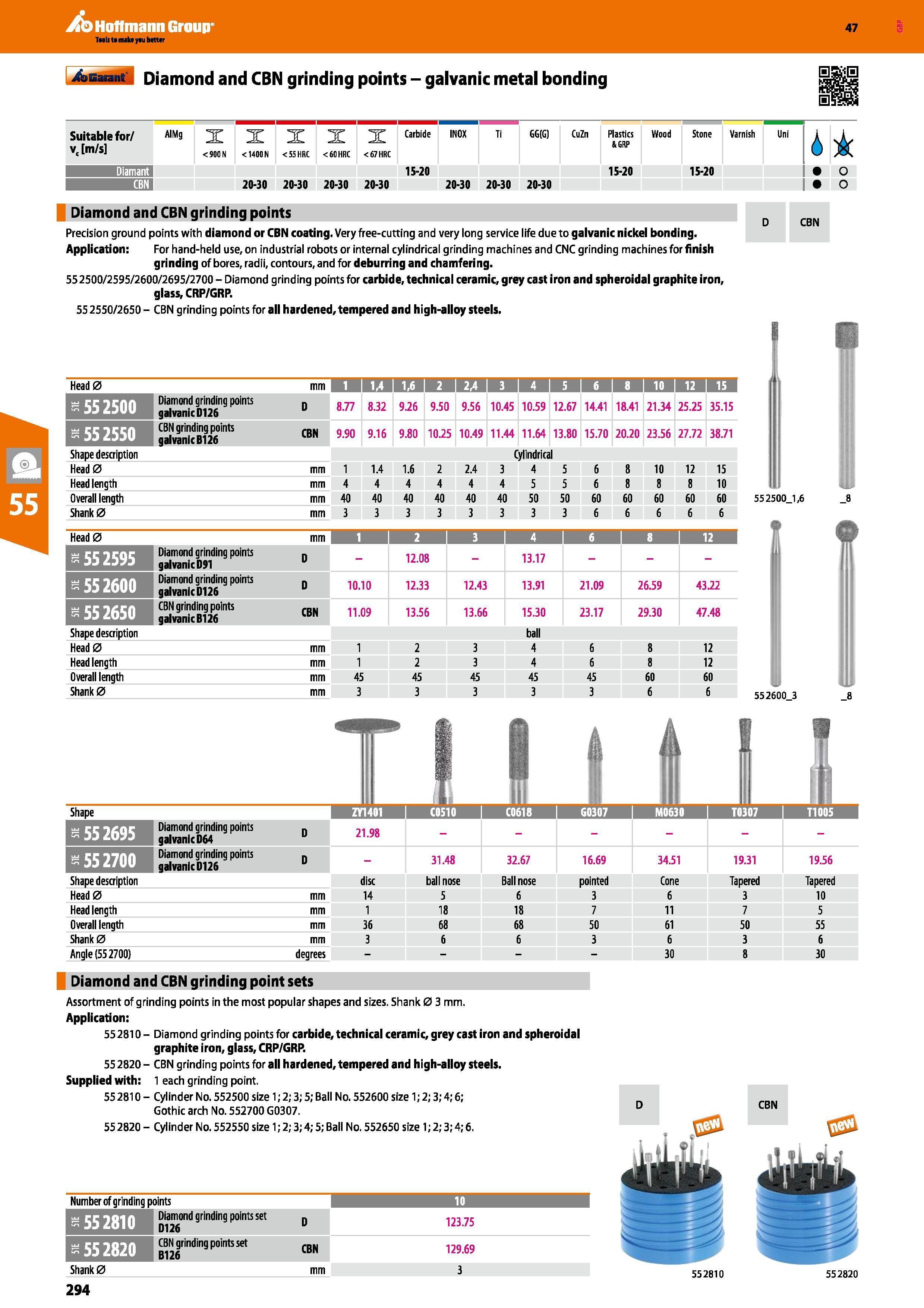

4asa m Diamond and CBN grinding points - galvanic metal bonding Suitable for/ AIMS v, m/s X <900 N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics Wood & GRP Stone Varnish Uni i Diamant 15-20 15-20 15-20 O CBN II 20-30 20-30 20-30 20-30 20-30 20-30 20-30 O Diamond and CBN grinding points Precision ground points with diamond or CBN coating. Very free-cutting and very long service life due to galvanic nickel bonding. Application: For hand-held use, on industrial robots or internal cylindrical grinding machines and CNC grinding machines for finish grinding of bores, radii, contours, and for deburring and chamfering. 552500/2595/2600/2695/2700 - Diamond grinding points for carbide, technical ceramic, grey cast iron and spheroidal graphite iron, glass, CRP/GRP. 55 2550/2650 - CBN grinding points for all hardened, tempered and high-alloy steels. CBN Head 0 -552500 Diamond grinding points galvanic D126 D 8.77 8.32 9.26 9.50 9.56 10.45 10.59 12.67 14.41 18.41 21.34 25.25 35.15 - 55 2550 CBN grinding points galvanic B126 CBN 9.90 9.16 9.80 10.25 10.49 11.44 11.64 13.80 15.70 20.20 23.56 27.72 38.71 Shape description Cylindrical Head0 mm 1 1.4 1.6 2 2.4 3 4 5 6 8 10 12 15 Head length mm 4 4 4 4 4 4 5 5 6 8 8 8 10 Overall length mm 40 40 40 40 40 40 50 50 60 60 60 60 60 Shank 0 mm 3 3 3 3 3 3 3 3 6 6 6 6 6 55 2500_1,6 Head0 mm 1 1 I 2 I 3 I 4 I I 12 s 55 2595 Diamond grinding points galvanic D91 D - 12.08 - 13.17 s 55 2600 Diamond grinding points galvanic D126 D 10.10 12.33 12.43 13.91 21.09 26.59 43.22 -552650 CBN grinding points galvanic B126 CBN 11.09 13.56 13.66 15.30 23.17 29.30 47.48 Shape description ball Head0 mm 1 2 3 4 6 8 12 Head length mm 1 2 3 4 6 8 12 Overall length mm 45 45 45 45 45 60 60 Shank 0 mm 3 3 3 3 3 6 6 55 2600_3 Shape ZY1401 i C0510 G0307 T0307 T1005 s 55 2695 Diamond grinding points galvanic D64 D 21.98 k 55 2700 Diamond grinding points galvanic D126 D - 31.48 32.67 16.69 34.51 19.31 19.56 Shape description disc ball nose Ball nose pointed Cone Tapered Tapered Head0 mm 14 5 6 3 6 3 10 Head length mm 1 18 18 7 11 7 5 Overall length mm 36 68 68 50 61 50 55 Shank 0 mm 3 6 6 3 6 3 6 Angle (55 2700) degrees - 30 8 30 Diamond and CBN grinding point sets Assortment of grinding points in the most popular shapes and sizes. Shank 0 3 mm. Application: 55 2810 - Diamond grinding points for carbide, technical ceramic, grey cast iron and spheroidal graphite iron, glass, CRP/GRP. 55 2820 - CBN grinding points for all hardened, tempered and high-alloy steels. Supplied with: 1 each grinding point. 55 2810 - Cylinder No. 552500 size 1; 2; 3; 5; Ball No. 552600 size 1; 2; 3; 4; 6; Gothic arch No. 552700 G0307. 55 2820 - Cylinder No. 552550 size 1; 2; 3; 4; 5; Ball No. 552650 size 1; 2; 3; 4; 6. Number of grinding points 10 1 55 2810 Diamond grinding points set D126 D 123.75 s 55 2820 CBN grinding points set B126 CBN 129.69 Shank 0 mm 3 294 552810 552820
