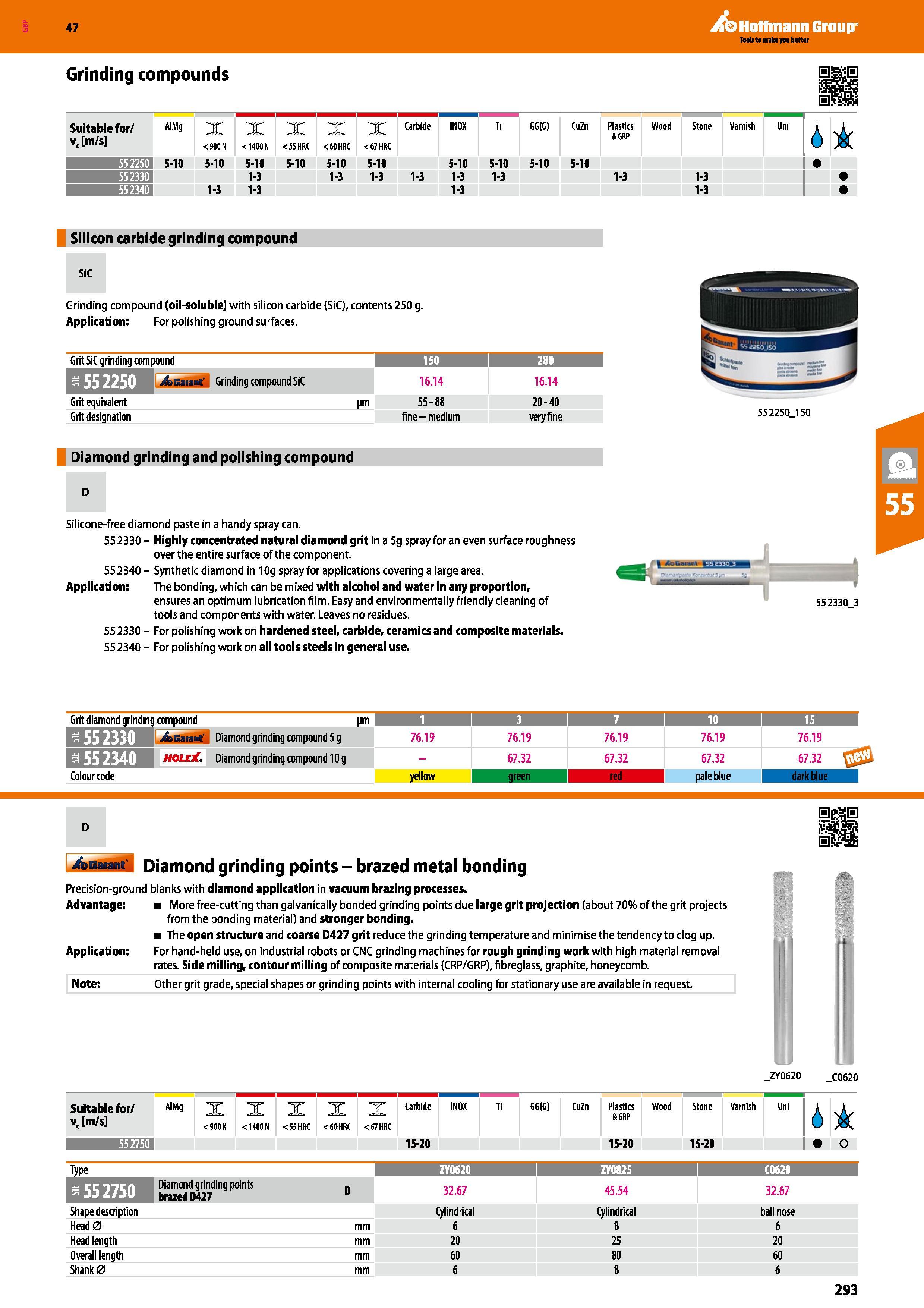

Hoffmann Group 47 Grinding compounds Suitable for/ v, m/s AIMg X < 900 N X < 1400 N X <55 HRC X < 60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni i 552250 5-10 5-10 5-10 5-10 5-10 5-10 5-10 5-10 5-10 5-10 552330 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 552340 1-3 1-3 1-3 1-3 Silicon carbide grinding compound SiC Grinding compound (oil-soluble) with silicon carbide (SiC), contents 250 g. Application: For polishing ground surfaces. Grit SiC grinding compound 150 280 i /acannt Grinding compound SiC 16.14 16.14 Grit equivalent im 55-88 20-40 Grit designation fine-medium very fine 552250 150 Diamond grinding and polishing compound Silicone-free diamond paste in a handy spray can. 55 2330 - Highly concentrated natural diamond grit in a 5g spray for an even surface roughness over the entire surface of the component. 552340- Synthetic diamond in 10g spray for applications covering a large area. Application: The bonding, which can be mixed with alcohol and water in any proportion, ensures an optimum lubrication film. Easy and environmentally friendly cleaning of tools and components with water. Leaves no residues. 55 2330 - For polishing work on hardened steel, carbide, ceramics and composite materials. 55 2340 - For polishing work on all tools steels in general use. 55 2330 3 Grit diamond grinding compound im I 3 I 7 I 10 I 15 ty.i'VZtflB jtbEaianf Diamondarindina comDound5a 76.19 76.19 76.19 76.19 76.19 holeX. Diamond grinding compound 10 g - 67.32 67.32 67.32 67.32 Colour code yellow green red pale blue dark blue isaiant Diamond grinding points - brazed metal bonding Precision-ground blanks with diamond application in vacuum brazing processes. Advantage: More free-cutting than galvanically bonded grinding points due large grit projection (about 70% of the grit projects from the bonding material) and stronger bonding. The open structure and coarse D427 grit reduce the grinding temperature and minimise the tendency to clog up. Application: For hand-held use, on industrial robots or CNC grinding machines for rough grinding work with high material removal rates. Side milling, contour milling of composite materials (CRP/GRP), fibreglass, graphite, honeycomb. Note: Other grit grade, special shapes or grinding points with internal cooling for stationary use are available in request. _ZY0620 _C0620 Suitable for/ AIM9 vc m/s X <900N X <1400 N X <55 HRC X <60 HRC Carbide IN0X <67 HRC Ti GG G) CuZn Plastics Wood Stone Varnish &GRP Uni 4 I 552750 15-20 15-20 15-20 o Type ZY0620 i ZY0825 C0620 s 55 2750 Diamond grinding points brazed D427 D 32.67 45.54 32.67 Shape description Cylindrical Cylindrical ball nose Head 0 mm 6 8 6 Head length mm 20 25 20 Overall length Shank 0 mm 60 6 60 6 293
