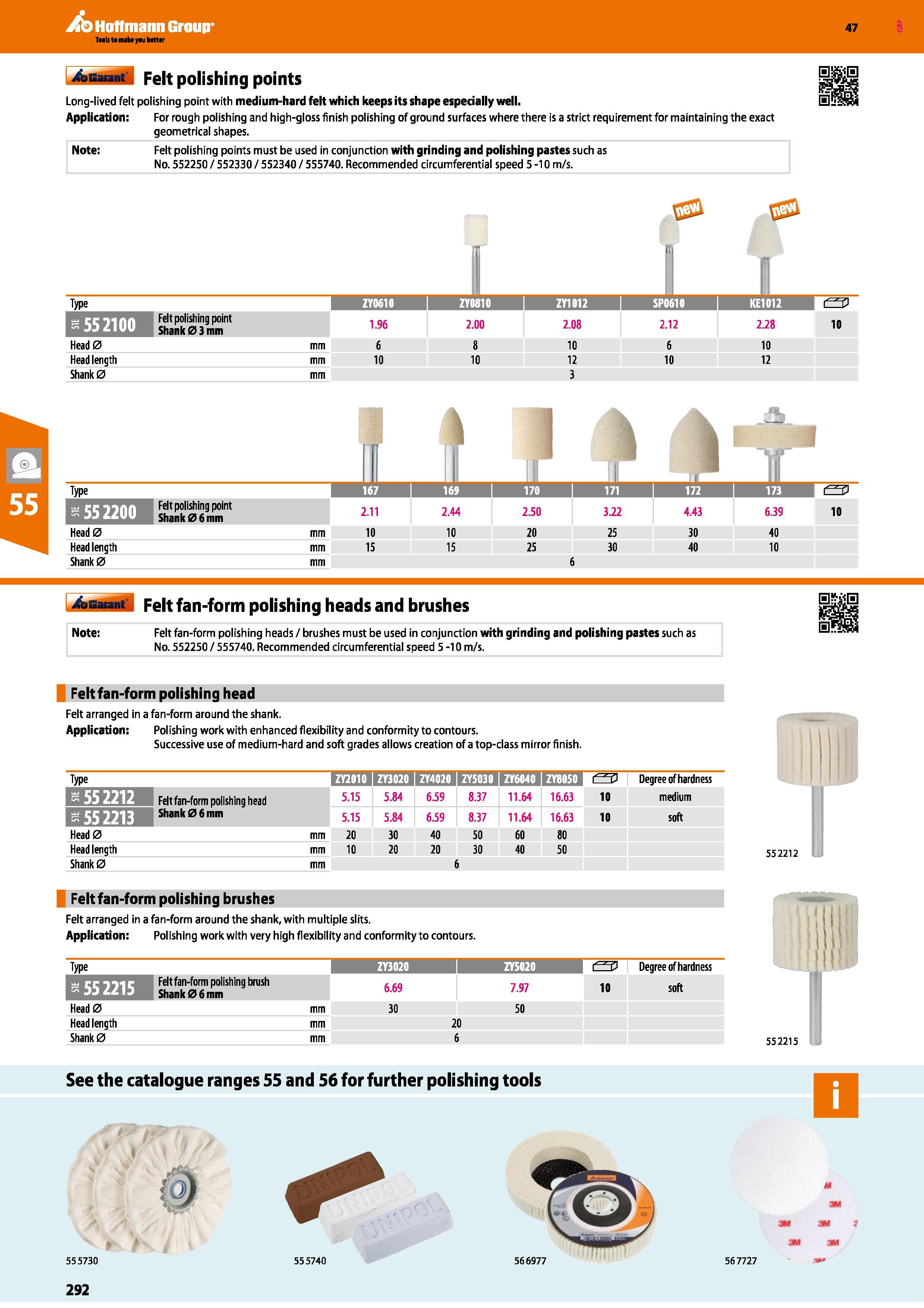

Hoffmann Group 47 Felt polishing points Long-lived felt polishing point with medium-hard felt which keeps its shape especially well. Application: For rough polishing and high-gloss finish polishing of ground surfaces where there is a strict requirement for maintaining the exact geometrical shapes. Note: Felt polishing points must be used in conjunction with grinding and polishing pastes such as No. 552250 / 552330 / 552340 / 555740. Recommended circumferential speed 5-10 m/s. Type ZY0610 i ZY0810 ZY1012 SP0610 I KE1012 o Felt polishing point BfiZUXfl Shank 03 mm 1.96 2.00 2.08 2.12 2.28 10 Head0 mm 6 8 10 6 10 Head length mm 10 10 12 10 12 Shank 0 mm 3 u Type 167 im i 170 1 171 1 172 1 173 - 55 2200 Felt polishing point Shank 06 mm 2.11 2.44 2.50 3.22 4.43 6.39 10 Head0 mm 10 10 20 25 30 40 Head length mm 15 15 25 30 40 10 Shank 0 mm 6 >Earant Felt fan-form polishing heads and brushes Note: Felt fan-form polishing heads / brushes must be used in conjunction with grinding and polishing pastes such as No. 552250/555740. Recommended circumferential speed 5 -10 m/s. Felt fan-form polishing head Felt arranged in a fan-form around the shank. Application: Polishing work with enhanced flexibility and conformity to contours. Successive use of medium-hard and soft grades allows creation of a top-class mirror finish. Type ZY2010 1 ZY3020 1 ZY4020 1 ZY5030 1 ZY6040 I ZY8050 I O Degree of hardness Fpltfan-fnrm rmlkhinn hpari 5.15 5.84 6.59 8.37 11.64 16.63 10 medium 1 - 55 2213 mmm 5.15 5.84 6.59 8.37 11.64 16.63 10 soft Head0 mm 20 30 40 50 60 80 Head length mm 10 20 20 30 40 50 Shank 0 mm 6 Felt fan-form polishing brushes Felt arranged in a fan-form around the shank, with multiple slits. Application: Polishing work with very high flexibility and conformity to contours. Type ZY3020 1 ZY5020 0 Degree of hardness Felt fan-form polishing brush Shank 06 mm 6.69 7.97 10 soft Head0 mm 30 50 Head length mm 20 Shank 0 mm 6 - II 552212 552215 See the catalogue ranges 55 and 56 for further polishing tools t/ At 3M 3M 3M 55 5730 555740 567727 566977 292
