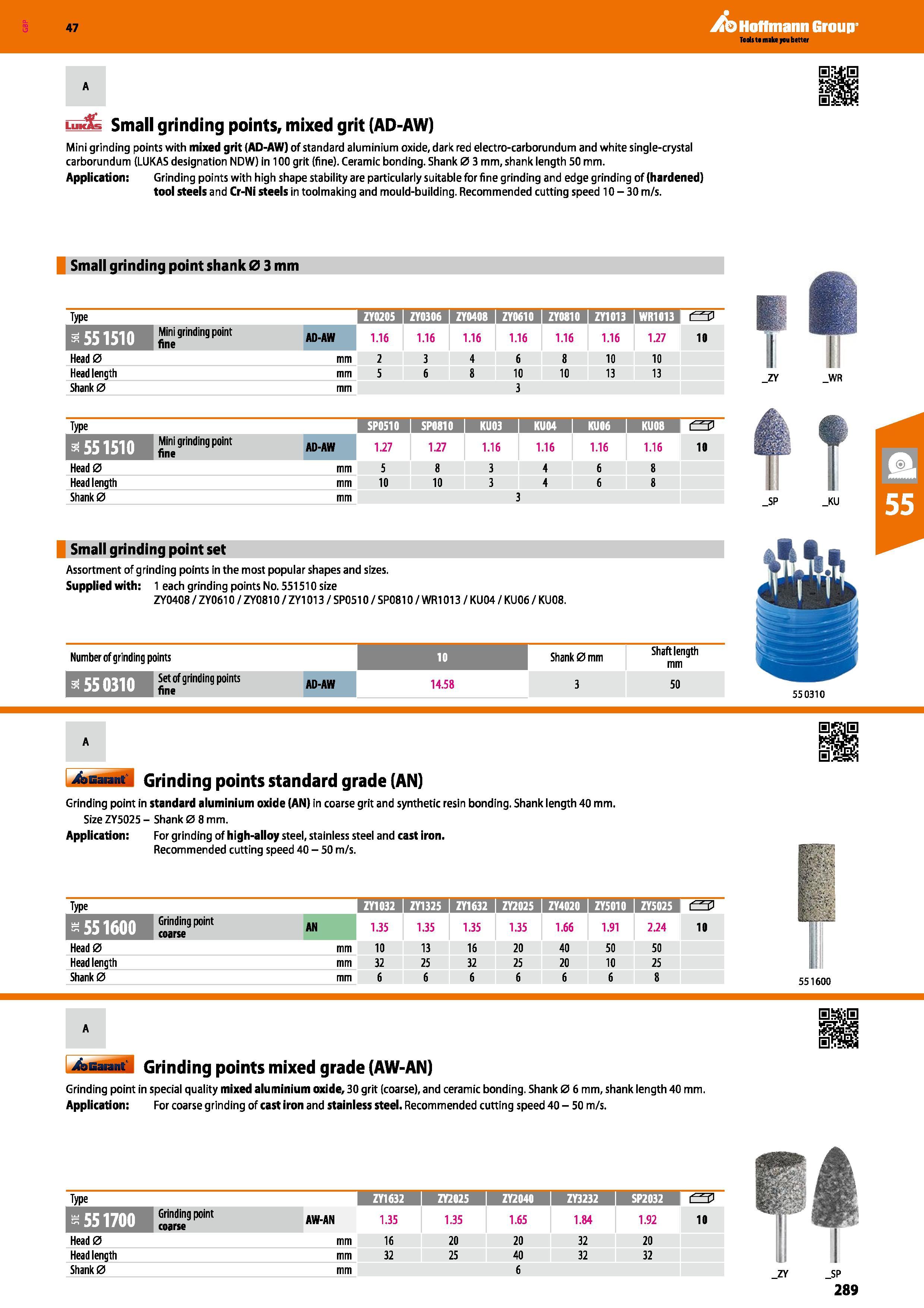

LuK i Small grinding points, mixed grit (AD-AW) Mini grinding points with mixed grit (AD-AW) of standard aluminium oxide, dark red electro-carborundum and white single-crystal carborundum (LUKAS designation NDW) in 100 grit (fine). Ceramic bonding. Shank 0 3 mm, shank length 50 mm. Application: Grinding points with high shape stability are particularly suitable for fine grinding and edge grinding of (hardened) tool steels and Cr-Ni steels in toolmaking and mould-building. Recommended cutting speed 10-30 m/s. Small grinding point shank 0 3 mm Type ZY0205 1 ZY0306 I ZY0408 I ZY0610 1 ZY0810 1 ZY1013 1 WR1013 1 O Mini grinding point AD-AW 1.16 1.16 1.16 1.16 1.16 1.16 1.27 10 Head0 mm 2 3 4 6 8 10 10 Head length mm 5 6 8 10 10 13 13 Shank 0 mm 3 _ZY _WR Type SP0510 I SP0810 1 KU03 KU04 Mini grinding point AD-AW 1.27 1.27 1.16 1.16 1.16 1.16 10 Head0 mm 5 8 3 4 6 8 Head length mm 10 10 3 4 6 8 Shank 0 mm 3 _SP _KU Small grinding point set Assortment of grinding points in the most popular shapes and sizes. Supplied with: 1 each grinding points No. 551510 size ZY0408 / ZY0610 / ZY0810 / ZY1013 / SP0510 / SP0810 / WR1013 / KU04 / KU06 / KU08. Numberof grinding points 10 Shank 0 mm Shaft length mm 55 0310 Set of grinding points fine AD-AW 14.58 3 50 550310 Grinding points standard grade (AN) Grinding point in standard aluminium oxide (AN) in coarse grit and synthetic resin bonding. Shank length 40 mm. Size ZY5025 - Shank 0 8 mm. Application: For grinding of high-alloy steel, stainless steel and cast iron. Recommended cutting speed 40 - 50 m/s. Type ZY1032 I ZY1325 I ZY1632 I ZY2025 1 ZY4020 1 ZY5010 1 ZY5025 aiiMiiiB nin9point AN 1.35 1.35 1.35 1.35 1.66 1.91 2.24 10 Head0 mm 10 13 16 20 40 50 50 Head length mm 32 25 32 25 20 10 25 Shank 0 mm 6 6 6 6 6 6 8 551600 i Grinding points mixed grade (AW-AN) Grinding point in special quality mixed aluminium oxide, 30 grit (coarse), and ceramic bonding. Shank 0 6 mm, shank length 40 mm. Application: For coarse grinding of cast iron and stainless steel. Recommended cutting speed 40 - 50 m/s. m Type ZY1632 ZY2025 I ZY2040 I ZY3232 H.HM1 “ngpoint AW-AN 1.35 1.35 1.65 1.84 1.92 10 Head0 mm 16 20 20 32 20 Head length mm 32 25 40 32 32 Shank 0 mm 6
