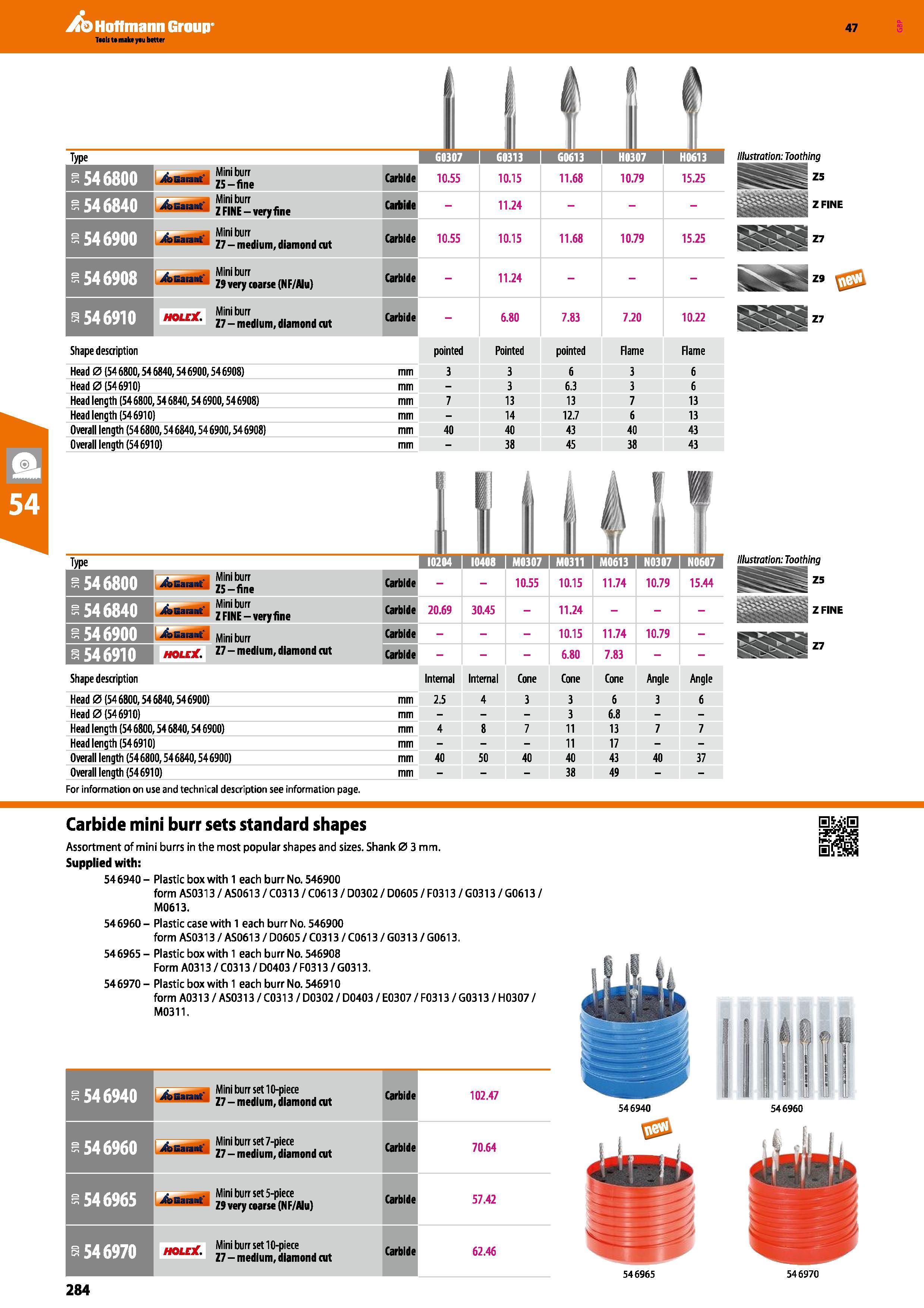

Hoffmann Group 47 Type G0307 i G0313 i G0613 546800 Mini burr OGaiant z5_fine Carbide 10.55 10.15 11.68 10.79 15.25 546840 j . Mini burr /sEaralrt ZFINE -veryfine Carbide - 11.24 546900 j Mini burr bEaral,t- Z7-medium, diamond cut Carbide 10.55 10.15 11.68 10.79 15.25 546908 . Mini burr A>Gannt_ 29 very coarse (NF/Alu) Carbide - 11.24 546910 umr Mini burr Z7-medium, diamond cut Carbide - 6.80 7.83 7.20 10.22 Shape description painted Pointed pointed Flame Flame Head 0 (546800,546840,546900,546908) mm 3 3 6 3 6 Head 0(546910) mm - 3 6.3 3 6 Head length (54 6800,54 6840,54 6900,54 6908) mm 7 13 13 7 13 Head length (546910) mm - 14 12.7 6 13 Overall length (546800,546840,546900,546908) mm 40 40 43 40 43 Overall length (546910) mm - 38 45 38 43 Illustration: Toothing Z5 ZFINE Type 10204 1 10408 1 M0307 1 M0311 1 M0613 1 N0307 1 N0607 WTW WWr j - Mini burr BjUHilliU “"t Z5 fine Carbide 10.55 10.15 11.74 10.79 15.44 Mini burr BiUiUU ABarairt ZF NE_veryfine Carbide 20.69 30.45 11.24 LxbEarant Mini burr Carbide - 10.15 11.74 10.79 holeX. Z7 - medium, diamond cut Carbide - 6.80 7.83 Shape description Internal Internal Cone Cone Cone Angle Angle Head 0 (546800,546840,546900) mm 2.5 4 3 3 6 3 6 Head 0(546910) mm - 3 6.8 Head length (54 6800,54 6840,54 6900) mm 4 8 7 11 13 7 7 Head length (546910) mm - 11 17 Overall length (546800,546840,546900) mm 40 50 40 40 43 40 37 Overall length (546910) mm - 38 49 Illustration: Toothing Z5 ZFINE For information on use and technical description see information page. Carbide mini burr sets standard shapes Assortment of mini burrs in the most popular shapes and sizes. Shank 0 3 mm. Supplied with: 546940 - Plastic box with 1 each burr No. 546900 form AS0313 / AS0613 / C0313 / C0613 / D0302 / D0605 / F0313 / G0313 / G0613 / M0613. 546960 - Plastic case with 1 each burr No. 546900 form AS0313 / AS0613 / D0605 / C0313 / C0613 / G0313 / G0613. 546965 - Plastic box with 1 each burr No. 546908 FormA0313/C0313/D0403/F0313/G0313. 546970- Plastic box with 1 each burr No. 546910 form A0313 / AS0313 / C0313 / D0302 / D0403 / E0307 / F0313 / G0313 / H0307 / M0311. 546940 . Mini burr set 10-piece A,E - Z7-medium, diamond cut Carbide 102.47 546960 j _ .Mini burr set 7-piece bEaI - Z7-medium, diamond cut Carbide 70.64 546965 _ Mini burr set 5-piece bBaral,t Z9 very coarse (NF/Alu) Carbide 57.42 546970 hoLrt Mini burr set 10-piece Z7-medium, diamond cut Carbide 62.46 546960 546965 546970 284
