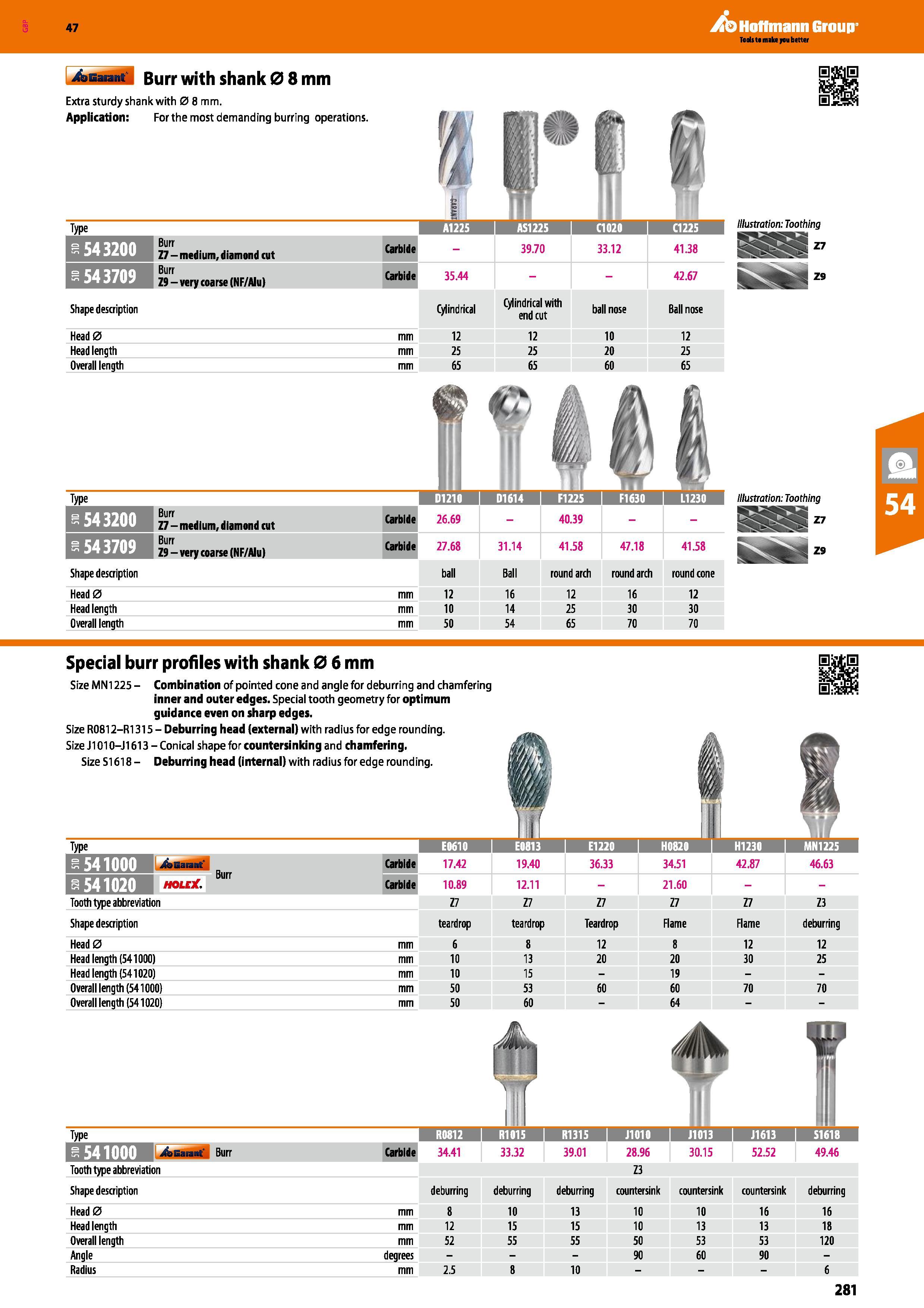

Hoffmann Group 47 A&b&mM Burr with shank 0 8 mm Extra sturdy shank with 0 8 mm. Application: For the most demanding burring operations. Type A1225 j AS1225 j Cl 020 I Cl225 -543200 Burr Z7 - medium, diamond cut Carbide - 39.70 33.12 41.38 -543709 Burr Z9 - very coarse (NF/Alu) Carbide 35.44 42.67 Shape description Cylindrical Cylindrical with end cut ball nose Ball nose Head 0 mm 12 12 10 12 Head length mm 25 25 20 25 Overall length mm 65 65 60 65 Illustration: Toothing Z7 Type D1210 D1614 FI225 FI630 LI230 s 543200 Z7-medium, diamond cut Carbide 26.69 - 40.39 -543709 Burr r„uij. Z9 -very coarse (NF/Alu) larBIM 27.68 31.14 41.58 47.18 41.58 Shape description ball Ball round arch round arch round cone Head0 mm 12 16 12 16 12 Head length mm 10 14 25 30 30 Overall length mm 50 54 65 70 70 Illustration: Toothing Z7 Special burr profiles with shank 0 6 mm Size MN1225 - Combination of pointed cone and angle for deburring and chamfering inner and outer edges. Special tooth geometry for optimum guidance even on sharp edges. Size R0812-R1315 - Deburring head (external) with radius for edge rounding. Size J1010-J1613 -Conical shape for countersinking and chamfering. Size SI 618 - Deburring head (internal) with radius for edge rounding. Type E0610 E0813 El220 I H0820 HI230 i MN1225 -541000 Carbide 17.42 19.40 36.33 34.51 42.87 46.63 541020 m Carbide 10.89 12.11 - 21.60 Tooth type abbreviation Z7 Z7 Z7 Z7 Z7 Z3 Shape description teardrop teardrop Teardrop Flame Flame deburring Head0 mm 6 8 12 8 12 12 Head length (541000) mm 10 13 20 20 30 25 Head length (541020) mm 10 15 - 19 Overall length (541000) mm 50 53 60 60 70 70 Overall length (541020) mm 50 60 - 64 f Type 1 R0812 R1015 I R1315 i J1010 J1013 J1613 51618 Carbide 34.41 33.32 39.01 28.96 30.15 52.52 49.46 Tooth type abbreviation Z3 Shape description deburring deburring deburring countersink countersink countersink deburring Head0 mm 8 10 13 10 10 16 16 Head length mm 12 15 15 10 13 13 18 Overall length mm 52 55 55 50 53 53 120 Angle degrees 90 60 90 - Radius mm 2.5 8 10 6 281
